Introduction

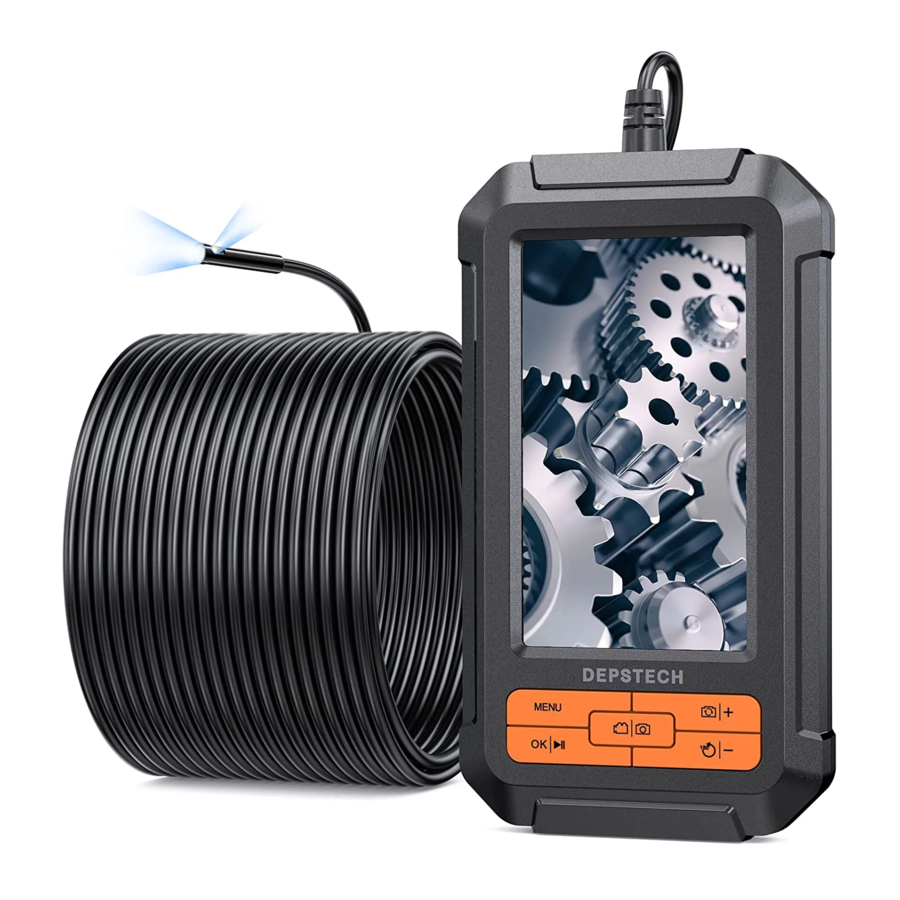

DEPSTECH® DS350 industrial endoscope was featured as a cost efficient industrial endoscope with 4.3" digital screen, which was invented to help car maintenance or pipeline repairing. We hope that you can use this efficient tool to enable you to finish the job more rapidly and help you discover the delights of miniature worlds.

Battery

Please do not try to change the built-in battery yourself, it may raise the risks of leading the battery overheat or get people harmed. For better battery life spans, we would recommend you charge the device every 3~6 months. (No matter uses it or not)

Operation and storage conditions

Please keep the tools out of fire source, especially keep it away from temperature higher than 158℉ (70℃) - or lower than -50℉ (-10℃).
Be cautious the required working temperature should between 32~113℉ (0~45℃). Please keep it in dry, clean area, free from oil, water, or chemical liquid. Those measures will help the device maintain longer lifes pans, also it will do great help to keep the dangerous situation far away.

• The Child can only operate this device with the guidance of adults, please do not let them operate this device alone.

Features

1. Power Button
   Hold this button for 2s to power on/off the endoscope.

2. " " Button
   Confirm choice/Long press to enter the album or exit the album/Click to play or pause;

3. "" Button
   1. Time adjustment
   2. In the menu mode, select the next directory
   3. Click to dim the LED lightness
   4. Press 2 seconds to rotate the image 180°

4. " " Button
   1. Time adjustment
   2. In the menu mode, select the previous directory
   3. Click to brighten the LED lightness
   4. Press 2 seconds to change the lens

5. "" Button
   Hold this button to start video record, single press to take a photo/end the video record.

6. Menu Button
   Click to enter the menu for more settings.

7. TF Card Slot
   Support up to 32G TF card. (The TF card has been inserted into the machine, please format it for the first time of usage)

8. Charging Status LED indicator
   Red LED indicator flash: Charging status
   Red LED indicator stay on: Charging finished

9. Reset Button
   Short click the reset button with the reset pin to shut down the device.

10. Micro-USB Charging Port
    Charge the endoscope via Micro-USB cable.

Description of Product Functions

Photo/Video:
Take photos by pressing button, long press to start video recording, single press to end video recording.

View Photos:
Long press in preview mode to enter the photo album, and press / to view photos. Long press again to exit the photo album.

Delete Photos:
When viewing photos, press to choose to delete the current photo or delete all photos, and press again to return to the album.

Screen Rotation:
Long press the rotation button, and the image will rotate 180°.

Lens Switching (only applicable to double-lens products):
Long press the button to switch among main lens, side lens and dual-lens.

Lens LED Brightness Adjustment:
Click the key to lower the brightness, and click the key to increase the brightness.

Copy photo and video files to computer
The device does not support USB data cable to transfer data, you can use a TF card reader to copy data directly.

Introduction to the Menu Interface

Enter the MENU interface: Press to enter the menu interface, press/ to select options, and then press to enter the option interface. Press again to exit.

1. Resolution Setting: Enter the resolution interface, press / to select the resolution, and then press to confirm;
2. Language Setting: Enter the language setting interface, press / to select the language, and then press to confirm;
3. Auto OFF Setting: Enter the Auto OFF setting interface, press / to select the time, and then press to confirm;
4. TF Card Formatting: Enter the formatting interface, choose whether to format, and then press to confirm;
5. System Reset: Enter the System Reset Interface, choose whether to restore the factory settings, and then press to confirm;
6. Time Setting: Enter the time setting interface, press to select the year, month, day, minute and second to be adjusted, press / to adjust the time, and press to exit after setting;
7. Storage Space: Check the memory card capacity and the remaining memory;
8. Software Version: Check the firmware version number of this product.

Specifications

FAQ

Q1: The image quality wasn't that good as advertised?
A1: Please adjust the length between the camera and the object that you're observing into the focal range. The focal range should be 1.18"~3.15" for single camera version, and 1.18"~3.15"/0.79"~2.36" in for dual camera version. Besides, it's essential to adjust the brightness of your endoscope for the best image quality. It will do a great help if you wipe the lens of the camera regularly after used.

Q2: The endoscope was failing to turn on?
A2: It might due to low battery status, especially in cold area. To release the low battery state you've to fully charge the endoscope. You can charge the endoscope for 4~5 H and try to turn it on again.

Q3: The endoscope can not take a picture or record a video?
A3: First please make sure that the TF card has been inserted into the machine or not. Then make sure that you've formatted the TF card at the first use.

You can follow the steps below:

1. Short press menu
2. Short press " " button to remove the cursor down
3. Find and choose "Formate", then choose "OK".
