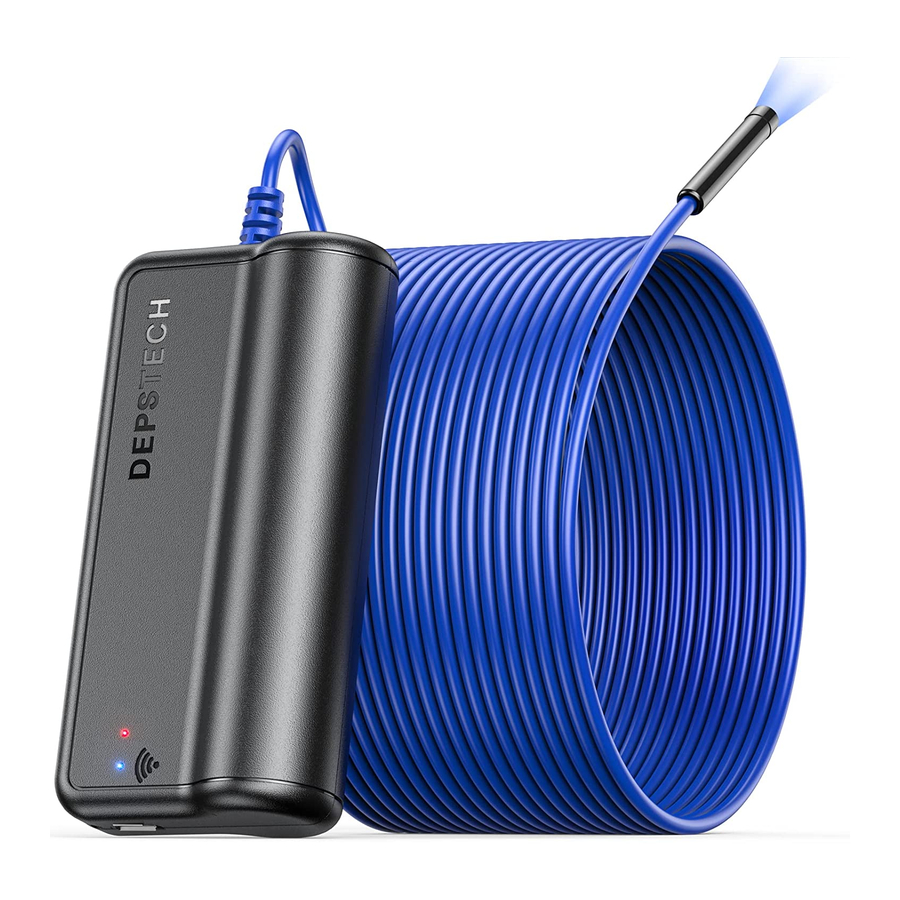

Depstech WF020X, WF025X, WF028X - FHD Inspection Camera Manual

Product Structure

1. Power Button ON / OFF
2. Camera LEDs dimmer:
   Roll to control the brightness of the camera LEDs
3. WiFi signal indicator:
   Blue LED flash: Ready to pair
   Blue LED stay on: Connect successfully
4. Power indicator:
   Red LED stay on: Power system work normally
   Red LED flash: Low battery
   Green LED stay on: Charging status
5. Reset Button:
   Long press the reset button for 7S,the product will restore to factory settings.
6. Micro-USB charging port

Step 1- APP Downloading

iOS & Android

For iOS user (iOS 9+), search and download "DEPSTECH-View" app from APP Store.

For Android user (Android 7.0+), search and download "DEPSTECH-View" from Google Play Store.

Register
After downloading the APP, it is necessary to register a personal account before using.

Register and log in
Fill in email - fill in password - view agreement - click register. Please log in after successful registration. (Note: Please keep your mobile phone connected with network during registration)

Step 2- Power on

Push the power button to "ON" to open the endoscope.

Note: Before using the product for the first time, please fully charge it.

Step 3- WiFi Connection

A. Turn to the WiFi setting on your smart devices (Android / iOS phone), search for the factory setting WiFi SSID: DEPSTECH_****** or Jetion_******

B. Then choose and fill the factory setting WiFi password: 12345678

Note: "******" will be a series of random numbers& letters, and it may take several seconds to wait for the WiFi signal and the wifi connection. Please be patient for the process.

Step 4- Return to the APP

Note:
If the endoscope and your smart device connected successfully, you can receive the real-time images of the endoscope via the DEPSTECH-View APP, and the blue LED of the endoscope Wi-Fi transmiter will stay on.

APP Introduction

1. Rotate Button: Click to rotate the image 90°
2. Photo Shoot Button: Click to take a photo
3. Record Button: Click to start / end a video record
4. Gallery Button: Click to check the photos / videos
5. Setting Button: Click to enter the setting
6. Camera Switch Button: Click to switch main / side camera

Buttons Hidden Function:
Click the screen to hide / wake the buttons.

Zoom in / Zoom out Function:
Two fingers expand outwards to zoom in the real- time image.
Two fingers get close to zoom out the real- time image.

APP Introduction (For WiFi SSID: DEPSTECH_******)

Resolution: Click to choose different resolution.
WiFi Setting: Click to modify the WiFi SSID and Password. After setup please remember to click reset button.
Channel Switch: Click to switch 2.4G&5G WiFi signal.

APP Introduction (For WiFi SSID: Jetion_******)

You can reset the WiFi name / password once you have got the smart device connected with the endoscope.

Modify WiFi name: Click it to enter WiFi name
Modify password: Click it to enter WiFi password
Modify Resolution: Click it to switch the resolution
Reboot device:Shut down the device
After setup, please remember to click "Modify WiFi name / password / resolution" button.

Note:
We wouldn't recommend our customers to modify the Wi-Fi SSID/Password.
Which may do disadvantages for next usage. (Once you've forgotten the modified Wi-Fi SSID / Password) So you'd better write down the modified Wi-Fi SSID / Password if you have to do it.

Charging Guide

1. Connect the device to the DC 5V USB adapter for charging;
2. During the charging process, the green LED indicator light will be steady on.
3. When the device is fully charged, the green LED indicator will go out.

Guide for Accessories Installation

Turn counterclockwise-remove accessories

Turn clockwise-tighten accessories

Specification

FAQ& Help

Q1: How to connect WiFi endoscope to "DEPSTECH-View"?

A1:

1. Make sure the device is fully charged, long press the power button or press the switch to turn on the device. The WiFi module will turn on about 15 seconds after turning on the device. You can observe whether the WiFi signal light (blue light) of the device is always on. If it is on, it indicates that the WiFi module is ready;
2. Enter the phone's "Settings" - "WiFi Connection" to find the WiFi name printed on the device; select and connect, the default password is "12345678". If the phone prompts "Internet may be unavailable", please ignore the prompt and select "Keep Connected";
3. Open this App and get real-time images of the endoscope. While the App is acquiring the device image, the WiFi signal light will flash. If the image cannot be obtained during the flashing process, please contact the seller of the device.

Q2: The mobile phone cannot get the real-time image of the WiFi endoscope or the screen went black?

A2: Please follow the steps below to solve the problems.

1. Please try to restart the device after fully charged.
2. There is a reset hole near the charging port of the device. Please use reset pin to insert the reset hole. Please make sure that you've reached the reset button with the reset pin, and the device will turn on again.
3. Please turn off the "WiFi" function of other mobile phones that have been connected to this WiFi endoscope at home.
4. Turn on the phone in airplane mode, search for the WiFi signal identified on the device body, select and connect it, the default password is "12345678";
5. It should be noted that during the installation of this App, you need to authorize the "photo/media content" and "document storage" permissions of this App, otherwise some functions such as taking pictures/viewing albums may be hindered;
6. For iOS users (especially iOS 14), please enter the "Settings" interface of the phone, find and click "DEPSTECH-View", then turn on the "Cellular Data" and "Native network"option, otherwise it may not be able to establish communication with the device.

Q3: Can search for the Wi-Fi signal, but couldn't get the connection?

A3:

1. The Wi-Fi connection may be failing, you've to forget the network and reconnect it. Also, you can change to an some place without Wi-Fi distribute and retry the connection.
2. For Android user, at the first time of connecting to the Wi-Fi signal, the phone may tip "Internet may not be available", please click "Keep Wi-Fi connection" option.
3. For iOS user, please make sure that you've turn on the "Cellular data" and "Native network" option in the settings - "DEPSTECH-View".
4. For user who used to modified the Wi-Fi-SSID / password before, please use a reset pin and plug it into the reset port of the endoscope. You can refer to lable on the bottom to the default Wi-Fi SSID / Password and reconnect it.

Q4: When the product is in use, it flickers, freezes or disconnects?

A4:

1. Please make sure that the Wi-Fi endoscope is within 5 meters of your mobile phone and there is no obstacle between them.
2. When using this Wi-Fi endoscope, please stay away from other hotspots with strong Wi-Fi signal, or turn off other hotspots.
3. Check whether the power of the device is normal and whether the power indicator is flashing; if the power is insufficient, please fully charge it before use;

Note:

If the malfunction cannot be solved after the above operations, please contact us via email support@depstech.com
