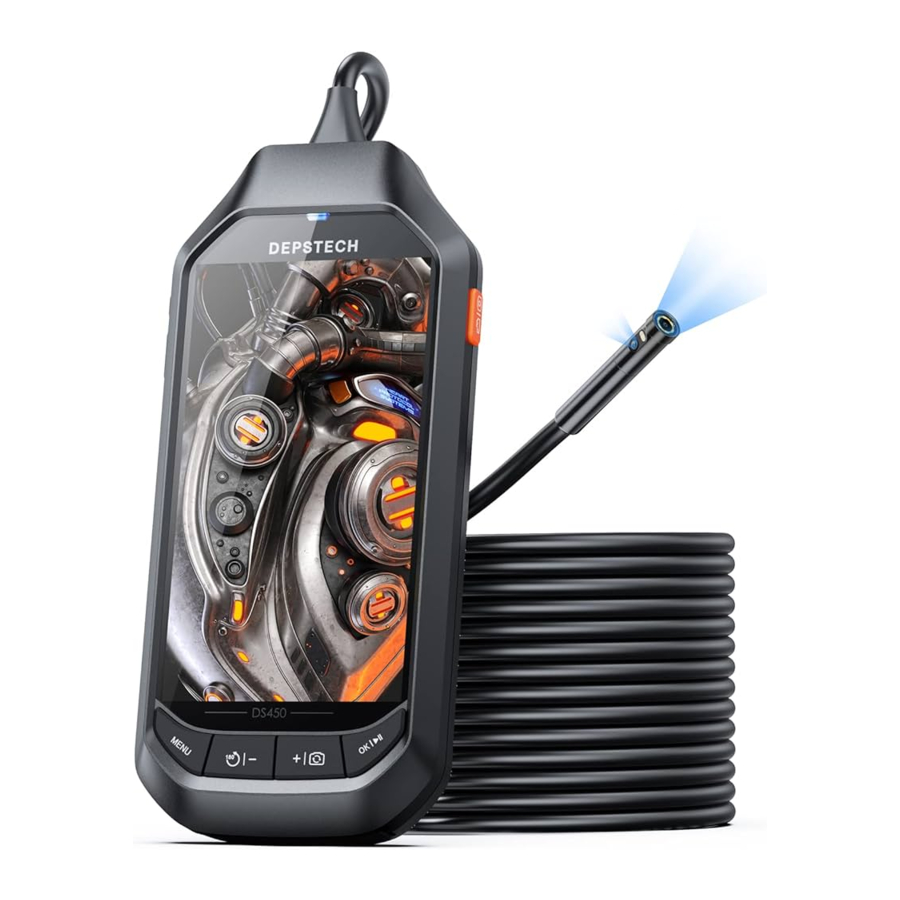

Depstech DS450 - Industrial Endoscope Manual

Quick Overview of Your New Endoscope

For more settings, enter the menu with Button
To adjust the lights of the camera, move the cursor in the menu, or switch to previous/ next files in the album, please Click the or Button
To confirm choices in the menu, please Click the Button
To open/ close the album (required TF card inside), please Hold the Button
To rotate the image 180°, please Hold the Button To switch the main / side camera, please Hold the Button
(Note: For Dual Camera Version Only)

TF Card Slot:	Support up to 32G TF card (Note: Please format the TF card at the first use.)
Reset Slot:	Click to reset your device.
Micro USB Charging Slot:	Plug & charge your device with the Micro USB cable.
USB Camera Slot:	Plug the USB connector of the camera into this port.

*The package enclosed with TF card/ Reset pin/ Micro USB charging cable/ 3*Efficiency tools like magnet, hook and side mirror (for single camera version only) / EVA storage bag (EVA storage bag only for the limited version)

FAQ

Q1: Can I view the files of the endoscope by connecting the screen display to the PC/laptop?
A1: Sure you can. Please follow the steps below:

1. Open the screen display part of the "DS450".
2. Connect the screen display with your PC/laptop via the USB-A to micro USB data cable. (Note: Make sure you're using the data cable enclosed in the package, and make sure that the TF card has been inserted)
3. Go into "Menu" - "USB mode" - choose "USB Card Reader", then you can check the files in your PC/laptop.

Q2: Can it be used for inspection when charging? Will it work normally?
A2: Yes, it can be used. But be aware do not frequently used it in such situation, which may do damage to battery lifespan.

Q3: I can't get the image of the camera, or it keeps showing no signal on the screen.
A3: Please make sure the USB camera was connected correctly the screen display before open it. Plus, if the USB camera fell apart from the screen display accidentally, you can try to reconnect it and wait for a few seconds.
If it's still showing no signal, you can shut down the endoscoep and opened it again. Or turn to reset function for the fastest response.

Specifications of Different Version
