- Page 1 Industrial Endoscope DS590 Multi-Language User Manual...
-
Page 2: Product Features

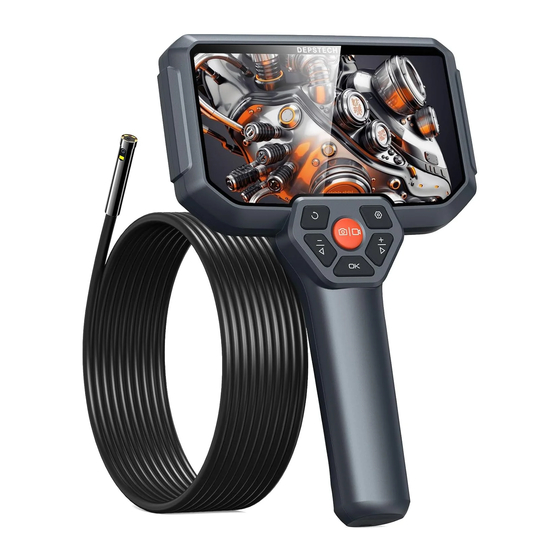

• DEPSTECH is a booming technology company, specialized in creating various endoscopes and committed to make you feel more secure. • DS590 is a high-performance industrial endoscope, equipped with 5 inch IPS high-definition display, has the camera and video functions and saves into TF memory card (Micro-SD card). -
Page 3: Product Introduction
Product Introduction • Hold this button for 2s to power on/off the endoscope • Click to rotate the real-time image 180° • Hold this button for 2s to switch main/side camera (Only applicable to dual-lens products) • Click to enter the menu •... - Page 4 TF Card Slot • Support up to 32G TF card • Please format it on first use Type-C Charging Port • For charging (Type-C cable connected to the adapter) • For data transmission (Type-C cable connected to PC client) Reset Button •...
-
Page 5: Language Setting
Album File name File number Photography date Current playback duration / Total video duration Language Setting Default language of the device is English; If other language is required, please follow the steps below: Language 1. Click the button to enter menu interface, select by pressing the arrow button and then press the button, enter the language setting interface. - Page 6 View Photo/Video 1. Long press in preview mode to enter the photo album. 2. Press to view photos, Click to play videos. 3. Long press to exit the photo album. Delete Photo/Video 1. When viewing photos/videos, press to enter the photo/video detail page.
- Page 7 Lens Switching (Only available for dual and triple lens products) When the product is turned on, it opens the main lens by default, long press the button 2s can switch the lens (Main Lens - Side Lens - Split Screen - Main Lens) TF Card Formatting 1.
-
Page 8: Charging Instructions
Copy Photo And Video Files To Computer 1. Use a TF card reader to copy data directly. Card Reader Card 2. Use a Type-C cable to connect to computer for copying Setting path. 1. Please connect the product to your computer. 2. -
Page 9: Specifications
Installation method: Turn counterclockwise-remove Turn clockwise-tighten protect cap accessories Specifications Model Dual Camera Triple Camera Camera Diameter 7.9 mm (0.31 in) A: 3-10 cm (1.18-3.93 in) A: 3-10 cm (1.18-3.93 in) Best Focal Range B: 2-6 cm (0.79-2.36 in) B: 2-6 cm (0.79-2.36 in) C: 1.5-2.5 cm (0.59-0.98 in) Camera View 80°... - Page 10 ※ FCC Requirement: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 11: Customer Services
Please contact us if you have any questions, we love to hear from you www.depstech.com support@depstech.com Facebook Official Page: @DEPSTECH. FANS Shenzhen Deepsea Innovation Technology Co., Ltd. Room 1901-1902, Jinqizhigu Building, No.1 Tangling Road, Nanshan District, 518055, Shenzhen, CN Made in China...
