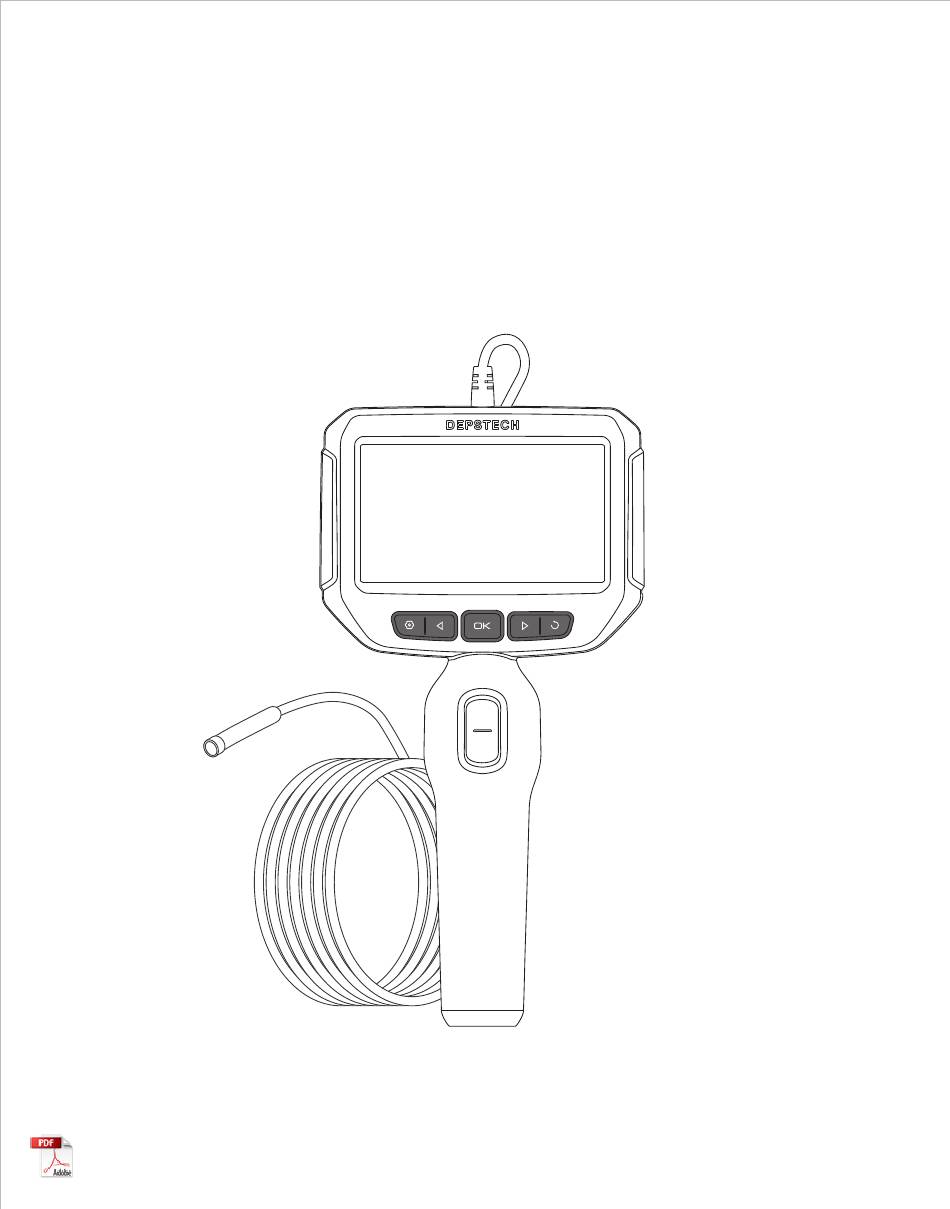

- Page 1 Industrial Endoscope DS360 User Manual...

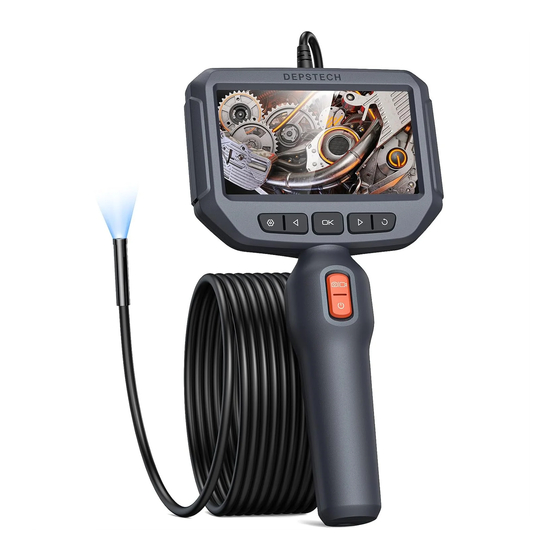

- Page 2 • DEPSTECH is a booming technology company, specialized in creating various endoscopes and committed to make you feel more secure. • DS360 is a high-performance industrial endoscope, equipped with 4.3” IPS LCD Screen display, has the camera and video functions and saves into TF memory card (Micro-SD card).
- Page 3 Product Introduction • Hold this button for 2s to power on/off the endoscope. • Single press to take a photo. • Hold this button to start video record, and single press to end the video record. • Click to enter the setting menu. •...
- Page 4 Type-C Charging Port • For charging (Type-C cable connected to the adapter). • For data transmission (Type-C cable connected to PC client). Charging Status LED indicator • Red LED indicator flash: Charging status. • Red LED indicator stay on: Charging finished. Reset Button •...
- Page 5 Album File name File number Photography date Current playback duration / Total video duration Language Setting Default language of the device is English; If other language is required, please follow the steps below: 1. Click the button to enter menu interface, select Language pressing the arrow button and then press the...
- Page 6 View Photo/Video 1. Long press in preview mode to enter the photo album. 2. Press to view photos, Click to play videos. 3. Press to exit the photo album. Delete Photo/Video 1. When viewing photos/videos, press to enter the photo/video detail page.
- Page 7 Lens Switching (Only available for dual and triple lens products) When the product is turned on the default open the main lens, long press button 2s can switch the lens. TF Card Formatting 1. On the preview interface, press the button to enter the menu;...
- Page 8 Copy Photo And Video Files To Computer 1. Use a TF card reader to copy data directly. Card Reader Card 2. Use a Type-C cable to connect to computer for copying Setting path. 1. Please connect the product to your computer. 2.
- Page 9 Specifications Model Single Lens Dual Lens Screen Spec 4.3” IPS LCD Screen Camera Diameter 7 mm (0.27 in) 8 mm (0.31 in) 3-10 cm Focal Range (1.18-3.93 in) Photo Resolution 1920*1080 720 p / 15-30 fps Video Spec Camera View 76°...
- Page 10 ※ FCC Requirement: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 11 Please contact us if you have any questions, we love to hear from you www.depstech.com support@depstech.com Facebook Official Page: @DEPSTECH. FANS Shenzhen Deepsea Innovation Technology Co., Ltd. Room 1901-1902, Jinqizhigu Building, No.1 Tangling Road, Nanshan District, 518055, Shenzhen, CN Made in China...
