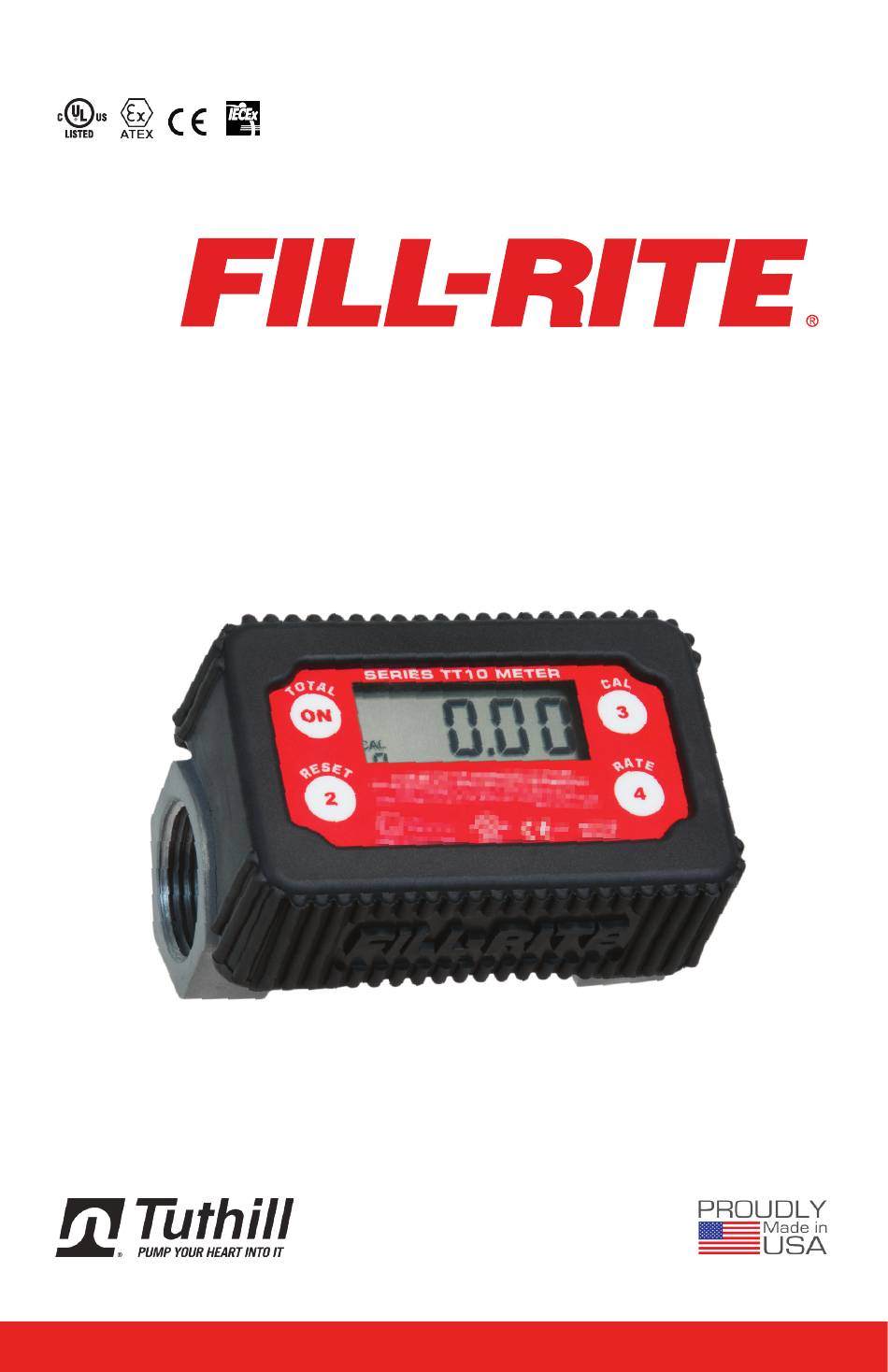

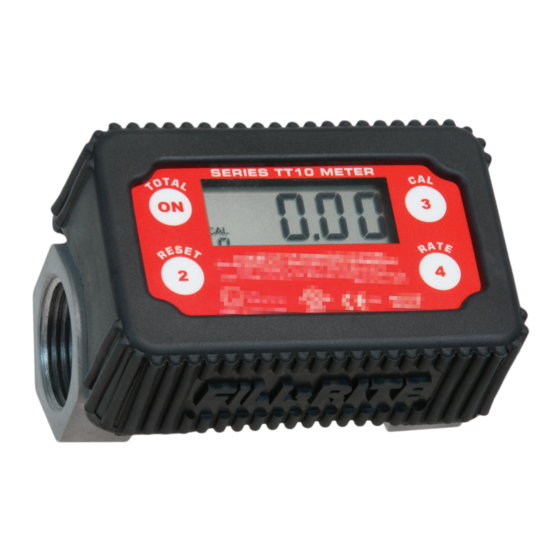

- Page 1 Operation and Safety Manual TT10A In-line Turbine Meter...
-
Page 2: Safety Instructions
-40°F to 176°F (-40°C to 60°C) Your comments and suggestions are requested Temperature (No Liquids) and appreciated. Thank you again for buying a Tuthill product. We look forward to serving you in Operating -40°F to 176°F (-40°C to 60°C) the future. Temperature Measurement ±1.0% (After field calibration) -
Page 3: General Description
2. Thread the hose or pipe into ports until snug. General Description Be careful not to cross thread when starting threads or over-tighten the meter. The TT10 Series Meters are electronic turbine meters suitable for use in Hazardous Locations and extreme temperatures. -
Page 4: Operational Functions
Operational Functions Press Calibration/Fluid Type Factor (CAL) The TT10 Series Meters provide 20 preset factors for • Turns meter on. different fluid types/viscosities. • Displays accumulated total while pressed. Use of calibration factors is intended to provide the most If the accumulated total is larger than accurate metering solution for a specific fluid. -
Page 5: Battery Replacement
Fluid Calibration Flush Mode (FLSH) Fluid calibration requires a container of a known volume Use of Flush mode allows you to flush the meter without at least 5 gallons or larger that is compatible with the fluid adding volume to the meter totals. This is useful when being metered. -
Page 6: Maintenance And Storage
Regulatory The batteries are accessed by removing the display as described in the section showing how to rotate the display. Safety Testing Approvals The Battery Foam may be stuck to the batteries. Carefully remove it and reinstall at assembly. The Battery Foam The Fill-Rite TT10 Series meters have been tested for protects the batteries and prevents them from becoming compliance to the standards set forth by Underwriters... - Page 7 Table 2: Troubleshooting Guide Problem Possible Cause Solution • Dead batteries • Replace batteries Seal to electronics is Meter won't turn on • Damaged electronics • Replace the meter broken if the display is removed or punctured. Counter has exceeded Reset display to zero by Meter will continue to Flashing decimals...
- Page 8 DC001977-000 Rev. 1 Find out more about fuel transfer & lubrication we have.
