Tuthill FILL-RITE 900DB Owners Installation, Operation, And Safety Manual

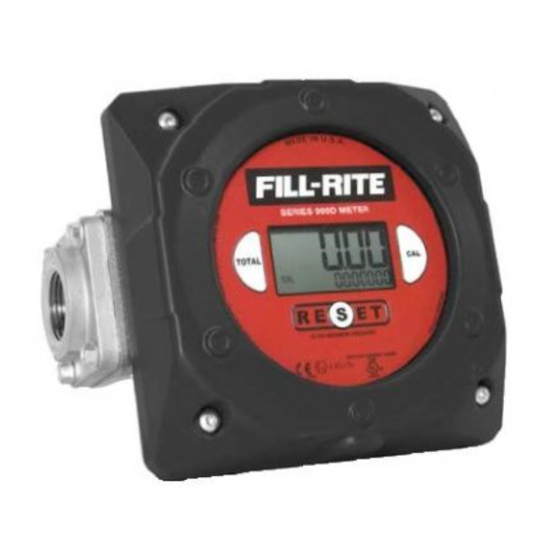

Digital liquid meter
Hide thumbs
Also See for FILL-RITE 900DB:
- Owners installation, operation, and safety manual (48 pages) ,
- Owner's manual (36 pages)
Related Manuals for Tuthill FILL-RITE 900DB
Summary of Contents for Tuthill FILL-RITE 900DB
-
Page 1: Owners Installation, Operation, And Safety Manual
Owners Installation, Operation, and Safety Manual Digital Liquid Meter Series 900 – High Flow Models 900DB, 900DB1.5, 900DBBSPT, 900DB1.5BSPT... -
Page 2: Table Of Contents
Table of Contents Owners Installation, Operation, and Safety Manual .............. 1 Table of Contents ........................2 Thank You! ..........................2 About This Manual ........................ 2 Safety Information ......................... 3 Installation ..........................3 Procedure for Meter Calibration .................... 4 Operating Instructions ......................5 Low Battery Warning ...................... -
Page 3: Safety Information
Safety Information WARNING! To insure safe and proper operation of your equipment, it is critical to read and adhere to all of the following safety warnings and precautions. Improper installation or use of this product can cause serious bodily injury or death! NEVER smoke near the meter, or use the meter near open flames when metering a flammable liquid! Fire can result! A “Fill-Rite”... -
Page 4: Procedure For Meter Calibration
IMPORTANT! If you have purchased this meter as part of a “Kit”, the meter flange base is drilled with 4 holes. This allows the meter to be used with 300 and 700 series pumps. Line the meter bracket up for installation and insert the bolts in the two holes that align with the corresponding holes on the pump outlet. -
Page 5: Operating Instructions
Pressing and holding the CAL button for 2 seconds before dispensing into a container will cause the meter to skip a fill operation and only change the unit of measure. IMPORTANT! For maximum accuracy, try to get as close as possible to the dispensed volume without changing flow rate. -
Page 6: Low Battery Warning
IMPORTANT! When the meter is in the “Deep Sleep” mode, dispensing fluid will NOT turn the meter on. The meter will not display or accumulate any fluid that is dispensed while in “Deep Sleep” mode. The last count and selected totalizer is retained and displayed when the meter is ... -
Page 7: Fluid Compatibility
Concern Possible Cause Recommended Repair Counter inaccurate. Meter mis-calibrated. Check calibration and recalibrate as necessary (directions on page 4). Air in lines or metering Check line seals and joints for chamber. leakage; seal leaks appropriately. Measuring disc is Clean or replace internal metering sticking. -
Page 8: Illumination
Meters not adhering to these specifications may be refused for service. Safety Testing Approvals The Fill-Rite 900DB series meters have been tested for compliance to the standards set forth by Underwriters Laboratories (UL), UL Canada, ATEX, and other testing organizations. To determine which specific compliances apply to your particular... -
Page 9: Replacement Parts Information
Replacement Parts Information Replacement parts can be obtained through any authorized Fill-Rite dealer. Be sure to use only genuine Fill-Rite replacement parts for your service and maintenance needs. Models 900DB, 900DB1.5, 900DBBSPT, 900DB1.5BSPT KIT900PF Meter to Pump Flange Kit 900 Series Digital Meter Replacement Parts Kit Kit Number Description Required Seal... - Page 10 Electrical Installation Information Internal Power (Battery Power) All 900DB Series Digital Meters are battery powered. The meter is equipped with a battery tray located behind the faceplate on the circuit board itself. Power on these units is supplied by two alkaline “AA” batteries. With normal use, these batteries should provide 2 –...
- Page 11 Technical Specifications and Information Dimensions: 6.75” (H) x 8.46” (W) x 4.12” (D) Accuracy: ± 1.25 % Repeatability: ± 0.25% at calibrated flow rate. Flow Rate: 6 to 40 GPM Pressure Rating: 50 psi Construction: Aluminum Units of Measure: ounces, pints, quarts, liters, gallons, 1 “Special Unit of Measure” option. Counter: 4 digit resettable counter;...
