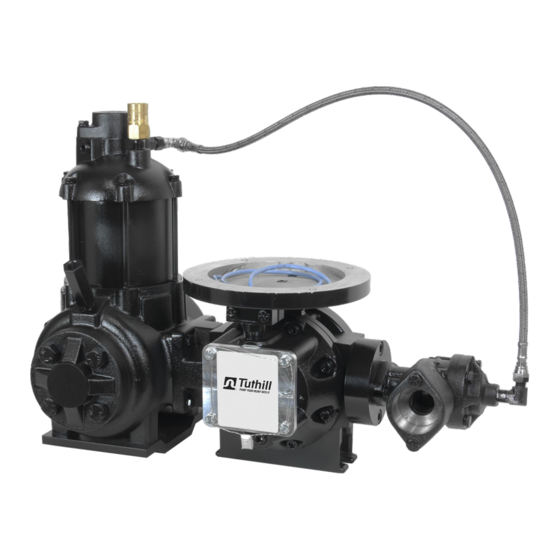

Tuthill TS10A Installation, Operation, And Parts Manual

Precision meter
Hide thumbs

Advertisement

Quick Links

Download this manual
Installation, Operation,
and Parts Manual
TS10A, LPG
Electronic
Wave Form Pulser

Advertisement

loading
Need help?

Need help?

Do you have a question about the TS10A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tuthill TS10A

Summary of Contents for Tuthill TS10A

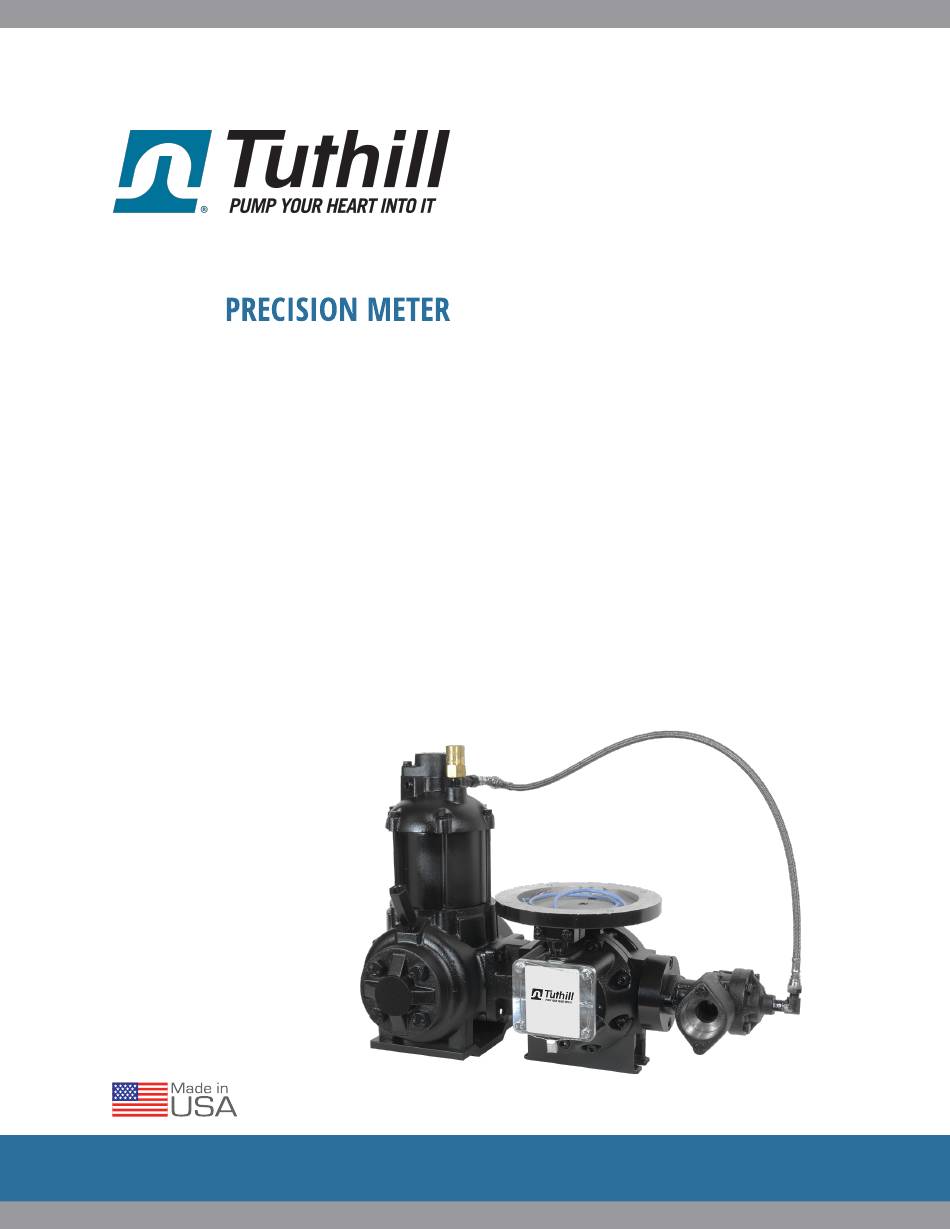

  • Page 1 Installation, Operation, and Parts Manual TS10A, LPG Electronic Wave Form Pulser...

  • Page 2: Table Of Contents

    Manufacturing Facility located in Fort Wayne, IN Tuthill Corporations humble beginnings date back to 1892, when Principle of Operation................3 James B. Tuthill purchased a clay quarry and a kiln and began Safety Procedures.................4 supplying Chicago common bricks to local construction firms. In the Installation and Operations ...............5-7...

  • Page 3: Principle Of Operation

    The volume being transferred from the inlet to the outlet side (= volume being measured) forms between the oval gear We thank you for purchasing a Tuthill Meter for liquid and side of the measuring chamber, alternately in the upper measurement service.

  • Page 4: Safety Procedures

    Safety Procedures This manual provides warnings and procedures that are intended to inform the owner/operator of the hazards present when using the Tuthill M e t e r s and other products. The reading of these warnings and the avoidance of such hazards is strictly in the hands of the owner/operator of the equipment. Neglect of that responsibility is not within the control of the manufacturer of the flow meter.
  • Page 5 It is recommended that a Strainer be installed upstream are included, and adequate space allowed. of each flow meter, to prevent damage from foreign mat- ter, such as welding slag, pipe scale or parts breaking off other equipment. When using Tuthill right-angle strainer:...
  • Page 6 Start-Up: bration vessel (or master meter) should be considered. Fill the system slowly to avoid operation on air or vapor. Refer to Tuthill Technical Manual for a diagram of the This can be accomplished in the following manner: sug-gested installation.
  • Page 7 Installation & Operation continued A. EL0304 Terminal Block Board (TBB) EL0305 TBB/Amplifier EL0305 is used for remote high frequency electronic registers accepting quadrature signal, when the cable distance is in 200-600’ (60-180 m) range. For greater distances external amplifier (2xPIA-300) is required.
  • Page 8 Installation & Operation continued C. EL0300 Scaler/Calibrator/Linearizer (SCL) SCL is not yet approved While the SCL can have multiple functions, in many for use in the cases it is included strictly as a signal conditioner (= ‘Jitter filter’). In those cases, only the calibrator function is active.
  • Page 9 Installation & Operation continued...
  • Page 10 Installation & Operation continued...
  • Page 11 Installation & Operation continued...
  • Page 12 Vent Line: The vent line from the meter’s vapor vent to the vapor space The Tuthill Meter LPG metering system combines an oval gear positive displacement meter, differential valve, on the supply tank should a minimum of 1/4” inside diameter strainer and vapor eliminator in one assembly.

  • Page 13: Meter Maintenance

    Use a straight edge. Warped plates can be on the system. caused by hydraulic shock problems that must be re- solved. Contact your full service distributor, or the Ser- vice Department at Tuthill Meters for assistance if this General Service: oc-curs. ...

  • Page 14: Meter Disassembly

    Meter Disassembly:  Remove the eight screws (#19) from flow meter front The great advantage of Tuthill Meters model TS10AF83 cover (#5). Detach the front cover from meter body (#1). & TS10AF93, is that the flow meter can be serviced in place, without removal of the electronic register, or ...
  • Page 15 Meter Maintenance  it is recommended that the flow meter be replaced. Inspect the post plate and posts. Replace if there is any wear or scratches on the post plate. A small amount of  Reinstall the meter gear plate (#4). polishing (surface marking) on the post plate (#3) is nor- ...
  • Page 16 TS10A (cast body) Parts List ITEM DESCRIPTION Part No. Meter body MB2566       Gear set, PPS/carbon, LV GSTS10RC    Post Plate assembly CP25801    Bearing Plate/WV magnet assembly   ...
  • Page 17 Strainer The same strainer is used with both TS06A (single or dual) & TS10A models; in single configuration, one side of the strainer is closed with a blind cover (#33). In dual configura- tion, a check valve is installed between the strainer and each flow meter.

  • Page 18: Differential Valve

    Differential Valve Opt. Inlet Check Valve (TS06AS84 only) Inlet Check Valve (optional component)  Disconnect the outlet piping from the meter assembly at the differential valve outlet flange. Differential Valve   Remove the meter as detailed in the METER DISASSEM- Remove the companion flange from valve outlet.
  • Page 19 Dimensional Drawing...

  • Page 20: Strainer

    Trouble Shooting Problem Probable Cause and Solution Leakage from seal cover.  Seal has been damaged due to shock  Cover bolts have not bee tightened sufficiently  Replace seal and /or re-torque bolts  Product flows through meter but the Pulser is not functioning properly register does not operate ...
  • Page 21 The SCL may be LINEARIZER MODE: used in conjunction with other Tuthill electronics to solve If a metering device is not producing an output within the many of your electronic interface requirements.
  • Page 22 Flow Meter Calibration  METER CALIBRATION: Finally:   Flow meter re-calibration should be on a volume Re-seal the flow meter. equal to 1 minute of flow at maximum flow rate.  Enter date and % correction on the permanent flow ...
  • Page 23 Flow Meter Maintenance & Calibration Record DATE ITEM SERVICED K FACTOR % Change _____ __________________________________________________________________ __________ ________ _____ __________________________________________________________________ __________ ________ _____ __________________________________________________________________ __________ ________ _____ __________________________________________________________________ __________ ________ _____ __________________________________________________________________ __________ ________ _____ __________________________________________________________________ __________ ________ _____ __________________________________________________________________ __________ ________ _____ __________________________________________________________________...
  • Page 24 8825 Aviation Drive | Fort Wayne, Indiana 46809 P (800) 634-2695 | (260) 747-7524 F (800) 866-4861 www.tuthill.com www.fillrite.com www.sotera.com Tuthill UK LTD. Birkdale Close Manners Industrial Estate Ilkeston, Derbyshire DE7 8YA P +44 0 115 932 5226 F +44 0 115 932 4816...
