Tuthill FILL-RITE TT10A Operation And Safety Manual

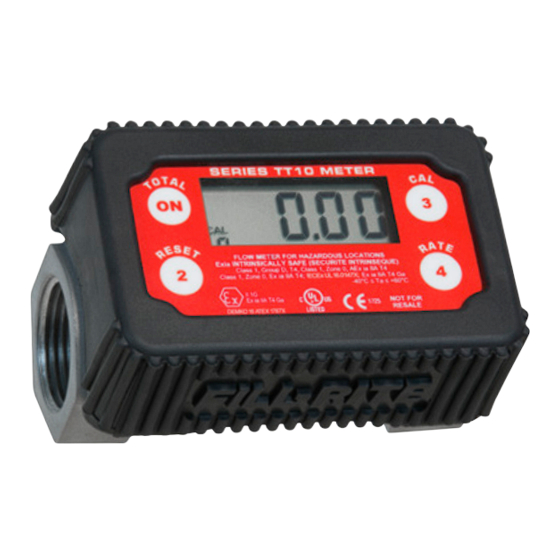

In-line turbine meter
Hide thumbs
Also See for FILL-RITE TT10A:
- Operation and safety manual (9 pages) ,
- Operation and safety manual (8 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Tuthill FILL-RITE TT10A
Summary of Contents for Tuthill FILL-RITE TT10A

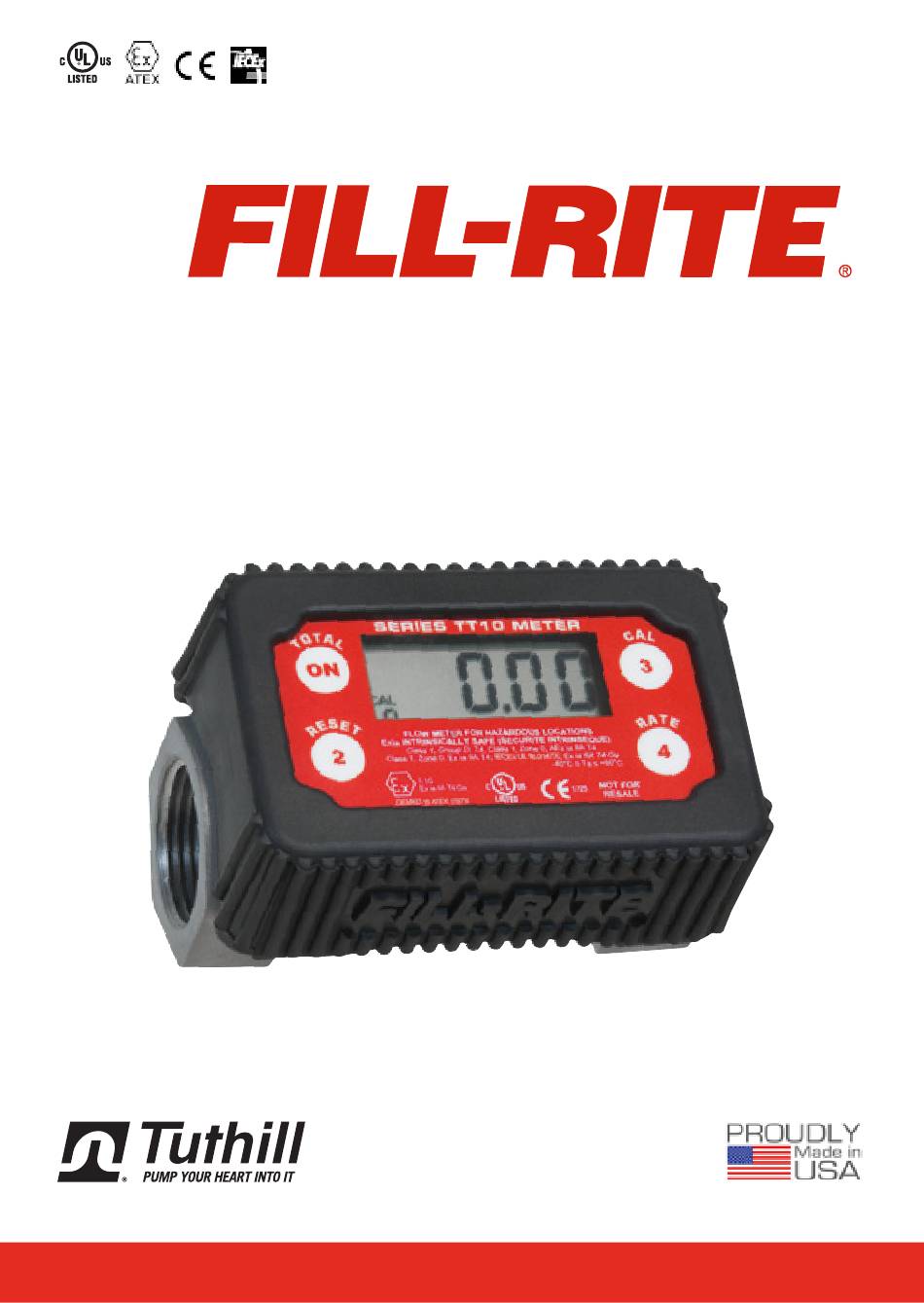

- Page 1 Operation and Safety Manual TT10A In-line Turbine Meter...
-
Page 2: Safety Instructions
Please take TT10A (Fuels) Technical Information a few minutes to review this material carefully. Tuthill’s mission is to provide fl uid handling systems that deliver the most accurate, safe, convenient, Flow Ports 1" NPT or BSPP female inlet and... -
Page 3: General Description
2. Thread the hose or pipe into ports until snug. General Description Be careful not to cross thread when starting threads or over-tighten the meter. The TT10 Series Meters are electronic turbine meters suitable for use in Hazardous Locations and extreme temperatures. -
Page 4: Operational Functions
Operational Functions Press Calibration/Fluid Type Factor (CAL) The TT10 Series Meters provide 20 preset factors for • Turns meter on. different fl uid types/viscosities. • Displays accumulated total while pressed. Use of calibration factors is intended to provide the most If the accumulated total is larger than accurate metering solution for a specifi... -
Page 5: Battery Replacement
Fluid Calibration Flush Mode (FLSH) Fluid calibration requires a container of a known volume Use of Flush mode allows you to fl ush the meter without at least 5 gallons or larger that is compatible with the fl uid adding volume to the meter totals. This is useful when being metered. - Page 6 The batteries are accessed by removing the display as Regulatory described in the section showing how to rotate the display. Safety Testing Approvals The Battery Foam may be stuck to the batteries. Carefully remove it and reinstall at assembly. The Battery Foam The Fill-Rite TT10 Series meters have been tested protects the batteries and prevents them from becoming dislodged if the meter is handled roughly.
- Page 7 Table 2: Troubleshooting Guide Problem Possible Cause Solution • Dead batteries • Replace batteries Seal to electronics is Meter won't turn on • Damaged electronics • Replace the meter broken if the display is removed or punctured. Counter has exceeded Reset display to zero by Meter will continue to Flashing decimals...
- Page 8 Revision Date: August 1, 2014 Fill-Rite and Sotera Products Tuthill Transfer Systems ("Manufacturer") warrants each consumer buyer of its products ("Buyer") from date of sale that goods of its manufacture ("Goods") shall be free from defects of materials and workmanship.
