To select which inputs and outputs use clock A or B, use the A/B switches in the
matrix view. The SRC is automatically inserted when any routing from clock A to B
(or clock B to A) is made.

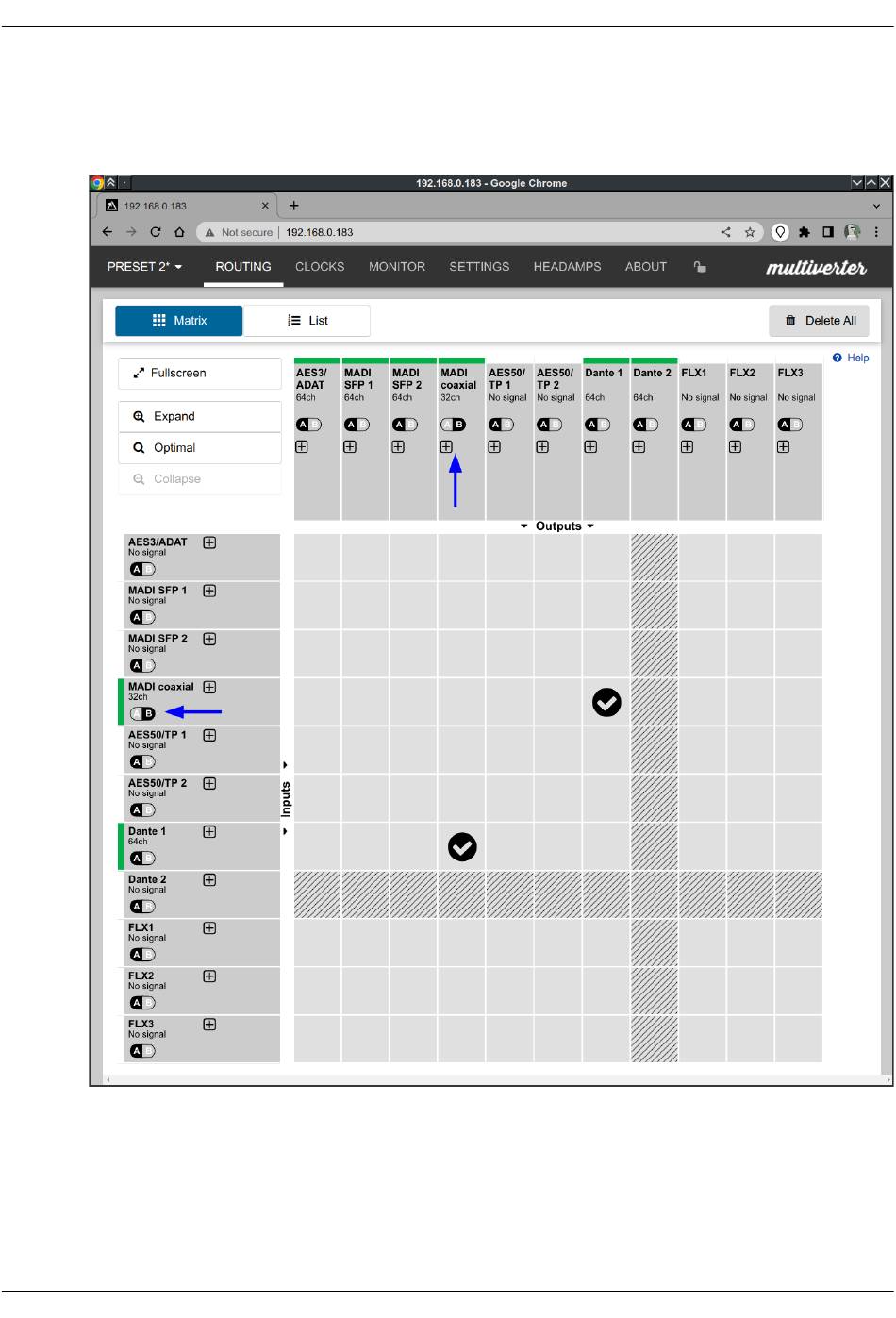

Figure 1: Typical routings for MADI 96k <> Dante 48k. Note that the clock source
for MADI coaxial inputs and outputs set to clock "B". The black check marks
indicate that the conversion is active with SRC involved (=white LEDs on the front
panel).
