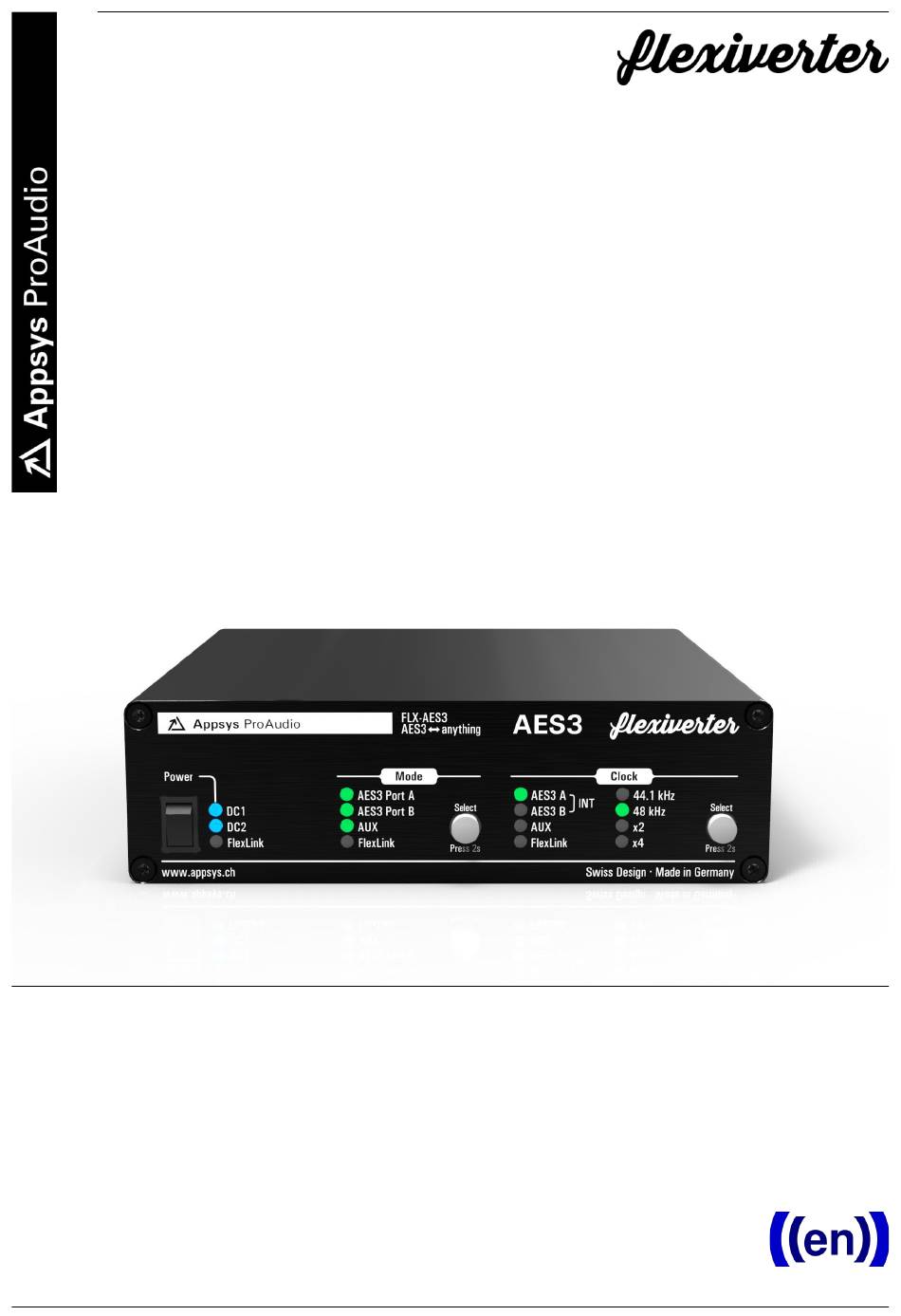

- Page 1 FLX-AES3 AES3-to-anything Digital Audio Converter User's Manual...
-
Page 2: Table Of Contents
User's Manual Table of Contents QUICK REFERENCE.................... 4 INTRODUCTION....................5 2.1. Purpose....................5 2.2. Box Contents.................... 5 2.3. Conventions used in this manual..............5 POSSIBLE SETUPS..................... 6 3.1. Available AUX cards..................6 3.2. Available FLX devices................7 3.3. FlexLink connection...................7 AUDIO ROUTING....................8 4.1. - Page 3 FLX-AES3 11.4. Recycling....................21 11.5. Document Revision History..............21 11.6. About this document................21...
-
Page 4: Quick Reference
User's Manual QUICK REFERENCE Power switch and "power good" indicators. ➊ LEDs light up blue when power is available on the respective port. Mode indicators/selector. Long-press the "Select" button to change the audio ➋ routing between the interfaces. Wait four seconds to activate the selected mode. Clock indicators/selector. -
Page 5: Introduction
FLX-AES3 INTRODUCTION 2.1. Purpose The FLX-AES3 device is as digital audio converter, providing up to 16x16 channels of AES/EBU at samplerates up to 192kHz. It can be used in different setups, depending on the user's needs: standalone, to convert between the built-in AES3 ports and an AUX card ... -
Page 6: Possible Setups
User's Manual POSSIBLE SETUPS The device can be used in three different setups, shown below: SETUP flexiverter+AUX card Double-flexiverter flexiverter+multiverter How it works Converts between built-in Devices are connected via Flexiverter connected to interface and the AUX card. FlexLink cable. multiverter via FlexLink cable. -
Page 7: Available Flx Devices
FLX-AES3 AUX-AVB 1 16x16ch / 32x0ch / 0x32ch MILAN-approved AVB AUX-DAC 1 8ch analog outputs (1xDB25) AUX-DANTE 64x64ch DANTE network card AUX-MADI-COAX 64x64ch MADI for coaxial cable (BNC connectors) AUX-MADI-OPTO 64x64ch MADI optical, SC connector (Multimode 125um 1310 nm) AUX-MADI-SFP 64x64ch MADI for SFP (Small-Factor Pluggable) modules AUX-WORDCLOCK BNC wordclock I/O 3.2. -
Page 8: Audio Routing
User's Manual AUDIO ROUTING The flexiverter can operate in various routing modes, allowing you to pass audio between the available interfaces (AES3, AUX and FlexLink) in many different ways. The LEDs in the "MODE" section indicate the involved interfaces. 4.1. Modes and indication Mode (route between) Operation... -
Page 9: Selecting The Route Mode
FLX-AES3 4.2. Selecting the Route Mode Long-press the Mode button until the LEDs are blinking yellow. Current routing mode is shown by alternately yellow blinking LEDs, indicating the interfaces where the signal is passed between. Press the Mode button repeatedly to cycle between available modes, until ... -
Page 10: Clock Settings
User's Manual CLOCK SETTINGS 5.1. Clock sources and indication The flexiverter can be clocked from every interface (acting as clock slave), or can run on its internal clock (acting as clock master). Clock source "Clock" Indication (Example) Remarks AES3(A) Ch1/2 ⬤... - Page 11 FLX-AES3 Press the Clock button repeatedly to cycle between the available clock sources. Depending on the source, you might need to select the desired sample rate ( 44.1 kHz or 48 kHz ) and/or the appropriate multipliers ( x4 ).
-
Page 12: Accessing Internals
User's Manual ACCESSING INTERNALS 6.1. Opening the device Required: Torx T10 screwdriver. Power off the device and detach all cables to avoid short-circuit or damage. Detach the device from the rack-mount kit. Remove the four top screws and the top cover by pulling it upwards: ... -
Page 13: Variable Db25 Pinout
FLX-AES3 6.4. Variable DB25 pinout Historically, there are two different pin assignments for the AES/EBU DB25 connectors around, commonly known as "Yamaha" and "Tascam" style. The FLX- AES3 supports both pinouts by means of internal jumpers. Pinout can be set for both ports independently, meaning you could use the FLX-AES3 as cabling adapter. -
Page 14: Dip Settings
User's Manual DIP SETTINGS Fine-tuning of the flexiverter's built-in interface behavior and of the AUX card can be achieved via DIP settings on the back side. Changing the DIP settings will come immediately into effect. Default setting: all switches up. 7.1. -
Page 15: Aux Config (Dip4
FLX-AES3 7.2. AUX config (DIP4..6) Many AUX card provide additional settings, which can be adjusted using these switches. The actual meaning depends on the type of AUX card installed: AUX-ADAT Channels 1-8: Channels 9-16: AES3 (Professional) 3 ▀ ▀ ▀ ADAT format* 3 ADAT format* 3 only for non-ADAT... -
Page 16: Flexlink Channel Mapping (Dip3, 7
User's Manual 7.3. FlexLink channel mapping (DIP3, 7..9) The FlexLink interface can transmit 192x192 channels, organized in three lanes with 64 channels each. The channel assignment can be adjusted to meet the user's needs, particularly when the device is used in double-FLX configuration (to make sure that all interfaces and channels are mapped to the desired target on the peer FLX device. -
Page 17: Special Operating Modes
FLX-AES3 SPECIAL OPERATING MODES Special operating modes are accessible by holding down the Mode button while switching on the device. Press Mode again to switch to the next mode: Version Display LED Test Interface Self-Test Normal operation ... -
Page 18: Firmware Update
User's Manual Make sure both ports "AES3 A" and "AES3 B" are set to the same pinout, matching the pinout of the loop-back cable. Connect "AES3 A" to "AES3 B" using the loop-back cable. If an AUX card is installed, connect all output ports of the AUX card to the ... -
Page 19: Specifications
FLX-AES3 SPECIFICATIONS Parameter Value Dimensions 152x44x153mm (WxHxD) excluding connectors/buttons 152x44x163mm (WxHxD) including device-side connectors/buttons Weight 590g Operating temperature 0..+55°C, non-condensing Storage temperature -40..+85°C, non-condensing Power consumption +15V DC, 9W max (18W to power two devices via FlexLink) Triple-redundant input (2x DC, 1x via FlexLink) AES3 ports (A, B) Input and output fully transformer-isolated according to AES/EBU requirements Maximum speed: 192kHz single-wire... -
Page 20: Appendix
* Not covered by the warranty are any damages resulting out of improper use, willful damage, normal wear-out (especially of the connectors) or connection with incompatible devices. 11.2. Manufacturer contact Appsys ProAudio www.appsys.ch Rolf Eichenseher info@appsys.ch Bullingerstr. 63 / BK241 Phone: +41 43 537 28 51 CH-8004 Zürich... - Page 21 About this document All trademarks mentioned in this document are property of the respective owners. All information provided here is subject to change without prior notice. Document Revision: 1 · 2021-11-29 Copyright © 2021 Appsys ProAudio · Printed in Switzerland IDENT 9.00.16143.00...
- Page 22 User's Manual Declaration of Conformity The manufacturer: Appsys ProAudio Rolf Eichenseher Bullingerstr. 63 BK 241 CH-8004 Zürich Switzerland declares under sole responsibility that the products mentioned below: Flexiverter FLX-AES3 meet the requirements of the following standards: EN 55024:2010 EN 55032:2015 Class B...
