Appsys ProAudio Multiverter MVR-64 User Manual

Digital format converter
Hide thumbs Also See for Multiverter MVR-64:

Advertisement

Quick Links

Download this manual
Digital Format Converter
MVR-64
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Multiverter MVR-64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Appsys ProAudio Multiverter MVR-64

Summary of Contents for Appsys ProAudio Multiverter MVR-64

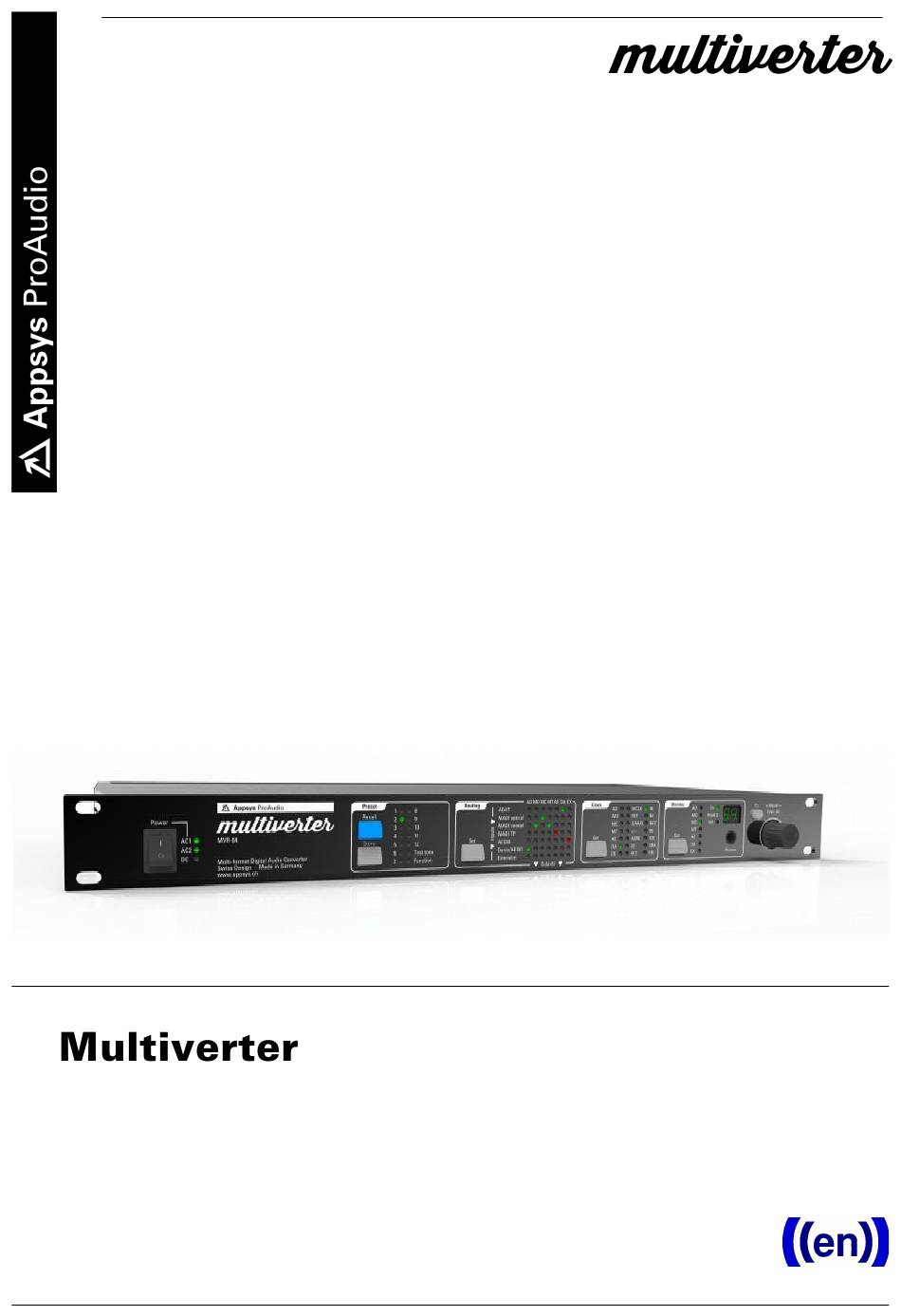

  • Page 1 Digital Format Converter MVR-64 User's Manual...
  • Page 2 User's Manual 1. GENERAL.............................4 1.1. Conventions used in this manual..................4 1.2. Safety precautions......................5 1.3. Foreword..........................5 1.4. Box Contents........................5 2. INTRODUCTION.........................6 2.1. Front panel...........................6 2.2. Rear panel..........................6 2.3. Overview..........................7 2.4. User interface........................7 3. CONNECTIONS OVERVIEW.....................12 3.1. AC Power..........................12 3.2. DC Power...........................12 3.3.
  • Page 3 MVR-64 9.3. Audio Interface self-test....................37 9.4. LED and button test......................38 9.5. ASRC self-test........................39 10. FIRMWARE..........................40 10.1. Version check........................40 10.2. Upgrade...........................41 11. COMMAND LINE REFERENCE....................42 12. SPECIFICATIONS........................43 13. ACCESSORIES........................45 13.1. AES50/MADI-TP Pin swap adapter cable..............45 13.2. MTA-64 Adapter for MADI-TP..................45 13.3. SRC-64 Asynchronous Samplerate Converter Module (optional hardware).....46 13.4.
  • Page 4 User's Manual A button on the front of the device is shown like this:  A particular LED on the front of the device is shown like this: ☼  Text indicated on the seven-segment display is shown as 02 ...
  • Page 5 MVR-64 This device is intended to be used in a professional environment with restricted access only. Thank you for purchasing one of the most innovative digital audio converters on the market. The multiverter was designed with true vendor independence and interoperability in mind, with the idea to make all your gear interact seamlessly.
  • Page 7 MVR-64 The multiverter is a unique device which allows you to convert digital audio data in any direction between the most popular formats: (via break-out boxes). All inputs can freely be routed to all of the outputs, with an arbitrary number of splits and merges supported at the same time.
  • Page 8 User's Manual ▶ Front Most settings are directly accessible without the need to walk through lengthy menus: To change a setting, first push the appropriate rectangular button (e.g.  You have now entered “Menu” mode, indicated by a yellow blinking cursor. Move the cursor by turning the encoder (rotary knob) left or right to move it to ...
  • Page 9 MVR-64 To access the web control, figure out the symbolic name (as displayed in the Dante controller, usually MVR-64-xxxxxx (with xxxxxx being some individual number of the multiverter), and type the following into the browser's address bar: http://MVR-64-xxxxxx.local Alternatively, you can type the IP address of the Dante module (as displayed in the "Network Config"...
  • Page 10 User's Manual In the Dante Controller, under "Network Config", set Dante Redundancy to  "Redundant". Connect the Audio network to the "Primary" port only and configure it as  desired. Connect the Control network to the "Secondary" port and configure it as ...
  • Page 11 MVR-64 The app uses latest web technologies (HTML5, AJAX, Server-sent Events etc.)  which require an up-to-date browser. It has been extensively tested with mid- 2018 editions of Chrome, Firefox, Safari and Edge. You can run up to four sessions at the same time (i.e. have the page open on ...
  • Page 12 User's Manual This chapter gives you an overview of all connections on the back of the device. Please refer to 12. Specifications for full characteristics of each port. Mains AC inlet, 90-240VAC, 0.75A max. Together with the DC power port, the inputs are full redundant. If any of the inputs fail, the other takes immediately over.
  • Page 13 MVR-64 The ports are mapped to the channels as shown in the table below. Please note that SPDIF/AES3 channel mapping is not linear, but starts with the same channel number as ADAT for each port. This allows to keep all routings the same even when the protocol changes.
  • Page 14 User's Manual This port is designed to connect break-out boxes to support other, non-built-in protocols and standards (e.g. AVB), or to connect additional ports for system extension. Currently supported (as of 2019-08): MTA-64 Adapter for DiGiCo/Soundcraft/Studer/Harman MADI-TP variant Note: The MTA-64 uses the Extension port only for power, not for audio. The port is fed through on the MTA-64 and remains available for other extension boxes.
  • Page 15 MVR-64 This port carries MADI data according to the “coaxial” transmission method specified in AES10. The yellow LED indicates the current status: Off: No incoming MADI data detected  On: Incoming MADI detected, but no valid system clock  Flashing: Incoming MADI and valid system clock detected ...
  • Page 16 User's Manual Behringer/MIDAS preamps (i.e. for remote gain control). The LEDs indicates the current status: Yellow: Link detected  Green: Input data valid and system clock valid  To use more than 48/24 channels with AES50, the MADI-TP port can be configured to work as second AES50 port. Use the channel-wise routing feature from the Web remote to map the channels as required.
  • Page 17 MVR-64 The Dante port provides also the Web UI and a telnet server (on port 2300) for remote control. Both services are available on the same IP address as the Dante audio interface (use the Dante Controller software to determine or change the IP). The port LEDs indicates the current status: Yellow: Link detected ...
  • Page 18 User's Manual DiGiCo Control data is contained in all bits (audio+user) of channel 57. To enable forwarding between different MADI ports, Set MADI transmit mode of the involved MADI ports to 57ch • (see 9.2 Configuration settings) Route ch 57 to ch 57 both ways •...
  • Page 19 MVR-64 All settings (excluding headphones level) can be individually stored in one of the 12 preset locations, and may be recalled at any time later. The settings are stored in non-volatile memory and are retained for years even if the device is switched off or the power cable is unplugged.
  • Page 20 User's Manual ▶ Front To store a preset: Push the button in the “Preset” menu.  Select the desired storage location ☼ to ☼ by turning the encoder left or  right. Confirm the selected location by pushing the encoder, or push the ...
  • Page 21 MVR-64 In addition to the presets stored in locations 1-12, the multiverter remembers the current setting, even when power cycled or left unpowered for a long time. This means that you can always reset the multiverter and have the settings fully restored by switching it off and on.
  • Page 22 User's Manual Due to a lack of controls, the front panel allows only interface- wise routing. To use channel-wise routing (merging of different input streams), use either the web interface or the command line. ▶ Front The routing matrix indicates the interfaces between conversions are currently active.
  • Page 23 MVR-64 Click anywhere in the matrix to make or break a connection. Multiple  connections can be made by click-and-drag, broken by holding SHIFT. Current status of a connection is indicated by the large colored icon on the  connection; current status of each input / output is indicated smaller on the header.
  • Page 24 User's Manual Each routing can be entered as text line, in the form Source > Sink" or  alternatively "Sink < Source" (both produce identical results). "Sink" and "Source" can be entire interfaces, channel ranges or single channels.  Entire interfaces are be specified as two-letter abbreviation (i.e. "MO" for MADI optical) Channel ranges can be specified by appending a colon, followed by the start ...
  • Page 25 MVR-64 ▶ Front route <destination> [<source>] with <destination> and <source> indicating channel ranges as described in the "List view" section above. If <source> is omitted, the current source for <destination> is printed.
  • Page 26 User's Manual All components within a digital audio system must reference to the same master clock to ensure that they run synchronously. The multiverter can use any of the incoming interfaces as clock source, or alternatively it can act as clock master using its internal, high-quality clock synthesizer.
  • Page 27 MVR-64 ▶ Front To set the clock source: Push the button in the “Clock” menu.  Move the yellow blinking cursor to the desired clock source.  Push the encoder or press the button to select the interface, or press ...
  • Page 28 User's Manual ▶ Front ▶ Front clock [<source> [<srate>|<smux>]] Available Sources: AD,MO,MC,MT,AE,DA,EX,WCLK,INT ...
  • Page 29 MVR-64 Samplerate (only required for DA or INT):  44100,48000,64000,88200,96000,128000,176400,192000 SMUX (only required for AD,MO,MC,MT or WCLK): 1,2,4  asrc [disable|<in> <out> <clksrc> [<srate>|<smux>]] disable Turn off ASRC  <in>,<out> Interfaces which should run asynchronously.  Values: AD,MO,MC,MT,AE,DA,EX,MO+MC,MO+MT,MC+MT,AE+MT,NONE If NONE is specified, the ASRC is turned off for the respective direction. If both <in>...
  • Page 30 User's Manual ▶ Front The panel lock feature can be used to disable all buttons on the front panel. This can be used to protect the MVR-64 against undesired or accidental parameter changes. The panel lock feature is available from firmware version 1.4 and higher. To lock the panel, hold down the ⮌...
  • Page 31 MVR-64 The “Monitor” section controls the headphone amplifier which allows you to listen to any channel received on the inputs. You can adjust if mono (same channel on both ears) or stereo signals are output on the headphones. Also, extra gain (+6/+12/+24dB) can be added for the headphones output to ease monitoring of silent signals (but may cause clipping at larger levels).
  • Page 32 User's Manual ▶ Front monitor [<source>:<channel>] Sets the source interface and channel. If stereo monitoring is selected, <channel> corresponds to the "L" channel, the subsequent channel is output as "R" signal. volume [<vol>|+|-] Sets the volume of the monitor output, either as <vol> from 0-99, or "+" to increment / "-"...
  • Page 33 MVR-64 ▶ Front For diagnostic purposes, the multiverter is able to play a test tone (1kHz, -20dB sine wave) on all outputs which are currently active. This feature is especially helpful to determine problems in your signal flow, as it does not rely on any external sources (except for the clock).
  • Page 34 User's Manual Confirm by pushing the encoder (or push ⮌ to cancel the operation)  The current value is displayed in the 7-segment display. Rotate the encoder to  change the value, and push it to confirm. ▶ Front ▶ Front function <number>...
  • Page 35 MVR-64 [01] Headphones mode Mono +0dB (none) Stereo Mono +6dB Stereo Mono +12dB Stereo Mono +24dB Stereo : Both L and R speakers of the headphones play the same monitor channel,. The channel indication ranges from 1 to 64 and changes in steps of 1.

  • Page 36: General

    User's Manual 13 ‡ Studer 14 ‡ 15 ‡ 24 ‡ DiGiCo MDIX (Crossover) 25 ‡ 26 ‡ 27 ‡ 28 ‡ Soundcraft/ Studer 29 ‡ 30 ‡ 31 ‡ AES-X213 Auto 40 ‡ DiGiCo Straight MTA-64 required 41 ‡ 44 ‡...

  • Page 37: Front Panel

    MVR-64 [12] Version info The firmware consists of several different parts. To check the overall firmware version number, use the web interface. Turn the encoder left or right to display the different version numbers in the 7-segment display: ☼ FPGA Firmware Major version ☼...
  • Page 38 User's Manual LED indication 8x optical TOSLINK (ADAT) cable AD/AD MIDI cable (2x 5-pin DIN plug) Standard 1:1 network cable DA/DA BNC cable, 75 ohms MC/MC WCLK AES50/MADI-TP pin swap cable, see chapter 13.1 AE/AE MT/MT MADI optical loop-back cable MO/MO To verify correct operation of all LEDs and buttons, , move to ☼...
  • Page 39 MVR-64 The SRC-64 sample rate converter can be self-tested for correct operation. A 1kHz, 96k sine wave is passed through all channels of the ASRC (down-sampled to 88.2k), and looped back (up-sampled to 96k again). The result can be listened to on the headphones (and is also present on MADI optical (ch 1-32) and MADI coaxial (ch 33-64).
  • Page 40 User's Manual We recommend to check the firmware via the Web interface ("ABOUT" tab). Only there is the overall version number (= package version, same as in the file name of the firmware ZIP-file) visible. Else you will see only component sub-versions. ▶...
  • Page 41 MVR-64 Firmware upgrade involves operations which must be carried out (order doesn't matter): 1) FPGA/Frontpanel (via USB and command line tool) 2) Dante upgrade (via Dante network connection) 1. The FPGA and Control firmware is updated via the USB port. Connect the MVR-64 via USB to your PC and run MVR-64-Updater.bat (on Windows) or sudo ./MVR-64-Updater.sh (on Linux)
  • Page 42 User's Manual The MVR-64 command listed below are available. Type 'help' to see this list. Most commands can be called without an argument and return the current setting. preset [<store|recall> [<num>]]: store/recall preset number <num> volume [<vol>]: Sets the volume of the monitor output (0-99) monitor [<source>:<channel>]: Sets the source of the monitor output Available sources: AD,MO,MC,MT,AE,DA,EX number:1-64...
  • Page 43 MVR-64 Dimensions 482x45x230mm (WxHxD) Weight 2.25 kg Operating 0..+50°C, non-condensing temperature Storage temperature -40..+85°C, non-condensing Power consumption 8W typical., 30W maximum Each AC input: 90..240VAC, 50-60Hz, 0.75A DC input: 9-24VDC (up to 30V tolerant), 2.5A peak Channel count Up to 64 per interface in x1 modes Up to 32 per interface in x2 modes Up to 16 per interface in x4 modes Multiple conversions (i.e.

  • Page 44: Rs485

    User's Manual PC port USB 2.0 (FTDI 2232). Remote control and firmware update, no audio connection RS485 port Male D-Sub 9pin, Yamaha AD8HR compatible Pinout: 2=RX-, 3=TX-, 4=TX+, 5=GND, 6=RX+ Extension port HDMI connector type (not HDMI compatible). 64ch@32/44.1/48kHz, 32ch@64/88.2/96kHz, 16ch@128/176.4/192kHz MADI optical port SC connector, 50/125 µm or 62.5/125 µm multi-mode fiber (MM fiber), 1300nm, up to 2km total length.
  • Page 45 MVR-64 The AES50 and MADI-TP ports have different pin-outs as required by the respective standards. AES50 uses Pins 1/2 and 3/6 for the signal, 4/5 and 7/8 for sync, while a MADI-TP port uses 4/5 and 7/8 for the signal (with pins 1/2 and 3/6 reserved –...

  • Page 46: Extension

    User's Manual SRC-64 add-on module - available as separate hardware - adds the capability of asynchronous sample rate conversion to your multiverter. Designed as internal add-on module, it leaves the "Extension" port available to other break-out boxes. (Note: The module is called "ASRC" in this manual for clarity).It features highest analog performance (THD+N -134dB typ.) , 64-channel,...
  • Page 47 MVR-64 Various break-out boxes for connection to the “Extension” port will be available in the future. These boxes are designed to add support for non-built-in interfaces (e.g. AVB or Waves Soundgrid), and to add additional ports (e.g. MADI) to the system.
  • Page 48 * Not covered by the warranty are any damages resulting out of improper use, willful damage, normal wear-out (especially of the connectors) or connection with incompatible devices. Appsys ProAudio www.appsys.ch Rolf Eichenseher info@appsys.ch Bullingerstr.

  • Page 49: Aes50

    All trademarks mentioned in this document are property of the respective owners. All information provided here is subject to change without prior notice. Document Revision: 10 · 2020-02-21 Referenced firmware version: 4.1 Copyright © 2016-2019 Appsys ProAudio · Printed in Switzerland...
  • Page 50 User's Manual The manufacturer: declares under sole responsibility that the products mentioned below: meet the requirements of the following standards: Therefore the product fulfills the demand of the following EC directives: Directive related to electrical equipment designed for use within certain voltage limits) Directive related to electromagnetic compatibility) The devices are marked accordingly.
