Bristan RS2 BSM C (D3) Installation Instructions & User Manual

Specifications
Cold Water Supply
Dynamic Water Pressure
Min: 0.2 bar
Max: 5.0 bar
3.0
2.0 2.0 3.0
1.0 4.0 4.0
1.0
0.2 5.0 0.2 5.0
Pressure Pressure
BAR BAR
Min: 5°C Max: 25°C
Maximum Static Pressure: 10.0 bar
Tools You'll Need
Phillips screwdriver Adjustable spanner
Prior to Installation
All products manufactured and supplied by Bristan are safe
provided they are installed, used correctly and receive regular
maintenance in accordance with these instructions.
This product has been tested to the Water Regulations Advisory
Scheme (WRAS) and satisfies the requirements of the Water
Supply (Water Fittings) Regulations 1999 and current bylaws.
For full Installation Requirements & Notes (IRN)
please visit wras.co.uk/directory.
We recommend isolation valves to be fitted to the inlet water
supplies to ensure ease of future maintenance.
Before installing these taps the water supply must be thoroughly
flushed in order to remove any swarf, solder etc.
This product must not be modified in any way as this will invali-
date the guarantee.
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product code: RS2 BSM C (D3)
Inlet Water Temperature Inlet Connections
Hot Water Supply
Max
65°C 80°C
25°C
60°C
5°C
60-65°C 80°C
recommended Maximum
Hexagonal Keys
Pack Contents
x1
x1
x1
x2
Spare Parts
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your product.

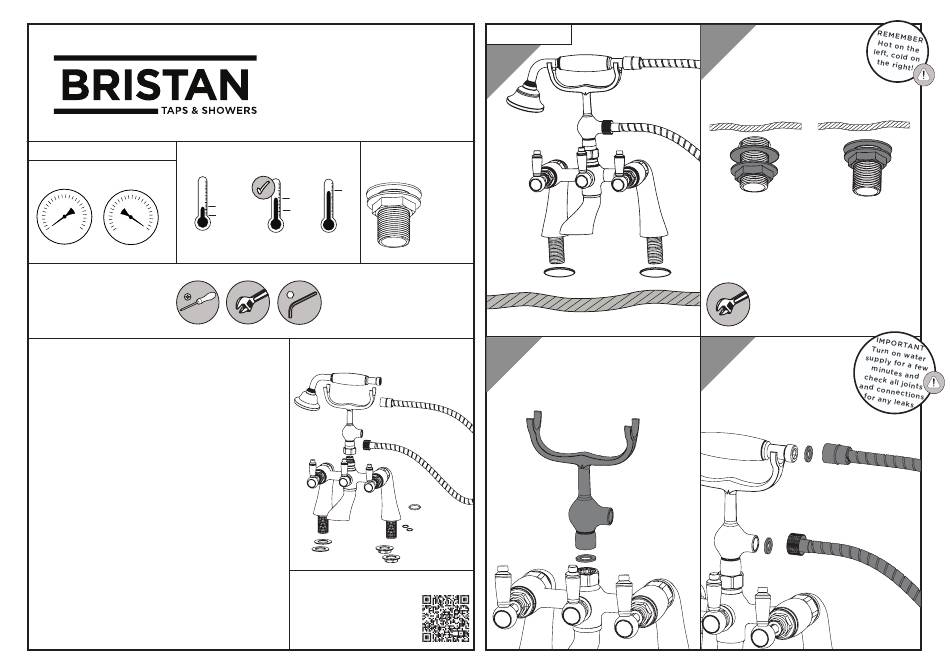

Installation
1
3/4" BSP
Fit the taps to the bath
3
Fit the cradle using
the large sealing
washer
x1
x1
x2
x2
2
Secure the taps to the bath by
using the washer and metal
backnut below the bath.
Connect the water supply.
4
Fit the hose to the cradle
& handset using the small
sealing washers.
