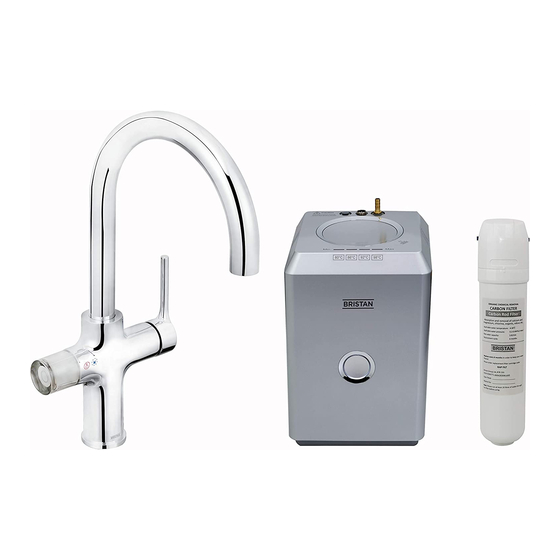

- Page 1 Installation Instructions and User Guide Gallery Rapid Boiling 4-in-1 ScaleFilter Sink Mixer Chrome Models Covered: GLL RAPSNK4 SF C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading tap and shower expert. We have designed this product to be easy to install and use. It has also been assessed to all of the relevant British Standards, and conforms to UKCA and CE Regulations. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualified plumber/electrician. - Page 4 Important Safety Information • The filter supplied must be replaced every six months for protection of your Boiling Water Tank. Failure to do so will invalidate your guarantee. • To protect against electric shock, do not place the cord, plugs or Boiling Water Tank near or in water/other liquids.
-
Page 5: Specification
IPX3 Protection Commercial Prior to Installation Pack Contents All products manufactured and supplied by Bristan are safe to use Not Required provided they are installed, operated correctly and receive regular maintenance in accordance with these instructions. This product has been designed to comply with the Water Supply (Water Fittings) Regulations 1999 and current bylaws. -
Page 6: Installation Requirements
Installation Requirements Positioning the Boiling Water Tank Place the tank in a suitable, well ventilated location that will not fall below 0°C. Ensure that the tank is installed vertically on Also ensure that the a level surface with adequate space around the Filter is in an easily tank. - Page 7 Installation Requirements IMPORTANT Connection Diagram The PRV, filter and isolation valves, are required for optimum performance and maintenance of your product Household Isolation Valves Pipework (not supplied) Supply T-Piece (not supplied) Pressure Cold Supply Reducing Valve Boiling Filter Inlet Water Electric Supply Connection...
-
Page 8: Installation
Installation Feed the pipes Secure the tap through the sink in place using hole and place the fixing kit. the tap body. Position the Boiling Water Tank in a suitable location. (See Installation Requirements). IMPORTANT Do not tamper with the PRV as Plumb the domestic this will affect the pipework to the location,... -
Page 9: Filter Commission
Filter Commissioning IMPORTANT Do not shake the test strip. Once developed, colours are stable for 1 minute. Draw a small amount of cold water. Using the test strip provided, dip into the water for 3 seconds and wait for 20 seconds to develop. Once developed, match the test strip results to the colour block on the back of the test strip packet. - Page 10 Installation Push the supplied pipework reducers into the filter head. Fix the filter head to the wall/surface. Ensure easy access, and that the connecting pipes from the tap and tank can reach. Cut the filter pipe tubes to size. Connect the filter Filter Inlet connection...
-
Page 11: Prime The Filter/Tank
Installation Connect the Electrical cable. Push on the Attach the silicon hose, filter sump trimming off any to the filter excess. head. Slide down the spring to secure in place. Prime the Filter/Tank Place a jug under the spout and expel all air from the system. -
Page 12: Operation
Operation Touch Sensitive Ring: Touch and Tap to select through 4 different temperature settings. Temperature Setting Bars Lit Bar Sequence Lit Bar Sequence Temperature Range Nominal Temperature 1st - 75-80°C 80°C 2nd - 81-86°C 86°C 3rd - 87-92°C 92°C 4th - 93-98°C 98°C All -... -
Page 13: General Cleaning
Operation Optimum Temperatures Nominal Suitable For Temperature 80°C Green Tea Instant Coffee, 86°C Oolong Tea Oolong Tea, 92°C Brewing Coffee Filtered Water 98°C Black Tea, Herbal Tea illuminates blue (Press For Filtered/Boiling Water On/Off) Boiling Water illuminates red (Press and Hold) Set up the Boiling Water Tank temperature (see pg10). -
Page 14: Maintenance
Maintenance Cleaning Outlet Using a suitable solution, scrub and wash Put the IMPORTANT the aerator aerator Isolate the until fully together water supply de-scaled. before starting! and screw Rinse in place. Remove the thoroughly. aerator. Long-Term Storage when Not in Use Using the Maintenance Key, flush water... - Page 15 Maintenance IMPORTANT Your filter Changing the Filter cartridge must be replaced every six months to ensure adequate performance and maintain the guarantee. Press Isolate the water supply and draw off all remaining water. Switch off the Boiling Water Tank. Turn on the water supply. Follow the Prime Filter/Tank section to re-prime the filter.
-
Page 16: Maintenance Schedule
We have included this maintenance schedule in order to help keep track of when to replace your filter; which can be ordered using RAP SCALE FILT on the Bristan website. Please ensure your plumber fills in the date of installation. Date Installed/Replaced... -
Page 17: Troubleshooting
Troubleshooting Symptom Cause Remedy Boiling Water Tank is empty at Follow the Preparation for Use section. first switch-on. No flow from the Boiling Water Function Boiling Water Tank isn’t Check connections for any leaks. holding water. Contact Customer Services. Boiling Water has been This is a safety feature to prevent the tank Boiling running for a long period... -
Page 18: Notes
Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. - Page 19 Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
