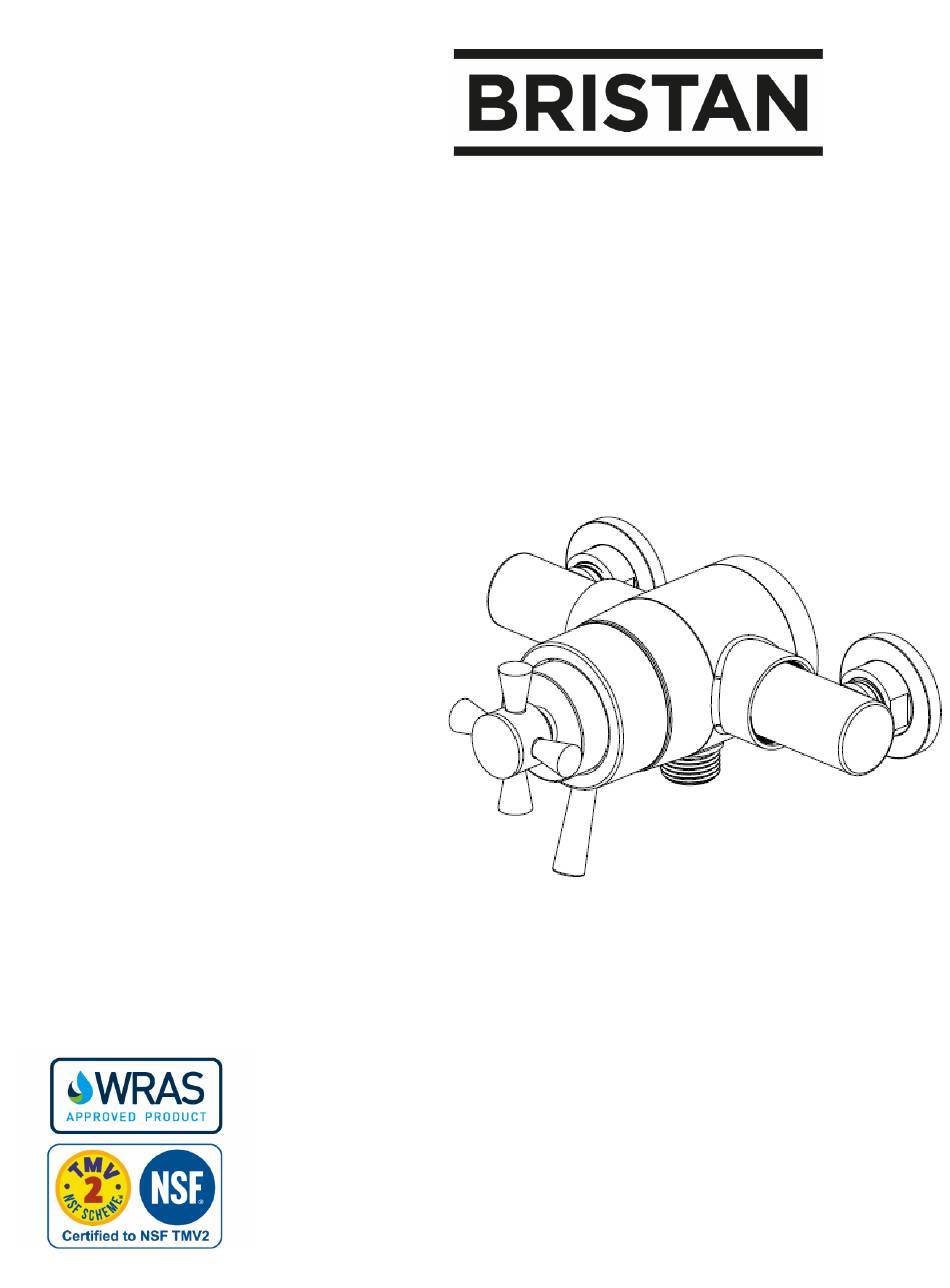

- Page 1 Installation Instructions and User Guide Rio Thermostatic Surface Mounted Shower Valve with Adjustable Riser Models covered: RO2 SHXAR C Please keep this booklet for future Reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0330 026 6273. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualified plumber. -
Page 4: General Information
General Information This product has been tested to the TMV2 scheme which complies with the BS EN 1287:1999 (LP) and BS 1111:1999 (HP) thermostatic mixing valve standards. It also satisfies the requirements of the water supply (water fittings) regulations 1999 and current bylaws. BS 6700 recommends the temperature of stored water should never exceed 65°C. -
Page 5: Product Features
Product Features 1. On/Off Control Turn the control anti-clockwise to turn the shower on and increase the flow of water. Turn the control clockwise to decrease the flow of water and turn the shower off. 2. Temperature Control Turn the control anti-clockwise to increase the temperature. -
Page 6: Specifications
Specifications Inlet Connections: 15mm compression, with adjustable centres. Operating Pressure Range: Min: 0.1 bar – Max: 5.0 bar – Maximum recommended imbalance between hot and cold supply should not exceed a ratio of 5:1. Maximum Static Pressure: 10.0 bar Maximum Outlet Temperature: Factory pre-set to 41ºC (can be re-set to suit site conditions). -
Page 7: Pack Contents
Pack Contents Shower Valve Covers x2 Filters x2 (pre-fitted) Green flow regulator (Pre-fitted) Yellow flow regulator (Pre-fitted) Backplate fixings x2 Riser rail fixings x4 Showerhead (single function) Sealing washers x2 Shower hose Riser rail Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. -
Page 8: Installation Requirements
Installation Requirements This shower valve must be installed in Important: If you install this shower compliance with current water regulations. valve with a gravity fed system, there must If you have any doubts about the water be a minimum head (vertical distance) regulation requirements contact your local from the underside of the cold water water services provider or use the services... - Page 9 Installation Requirements Instantaneous Water Heater Unvented System Cold mains supply Cold mains supply Pumped System Pumped System (with Essex flange) 1m min 1m min If less than 1m see note. 50mm Cold mains supply Cold mains supply Key: Isolating Reducing Shower Pump Essex...
- Page 10 Installation Requirements These fittings need to be installed in Size of tap or Vertical distance accordance with the following Installation combination fitting. of outlet above Requirements and Notes (IRN) to ensure spill-over level. they meet the requirements of the Water Supply (Water Fittings) Regulations 1999 1.
- Page 11 Installation Requirements Conditions of use for Type 2 (Thermostatic mixer) valves High Pressure Low Pressure Maximum Static Pressure (Bar) Flow Pressure, Hot & Cold (Bar) 0.5 to 5 0.1 to 1.0 Hot Supply Temperature (ºC) 55 to 65 55 to 65 Cold Supply Temperature (ºC) Equal to or less than 25 Equal to or less than 25...
-
Page 12: Flow Regulators
Flow Regulators Selecting Flow Regulators Supply System Flow Regulator Cold Supply Hot Supply Cold Comments Maximum pressure 0.1 to 1.0bar 0.1 to 1.0bar loss ratio 5:1 1 to 5 bar 1 to 5 bar or Green Yellow ♦ Use arrangement or pumped pumped (7 litre) - Page 13 Flow Regulators ♦ Regulators can be fitted if water economy is required. * Yellow (5 litre) regulator may not be necessary on some gas water heaters. Important: It is a requirement of Instantaneous Electric Heaters that a stable flow of water passes through the heater. This requirement can be satisfied by using a ‘flow stabiliser’...
-
Page 14: Prior To Installation
Prior to Installation This shower valve is supplied with two small and two large elbows to give varying centres. Note: The shower valve is supplied with the small elbows fitted. Choose elbow configuration to suit Inlet centres 2 x small elbows – 110-130 centres 2 x large elbows –... -
Page 15: Shower Valve
Installation – Shower Valve Before Installation Important: Water supplies to the mixer Flush through the pipework to ensure must be with hot on the left and cold on removal of debris. Turn off the mains the right when viewed from the front. water supply and close any isolating valves. - Page 16 Installation – Shower Valve cont. 3. Attach shower valve Place the shrouds over the water supply Re-attach the shower valve to the backplate by tightening the grub screw. pipes. Insert the 15mm hot and cold water supply pipes into the inlet connections and tighten the nuts.
-
Page 17: Installation
Installation – Adjustable Riser 1. Mark the position Note: If replacing an existing riser rail, check to see if the existing Position the assembled riser rail onto the wall, holes can be reused or covered by bearing in mind the highest maximum position the new wall brackets. - Page 18 Installation – Adjustable Riser cont. 3. Insert riser rail Bottom wall Push the riser rail down into the bottom Bracket wall bracket. Push the hose retainer and handset holder down onto the riser, ensuring they are the correct way up - as shown opposite. Then push the riser rail up into the top wall bracket.
-
Page 19: Operation
Operation On/Off Control Turn the control anti-clockwise to turn the shower on and increase the flow of water. Turn the control clockwise to Decrease the flow of water and Turn the shower off. Temperature Control Cold Turn the control anti-clockwise to increase the temperature. -
Page 20: Commissioning
Commissioning Commissioning notes for Thermostatic Mixing Valves The first step in commissioning a thermostatic mixing valve is to check the following: 1. The designation of the thermostatic mixing valve matches the application. 2. The supply pressures are within the valves operating range. 3. - Page 21 Build up of 5. Replace all seals and grease with a scale in particularly hard water areas silicon grease supplied by Bristan (part combined with constant use means you number: SP-495-0002) and carefully refit. may need to clean your showerhead once a week.
-
Page 22: Maintenance
Maintenance cont. Adjusting the Temperature hexagonal key and carefully pull the temperature handle and shroud off. The shower valve has been factory set 3. Push the temperature handle back with equal (balanced) hot and cold onto the cartridge spidle and turn to water supply pressures with the hot increase / decrease the temperature. -
Page 23: In-Service Testing
In-Service Testing Purpose The purpose of in service tests is to regularly monitor and record the performance of the thermostatic mixing valve. Deterioration in performance can indicate the need for service work on the valve and / or water supplies. Procedure Using the same measuring equipment or equipment to the same specification as used in the commissioning section, adjust the temperature of the mixed water in accordance... - Page 24 In-Service Testing cont. Annex F of D 08 (informative) Frequency of In-service tests General In the absence of any other instruction or guidance on the means of determining the appropriate frequency of in-service testing, the following procedure may be used: 6 to 8 weeks after commissioning carry out the tests in ‘In-Service Tests’.
-
Page 25: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or low Check showerhead, hose and Clean as necessary, refer to flow rate and / filters for any blockage. Maintenance section (pages 21-22). or varying Partially closed stop or service Open stop or service valve. temperatures. - Page 26 Troubleshooting Symptom Cause Remedy Maximum Maximum water temperature set Reset maximum water temperature. water incorrectly. Refer to ‘Maximum Temperature temperature Setting’ in Commissioning section too hot or (page 20) and Adjusting the cold. Temperature in Maintenance section (pages 21-22). Outlet water Inlet filter partially blocked.
-
Page 27: Guarantee
Guarantee At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind. To start your free guarantee visit www.bristan.com/register. - Page 28 Part Number: FI RO2 SHXAR C Issue: D4 Bristan Group Ltd. Birch Coppice Business Park Dordon Tamworth Staffordshire B78 1SG Web: www.bristan.com Email: enquire@bristan.com A Masco Company...
Need help?
Do you have a question about the RO2 SHXAR C and is the answer not in the manual?
Questions and answers

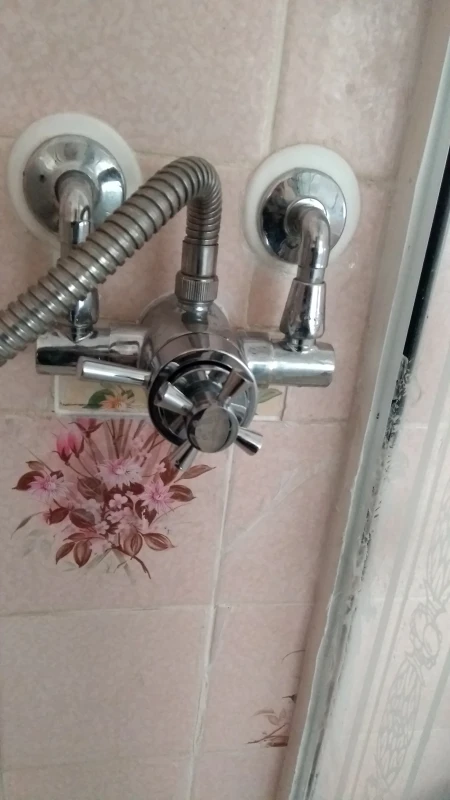

Re., Bristan, RIO 2, RO2 SHXAR C, The problem is, Getting either too Hot or too Cold water. But no mixture of hot and cold water discharge. The Mixer is connected, looking at shower wall, as, Hot Water outlet feed, from left to left port of the Mixer and the Right hand water outlet connected to left port of the Mixer. BUT * with shower hose outlet on THE TOP OF Mixer. * Q. would connecting the shower Mixer upside down, I,e, NOW with shower hose outlet at the bottom of the Mixer, would this install cure above mentioned problem? i.e. Get hot and cold discharging as per temperature controlling levers movements,? Thanks. R. Thakker Email, tandt520@yahoo.com Tel. 01323 520520
