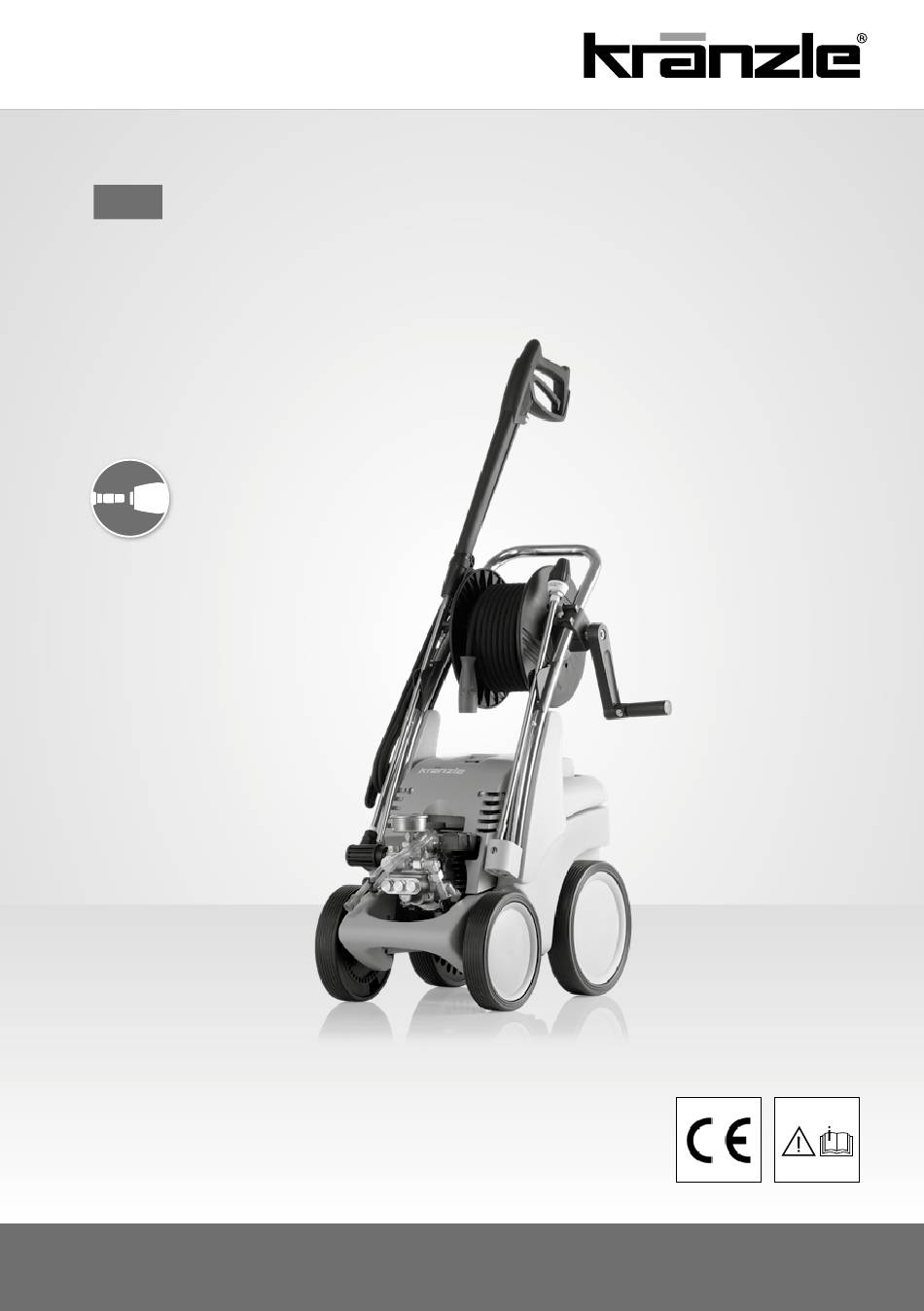

- Page 1 Operating manual High-pressure cleaner quadro 9/170 TST quadro 11/140 TST www.kraenzle.com...
- Page 2 Operating manual High-pressure cleaner quadro 9/170 TST quadro 11/140 TST Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Technical data will be found in the Spare parts list. Please be aware that the spare part list is part of the operating manual.
-
Page 3: Table Of Contents
Contents Explanatory symbols Dear customer: Explanatory symbols used in the operating manual Failure to observe this note may entail We would like to congratulate you on the purchase of your new high environmental damage. pressure cleaner and thank you for your confidence in our products! Note on the use of the high-pressure cleaner that failure to Your choice has fallen on an absolute quality product! adhere to the instructions may cause excessive wear or total... -
Page 4: Safety Notes
Safety notes Safety notes - This is prohibited! User operating the high-pressure cleaner should wear the necessary protective Replacement of the power supply cables is only permitted by use of an original clothing, i.e. waterproof clothing, rubber boots, safety goggles, ear protection power supply cable of the manufacturer and must be performed by a qualified headwear etc. - Page 5 Safety notes - This is prohibited! Safety notes - This is prohibited! Never direct the high-pressure jet at the high- Never direct the high-pressure jet at people or pressure cleaner itself! The high-pressure cleaner animals! Never direct the high-pressure jet at may not be placed within reach of the high- yourself or other persons, not even to clean pressure jet spray mist!
-
Page 6: Description Of High-Pressure Cleaner
Description of high-pressure cleaner Design: This is what you have purchased: The quadro 9/170 TST / quadro 11/140 TST cleaner is a mobile high-pressure cleaner with an advanced arrangement system. Please see construction scheme for more details. 1. Kränzle high-pressure cleaner 1. -
Page 7: General Rules
General rules General rules Intended use Oil change This high-pressure cleaner is to be used solely for high-pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents The first oil change should be carried out (e.g. with a foam injector or washing brush). after approximately 50 operating hours, then every year or after 250 operating Environmental, refuse disposal and water protection regulations... -
Page 8: Functional Details
Functional details Functional details Please note: Lack of water Insufficient quantity of electricity Lack of water occurs more often than you If there are too many collectors in your probably believe. The more powerful a high- proximity connected to the network at the pressure cleaner is the greater is the danger same time, the available voltage and the that a lack of water occurs. - Page 9 Functional details Functional details Water and cleaning system Pressure control valve/safety valve Water can be connected at mains pressure to the high-pressure pump. The pressure control valve/safety valve protects the high-pressure cleaner from A float valve in the water tank regulates the water inlet. Then, the water is sucked a build up of excess pressure, and is designed not to permit an excess pressure by the high-pressure pump from the water tank and supplied to the lance under to be selected for operation.
- Page 10 Functional details Putting into operation High-pressure hose and spray device For moving the high-pressure cleaner to the place of use, please release The high-pressure hose and spray device which are part of small quadro series locking break. equipment, are made of high quality material and engineered to conform with The high-pressure cleaner must the operating conditions of the high-pressure cleaner and are duly labeled.
- Page 11 Putting into operation Putting into operation Release fixation of hose drum. Check water inlet filter for cleanliness Unwind high-pressure hose straight prior to putting the high-pressure and without nooses. Completely cleaner into operation. unwind hose. The high-pressure hose Manually unscrew plug-in coupling. may leave signs of abrasion on some Take out the water inlet filter using floors.
-
Page 12: Putting Into Operation
Putting into operation Direct suction 10. Connect to circuit (see technical data). Direct water extraction Due to the suction capacity of its high-pressure pump (up to 2.5 m suction height, max. hose length 3 m) this high-pressure cleaner can suck in water for cleaning purposes from separate containers or ponds. -
Page 13: Applying Additives
Applying additives Taking out of operation Suction of additives Switch off the high-pressure cleaner Due to the water tank fitted to the small quadro series it is now possible to 2. Cut off the water supply directly suck the detergent into the high-pressure pump thus reducing output loss and increasing the efficiency considerably. -
Page 14: Small Repairs - Do It Yourself
Small repairs - do it yourself Small repairs - do it yourself Problem Problem No water from nozzle although the high-pressure cleaner is running. Irregular jet from nozzle. The stainless steel pressure gauge shows full pressure. The stainless steel pressure gauge shows low pressure. Cause Cause Most likely the nozzle is blocked. - Page 15 Small repairs - do it yourself Small repairs - do it yourself Problem Problem After closing the safety trigger gun the high-pressure cleaner After closing the safety trigger gun the high-pressure cleaner keeps switching on and off. keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure.
-
Page 16: Kränzle Accessories
Nozzle system 045 Splash guard With wheels L: 280 mm x W: 190 mm With plug-in nipple For all washing lances * Not suited for quadro 9/170 TST Item no.: 132600 Item no.: 41881 Pipe cleaning hose with nozzle In different lengths... -
Page 17: Eu Declaration Of Conformity
Kränzle high-pressure cleaner (= product) applies to material faults only such as material and manufacturing defects. Nominal flow: quadro 9/170 TST: 540 l/h quadro 11/140 TST: 660 l/h Defects attributable to long and frequent use of the product, typically arising... -
Page 18: Inspection Reports
Inspection reports Inspection reports High-pressure cleaners for industrial use have to be checked by an expert every High-pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. - Page 19 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
