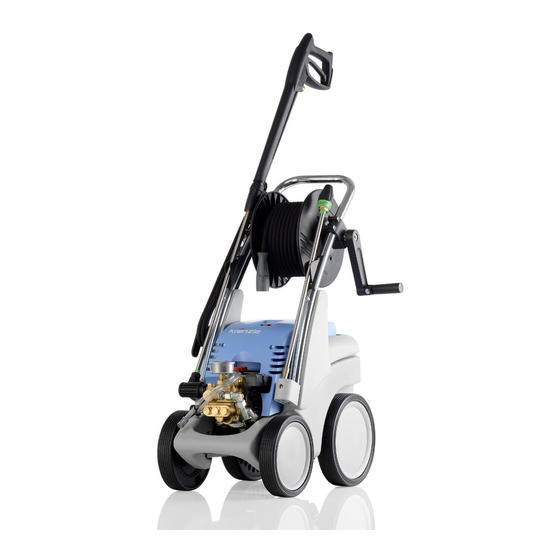

Summary of Contents for Kränzle Quadro 11/140 TST

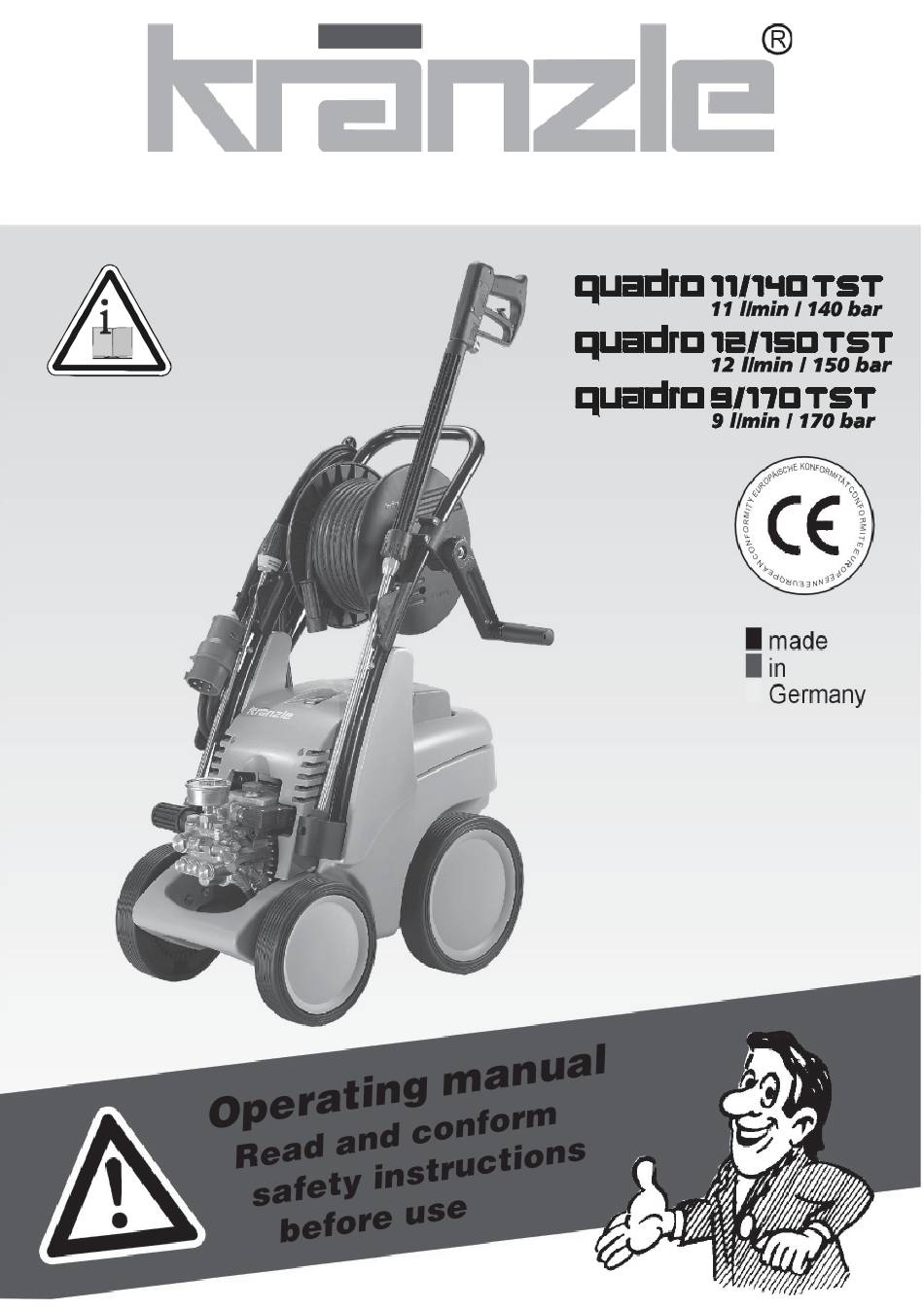

  • Page 1 High Pressure Cleaners...

  • Page 2: Technical Data

    Technical data Technical quadro quadro quadro data 9/170 TST 11/140 TST 12/150 TST Operating pressure, steplessly 10 - 170 bar 10 - 140 bar 10 - 150 bar adjustable max. permissible 190 bar 155 bar 165 bar overpressure Water output 8.7 l/min 11.0 l/min 12.0 l/min...

  • Page 3: Table Of Contents

    Description Dear customer We would like to congratulate you on your new high pressure cleaner with integrated water tank and to thank you for the purchase. To ease your introduction to the use of the cleaner, we have provided the following pages of explanations, tips and hints, which we ask you to read before using it for the first time.

  • Page 4: Connection Principle And Components

    Description quadro 9/170 quadro 11/140 230V/50Hz quadro 12/150 400V/50Hz Connection principle The KRÄNZLE quadro 9/170; 11/140 and 12/150 - high pressure cleaners are mobile machines with hose drum and 20 m industrial hose. The connection principle can be seen from the illustration. Components 1 Water inlet connection with filter 6 Detergent valve...

  • Page 5: Water System

    Description Water supply system The water must be lead to the high pressure cleaner under pressure (2 – 8 bar ad- mission pressure). A float valve regulates the water inlet. Then, the water is sucked by the high pressure pump from the water tank and supplied to the lance under the set pressure.

  • Page 6: High Pressure Hose And Spray Device

    Description High pressure hose and spraying device The high pressure hose and spraying device supplied with the machine are made of high grade material. They are also optimized for the machine and marked as re- quired by the appropriate regulations. If replacement parts are required, only such parts that are authorized by the manufacturer and which bear the markings required by the appropri- ate regulations may be used.

  • Page 7: Total Stop System

    Description With Total-Stop-System The Kränzle quadro 9/170 TS, 11/140 TS und 12/150 TS - high pressure cleaners are equipped with a Total-Stop-System. If the main switch is switched on, the motor is started by means of a pressure switch as soon as the gun is operated. The pump quickly reaches the set operating pressure.

  • Page 8: Electrical Connection

    Description quadro 9/170 quadro 11/140 230V/50Hz quadro 12/150 400V/50Hz Electrical connection The machine is supplied with an electrical power cord with plug. The mains plug must be fitted to a standard grounded socket with a 30mA residual current operated device. The socket must be protected with a 16A delay action fuse on the mains side.

  • Page 9: Brake

    Description Brake Brake not applied Brake applied Brief operating instructions : 1. Connect high pressure hose with spray gun. 2. Connect to suitable water supply. 3. Connect current (see page 8). 4. Switch on machine, operate gun and start cleaning. 5.

  • Page 10: This Is What You've Purchased

    This is what you’ve purchased: 1. Dirtkiller Lance with nozzle protection and high pressure nozzle Flat jet 25° 2. Spray gun PICO with insulated handle and screw connection 3. KRÄNZLE - High pressure cleaners quadro 9/170, 11/140 and 12/150 TST with hose drum and 15 m HP hose NW 6 with steel reinforcement 4.
  • Page 11 Pr e e e e e par par a a a a a tion f tion f tion f or use tion f or use or use or use tion f or use To control the high pressure cleaner 1. the foot against the tilt bases and 2.

  • Page 12: Preparation For Use

    Preparation for use 2. Connect the high pressure lance or dirtkiller to the spray gun. 3. Unroll hose without kinks and connect with handgun and pump. Use max. 20 m HP hose. 4. Connection of high pressure hose from device to lance.

  • Page 13: External Suction

    Pr e e e e e par par a a a a a tion f tion f tion f tion f or use or use or use or use tion f or use 5. The machine must be connected to the water line with cold water or up to 60°...

  • Page 14: When Using Detergents

    To shut down the pump Suction of detergents Put chemistry sieve number 5 into the detergent container. Open the detergent valve (6), then the detergent is sucked in. When closing the deter- gent valve, the chemistry supply is automatically closed. Allow detergent to act and then wash off. (see page 5).

  • Page 15: Safety Notes „This Is Prohibited

    Safety notes As to the recoil - see notice on page 2! Apply the safety catch on the spray gun after each use, in order to prevent uninten- tional spraying!
  • Page 16 This is prohibited ! Never direct the water jet at people or animals ! Do not damage the power cable or repair it incorrectly! Never pull the high pressure hose if it has formed kinks or “nooses”! Never pull the hose over sharp edges !
  • Page 17 This is prohibited ! Never allow children to use the high pressure clea- ner ! Never direct the water jet at the machine itself ! Never direct the water jet at a po- wer socket !

  • Page 18: Additional Accessories

    Additional accessories for ... (on demand) Rotary scrubbing brush Order No. 41.050 1 Drain and pipe cleaning hose 10 m - Order No. 41.058.1 15 m - Order No. 41.058 Environmental, refuse disposal and water protection regulations must be observed when using the accessories!
  • Page 19 ... further combination possibilities Car cleaning, glass, caravan, boat etc.: rotary washing brush with 40 cm extension and ST 30 nipple M22 x 1.5 Cleaning pipes, channels and drains: pipe cleaning hose with KN nozzle and ST 30 nipple M22 x 1.5 Cleaning cars and all smooth surfaces: brush with ST 30 nipple M22 x 1.5 Rotary point sprayer for extreme soiling:...

  • Page 20: Small Repairs

    Small repairs The nozzle is blocked! No water but the gauge shows full pressure ! but if you You should now have a Rinse the hose through only get a few powerful stream of first. drops of water water, from the lance remove the lance and clean Using the flat spray lance you...
  • Page 21 ...do it yourself ! Nozzle dirty or sticky! Pressure gauge does not show full pressure The high-pressure hose vibrates. Water comes out in spurts. If you do not use the high-pressure cleaner for some time the valves can stick. the gauge When a valve is blocked, or the high shows little...

  • Page 22: Spare Parts Lists

    Complete Assembly...
  • Page 23 Schmutz-Killer 030 bei quadro 9/170 TST 1 41.073 8 Kunststoffschraube 4,0 x 16 43.417 41.2 Schmutz-Killer 045 Kunststoffschraube 5,0 x 30 41.412 bei quadro 11/140 TST und 12/150 TST 1 41.072 5 Lanzenständer 46.502 Hochdruckschlauch 15 m NW6 40.170 Köchertopf 46.503 O-Ring 13 x 2,6 13.272...
  • Page 24 Water inlet and brake...
  • Page 25 Spare parts list KRÄNZLE quadro 9/170 - 11/140 - 12/150 TST Water inlet and brake Description Qty. Ord.-No Revisionsdeckel 46.512 Dichtung Revisionsdeckel 46.513 Sterngriffschraube M6 46.031 Schwimmerventil 46.250 1 Mutter R3/4“ 46.258 Kunststoffschraube 5x14 43.426 Scheibe 5,3 DIN9021 50.152 Zugfeder 46.020 Deckel Bremse 46.016...
  • Page 26 Pump motor...
  • Page 27 quadro 9/170 - 11/140 TST Spare parts list KRÄNZLE quadro 9/170 - 11/140 TST Pump motor Description Qty. Ord.-No Ölgehäuse für AP 46.530 1 Motorgehäuse mit Stator Wechselstrom 46.528 Rotor mit Motorwelle Wechselstrom 43.316 Paßfeder 6 x 6 x 20 41.483 1 Motor-Lager B-Seite 6205 - 2Z 43.317...
  • Page 28 Pump motor...
  • Page 29 quadro 12/150 TST Spare parts list KRÄNZLE quadro 12/150 TST Pump motor Description Qty. Ord.-No Ölgehäuse für AP 46.530 1 Motorgehäuse mit Stator Drehstrom 46.529 Rotor mit Motorwelle Drehstrom 43.316 Paßfeder 6 x 6 x 20 41.483 1 Motor-Lager B-Seite 6205 - 2Z 43.317 Motor-Lager A-Seite Schulterlager 7304 BEP1 41.027...
  • Page 30 Pump...
  • Page 31 quadro 9/170 TST Spare parts list KRÄNZLE 9/170 TS T Pump with plunger, diameter 15 mm Description Qty. Ord.-No Gehäuseplatte für 15 mm Plunger 42.906 Öldichtung 15 x 24 x 7 42.907 O-Ring Viton 88 x 2 41.021 1 Plungerfeder 41.033 Federdruckscheibe 15 mm 42.909...
  • Page 33 41.033 Federdruckscheibe 18 mm 41.034 Plunger 18 mm 41.032 1 Sprengring 18 mm 41.035 Taumelscheibe 12,5° (quadro 11/140 TST) 1 46.542-12,5 Taumelscheibe 13,75° (quadro 12/150 TST) 1 46.542-13,75 bitte Taumelwinkel mit angeben Axial-Rollenlager 3-teilig 46.543 Innensechskantschraube M 8 x 30 41.036 1...
  • Page 34 Unloader valve and pressure switch...
  • Page 35 O-Ring 16 x 2 13.150 Führungsteil Steuerstößel 15.009 1 O-Ring 13,94 x 2,62 42.167 O-Ring 12,3 x 2,4 15.017 O-Ring 12.256 O-Ring 14 x 2 43.445 Edelstahlsitz 14.118 O-Ring 3,3 x 2,4 12.136 Sicherungsring 13.147 Stützscheibe 15.015 1 Edelstahlkugel 8,5 mm 13.148 Edelstahlfeder 15.016...
  • Page 36 Valve housing...
  • Page 37 Spare parts list KRÄNZLE 9/170 TS T Valve housing APG for plunger diameter 15 mm...
  • Page 38 Valve housing...
  • Page 39 Spare parts list KRÄNZLE 11/140 - 12/150 TS T Valve housing APG for plunger diameter 18 mm Ventilgehäuse 42.160 3 Leckagering 15 mm 3 42.905 Ventilstopfen 41.714 Zwischenring 15 mm 3 42.904 1 Ventilstopfen mit R1/4" IG 42.026 1 O-Ring 6 x 3 1 14.121 Dichtstopfen M 10 x 1 43.043...
  • Page 40 Hose drum...
  • Page 41 Spare parts list KRÄNZLE quadro 9/170 - 11/140 - 12/150 TST Hose drum Description Qty. Ord.-No Description Qty. Ord.-No Drehgelenk 40.167 Seitenschale 46.201 Trommelteil 46.202 Anschlussteil 40.308 1 Innensechskantschraube M 4 x 25 40.313 Distanzring 40.316 Lagerklotz mit Bremse 40.306 1 O-Ring 6,86 x 1,78 40.585 Lagerklotz links...
  • Page 42 Gun and lance Description Qty. Ord.-No Rohranschlußteil R1/4" 12.125 incl. Pos. 3, 4, 21 Scheibe 5,3 DIN9021 50.152 Abzug-Hebel kpl. 12.144 1 Rohr kunststoffumspritzt 15.004 2 bds. R 1/4" AG Überwurfmutter ST 30 M22 x 1,5 IG 13.276 1 Außen-Sechskant-Nippel R 1/4" IG 13.277 1 O-Ring 9,3 x 2,4 13.273...
  • Page 43 Dirtkiller Spare parts list KRÄNZLE quadro 9/170 - 12/150 TST Dirtkiller Description Qty. Ord.-No Sprühkörper 41.520 O-Ring 6,88 x 1,68 41.521 Düsensitz 41.522 Nozzle 03 (quadro 9/170) 41.523 4 Nozzle 045 (quadro 11/140, 12/150) 41.523 Stabilisator 41.524 O-Ring 40.016 1 Sprühstopfen M12x1 IG 41.526 Rohr 400 mm lang;...

  • Page 44: Wiring Diagram

    On-Off switch with 14,5 Ampere overload protection Pressure switch Pump motor Inlet line via 230 V / 50 Hz 3x 1.5mm² 230 V / 50 Hz Wiring diagram for KRÄNZLE quadro 9/170 + 11/140 TST 230 Volt / 50 Hz...
  • Page 45 On-Off switch with 8,5 Ampere overload protection Contactor Excess current actuator Pressure switch Inlet line via 4x1.5mm² 400 V / 50 Hz Pump motor 3x 400 V / 50 Hz Wiring diagram for KRÄNZLE quadro 12/150 TST 400 Volt / 50 Hz...

  • Page 46: General Rules / Oil Change / Guarantee

    General rules Inspections The machine must be inspected according to the “Guidelines for Liquid Spray Devices” at least once every 12 months by a qualified person, to ensure that continued safe operation is guarateed. The results of the inspection are to be recorded in writing. (see pages 48-49) Accident prevention The machine is designed for accidents to be impossible if used correctly.

  • Page 47: Declaration Of Conformity

    Elpke 97 . 33605 Bielefeld EC declaration of conformity We hereby declare, Kränzle quadro 9/170 TST that the high-pressure models: Kränzle quadro 11/140 TST Kränzle quadro 12/150 TST (techn. documentation available from): Manfred Bauer, Fa. Josef Kränzle Rudolf-Diesel-Str. 20, 89257 Illertissen...

  • Page 48: Inspection Report

    Inspection report for HP cleaners Professionally used high pressure cleaners must be inspected by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Owner: _____________________ Type: ____________ Built: ________...
  • Page 49 Inspection report for HP cleaners Professionally used high pressure cleaners must be inspected by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Owner: _____________________ Type: ____________ Built: ________...
  • Page 50 Warranty Warranty This warranty covers material and/or workmanship related defects only and does not extend to ordinary wear. Machine must be operated according to enclosed operating instructions which are part of present warranty conditions. All products sold directly to private customers are warrantied for a period of 24 months, whereas the warranty period for industrial purchases is limited to 12 months.
  • Page 51 Notes...
  • Page 52 Reprint only allowed with the authorization of As date of 29. 05. 2007...

This manual is also suitable for:

Quadro 12/150 tstQuadro 9/170 tst
