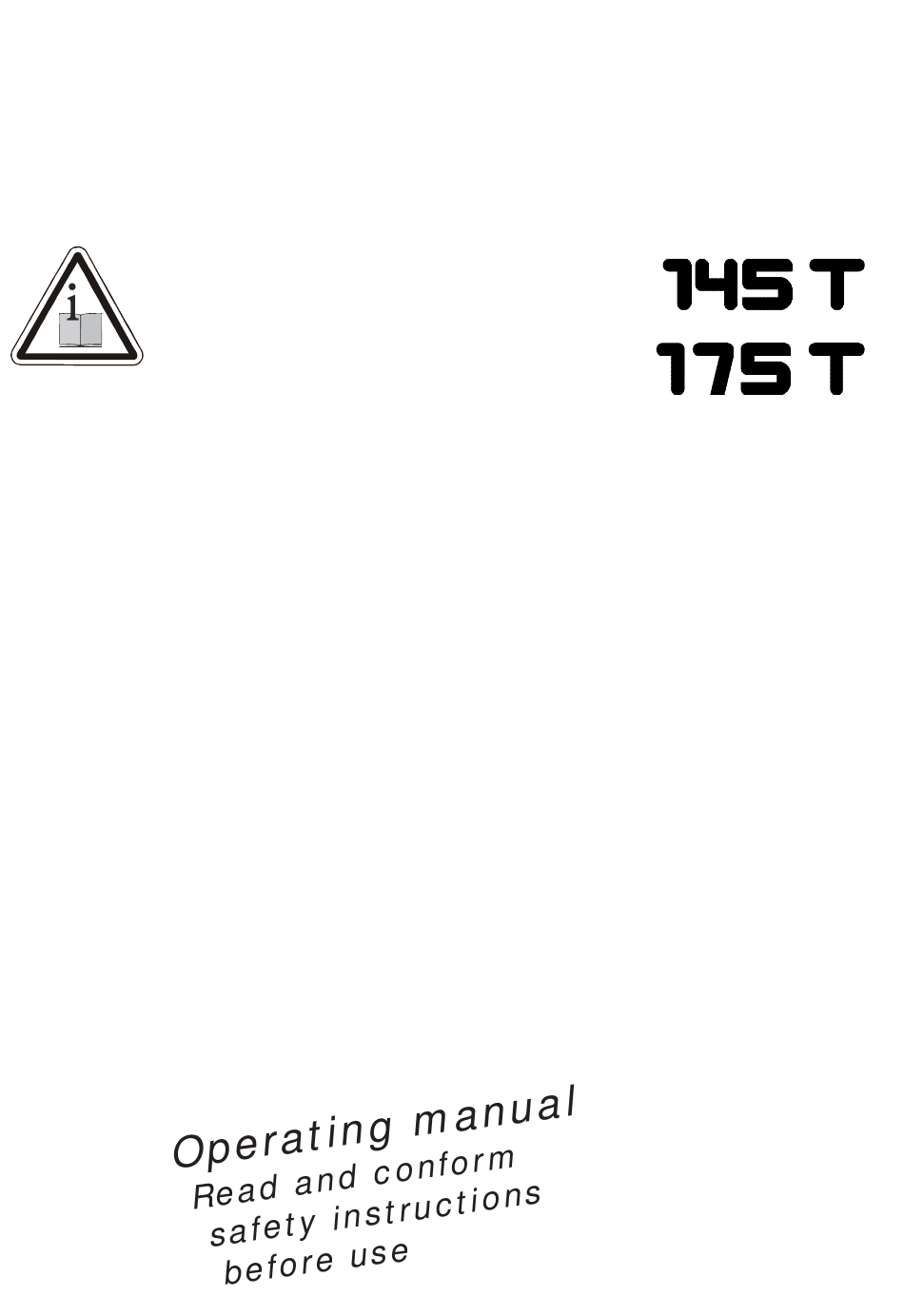

- Page 1 High Pressure Cleaners...
-
Page 2: Dear Customer
Description Dear customer We would like to congratulate you on your new high pressure cleaner with integrated undercarriage and integrated hose drum and to thank you for the purchase. To ease your introduction to the use of the cleaner, we have provided the following pages of explanations, tips and hints, which we ask you to read before using for the first time. - Page 3 Description Water 400 V 230 V Construction The KRÄNZLE 145 T + 175 T - high pressure cleaners ar mobile machines. The design can be seen from the diagram. Item 1 Water inlet connection with filter 6 High pressure injector for cleaning 2 Suction hose with filter (special agents accessory) Order no.
-
Page 4: Water And Cleaning System
Description Water and Cleaning System Water can be connected at mains pressure to the high pressure pump or it can be sucked directly from a storage tank. The water is then forced under pressure by the high pressure pump to the lance. The high pressure jet is formed by the nozzle at the end of the lance. - Page 5 Description Motor protection switch The motor is protected from overload by a motor protection switch, which automati- cally cuts out the motor in the event of overload. However should the switch trip frequently, the cause of the malfunction should be located and rectified (see page Replacements and inspection work should only be performed by qualified persons when the machine is disconnected from the power supply, i.e.
-
Page 6: Electrical Connection
Description Electrical connection The machine is supplied with an electrical power cord with plug. The mains plug must be fitted to a standard grounded socket with a 30mA residual current operated device. The socket must be protected with a 16A delay action fuse on the mains side. KRÄNZLE 145 T - 230 Volt 50 Hz KRÄNZLE 175 T - 400 Volt 50 Hz When using an extension cable, this must have an earthed lead which is... -
Page 7: High Pressure Hose And Spray Device
Description Brief operating instructions are fitted to the machine. Numbers 1-6. When operating your high pressure cleaner pay attention that it is in a horizontal position. 1. Connect the high pressure hose with spray gun and machine. 2. Connect to suitable water supply. 3. -
Page 8: Safety Notes
Safety notes As to the recoil - see notice on page 2! Apply the safety catch on the spray gun after each use, in order to prevent unintentional spraying! Always aim the underbody lance. Note when using an angled underbody lance, like for example lance No. - Page 9 This is what you’ve purchased: 1. Dirtkiller with nozzle 045 Spray lance with regulator and high pressure nozzle, flat spray 25045 2. Spray gun with insulated pistol grip and screw connection 3. KRÄNZLE - High pressure cleaners 145 T, 175 T, 205 T with hose drum and 15 m high pressure hose with steel reinforcement NW 6.
- Page 10 Assemble and furnish your high pressure cleaner Put high pressure cleaner into upright position. Now pull the cable holder from the hexagon on the cable drum. Remove the screw from the brass element. Put the crank on the hexagon and fasten with the screw. Suspension for dirtkiller Hose reel with...
-
Page 11: Preparation For Use
Preparation for use 1. Put high pressure cleaner into Do not replace the plug ! horizontal position! THE HIGH PRESSURE CLEANER IS ONLY TO BE OPERATED IN HORIZONTAL POSITION ! 2. Connect the high pressure lance to the spray gun. 3. - Page 12 Preparation for use 4. The machine can be connected to a pressurised water line with cold or 60 °C hot water(see page 2). Ensure that the water supply is clean when sucking from external sources. The hose cross section must be at least 1/2” = 12.7 mm (free passage).
-
Page 13: Adjusting The Pressure
Preparation for use Adjusting the pressure This is accomplished by turning the handwheel. The default setting is maximum pressure. When using cleansing agents: Unwind HP-hose completely. Place chemical filter no. 5 in the reservoir with the cleansing agent. Turn on Vario-Jet No.4 to to enable the injector to induct the cleansing agent. - Page 14 This is prohibited ! Never allow children to use the high pressure cleaner ! Never direct the water jet at the machine itself ! Never direct the water jet at a po- wer socket !
- Page 15 This is prohibited ! Never direct the water jet at people or animals ! Do not damage the power cord or repair it incorrectly ! Never pull the high pressure hose if it has formed kinks or “nooses”! Never pull the hose over sharp edges !
- Page 16 Additional KRÄNZLE-accessories for Rotary scrubbing brush Order No. 41.050 1 Drain and pipe cleaning hose 10 m - Order No. 41.058 1 15 m - Order No. 41.058 Underbody lance, new Order No. 41.075 1 Sandblaster Order No. 41.068 1 Flat brush Order No.
- Page 17 ... for further combination possibilities Car cleaning, glass, caravan, boat etc. rotary washing brush with 40 cm exten- sion and ST 30 nipple M 22 x 1,5 Cleaning pipes, channels and drains: pipe cleaning hose with KN nozzle and ST 30 nipple M 22 x 1,5 Underbody cleaning of cars, trailers and equipment: lance 90 cm with high pressure nozzle and ST 30 nipple M 22 x 1,5.
-
Page 18: Small Repairs
Small repairs - You only get a weak flow of water or no water at all! The pressure gauge shows a 10% higher pressure than the working pressure. The injector Now turn on the water and may be dirty you should get a powerful and you stream of water should first... -
Page 19: Do-It-Yourself
Do it yourself! The nozzle is blocked! No water but the gauge shows full pressure ! You should now have a but if you only Rinse the hose through powerful stream of get a few first. drops from water, lance Using the flat spray lance you remove the lance and clean only have to clean the front... - Page 20 Small repairs - Do it yourself! Nozzle dirty or sticky! Pressure gauge does not show full pressure. The high-pressure hose vibrates. Water comes out in spurts. If you do not use the high-pressure cleaner for some time the valves can stick the gauge When a valve is blocked, or the high...
- Page 21 Dirtkiller...
-
Page 22: Complete Assembly
Complete assembly... - Page 23 KRÄNZLE 145 T / 175 T / 205 T...
- Page 24 Valve housing 18 mm...
- Page 25 KRÄNZLE 145 T / 175 T...
- Page 26 Transmission unit 18 mm...
- Page 27 KRÄNZLE 145 T / 175 T...
- Page 28 A.C. motor...
- Page 29 KRÄNZLE 145 T...
- Page 30 Three-phase current motor...
- Page 31 KRÄNZLE 175 T...
- Page 32 Hose drum...
- Page 33 KRÄNZLE 145 T / 175 T...
-
Page 34: Gun With Lance
Gun with lance... - Page 35 KRÄNZLE 145 T / 175 T...
-
Page 36: Wiring Diagram
Wiring diagram bn = brown bl = blue schw = black rt = red Terminal strip ge = yellow gn = green ws = white Weber-Unimat WT 22 - 551 13,5A excess current release Motor-Stator Wiring diagram for KRÄNZLE 145 T 230 Volt / 50 Hz Switch Weber - Amazonas 8 A for K175 T Wiring diagram for KRÄNZLE 175 T... -
Page 37: General Rules
General rules Inspections The machine must be inspected according to the “Guidelines for Liquid Spray Devices” at least once every 12 months by a qualified person, to ensure that continued safe operation is guarateed. The results of the inspection are to be recorded in writing. -
Page 38: Ec Declaration Of Conformity
High-pressure-cleaners Hochdruckreiniger Nettoyeurs à Haute Pression I. Kränzle GmbH Elpke 97 . 33605 Bielefeld EC declaration of conformity We hereby declare, Kränzle 145 T that the high-pressure models: Kränzle 175 T (techn. documentation available from): Manfred Bauer, Fa. Josef Kränzle Rudolf-Diesel-Str. - Page 39 Notes...
- Page 40 Reprint only allowed with the authorization of As date of 08.09./2005...
