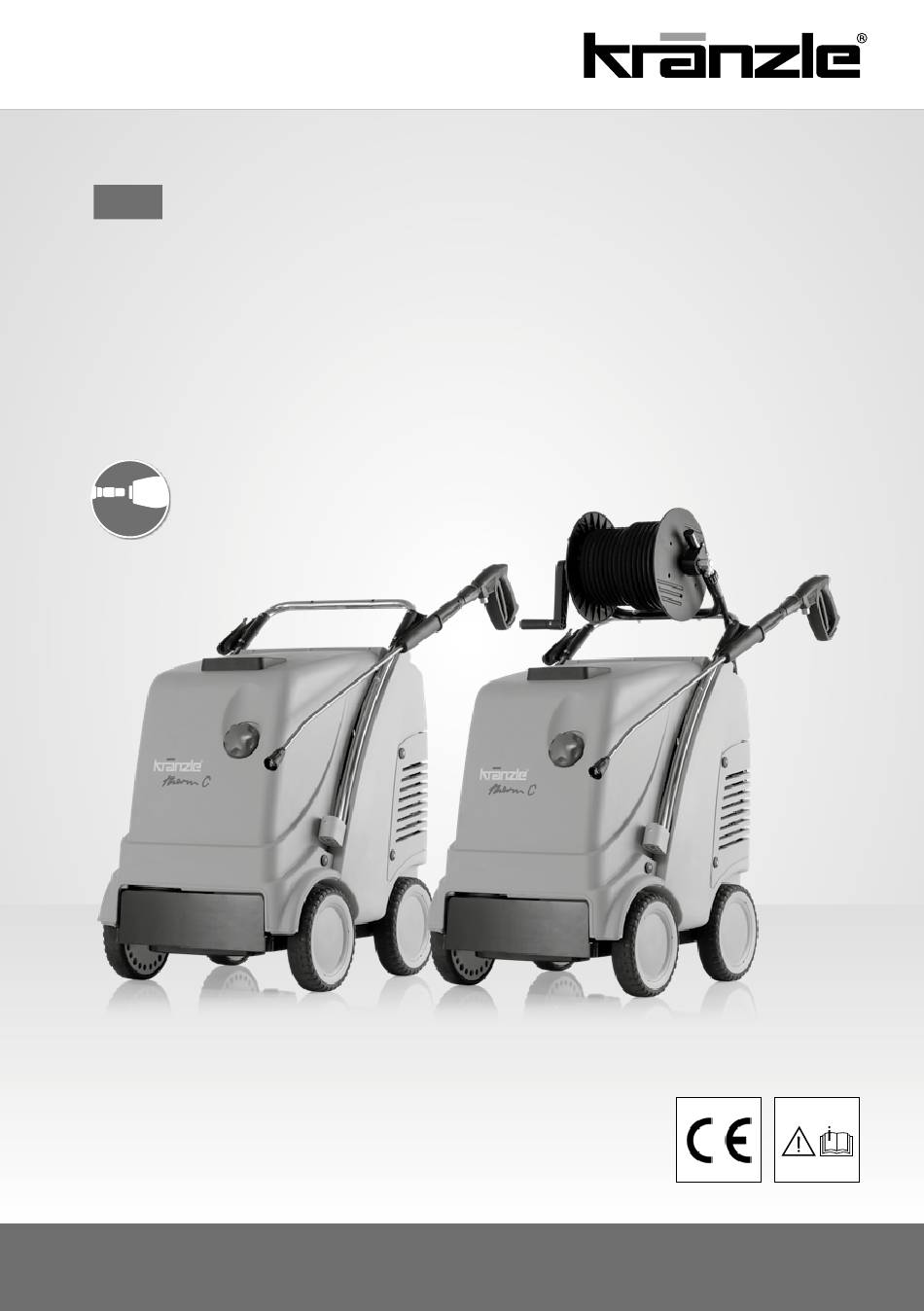

- Page 1 Operating manual Cold and hot water high-pressure cleaner therm C 11/130, therm C 11/130 T, therm C 13/180, therm C 13/180 T, therm C 15/150, therm C 15/150 T www.kraenzle.com...
- Page 2 Operating manual Cold and hot water high-pressure cleaner therm C 11/130, therm C 11/130 T, therm C 13/180, therm C 13/180 T, therm C 15/150, therm C 15/150 T Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Technical data will be found in the Spare parts list.
-
Page 3: Table Of Contents
Contents Explanatory symbols Dear customer, Explanatory symbols used in the operating manual Failure to observe this note may entail we would like to congratulate you on the purchase of your new high-pressure environmental damage. cleaner and thank you for your confidence in our products! Note on the use of the high-pressure cleaner that failure to Your choice has fallen on an absolute quality product! adhere to the instructions may cause excessive wear or total... - Page 4 Explanatory symbols Explanatory symbols Explanatory symbols used on the control panel Attention: For safety reasons switch off main Step 3: switch after completing the washing procedure Connect to circuit (see technical data). (= supply isolation) Prior to putting the machine into operation make sure that all safety instructions be observed.
-
Page 5: Safety Notes
Safety notes Safety notes - This is prohibited! User operating the high-pressure cleaner should wear the necessary protective Replacement of the power supply cables is only permitted by use of an original clothing, i.e. waterproof clothing, rubber boots, safety goggles, ear protection power supply cable of the manufacturer and must be performed by a qualified headwear etc. - Page 6 Safety notes - This is prohibited! Safety notes - This is prohibited! Never allow children or untrained persons to Apply the safety catch on the safety trigger gun use the high-pressure cleaner or to play with it! after each use in order to prevent unintentional Children must be kept under supervision to spraying! prevent them from playing with the equipment.
- Page 7 Description of high-pressure cleaner Description of high-pressure cleaner Design: therm-C-series without hose drum This is what you have purchased: therm-C-series without hose drum The therm-C-series is a mobile high-pressure cleaner with an advanced arrangement system. Please see construction scheme for more details. 1.
- Page 8 13. Small removable cap stainless steel pipe and quick release coupling 14. Filler aperture for fuel therm C 11/130 T, therm C 13/180 T: 15. Drain plug for fuel Ord. no.: 12430-045 therm C 15/150 T: Ord. no.: 12430-055 16. Exhaust gas outlet 17.
-
Page 9: Description Of High-Pressure Cleaner
Description of high-pressure cleaner Description of high-pressure cleaner Design: Operating panel Design: Interior fitting The therm-C-eries provides a clear operating panel. The therm-C-series is a cold and hot water high-pressure cleaner. Please see construction scheme for more details. It provides a variety of functions and electronics located in the interior of the high-pressure cleaner. -
Page 10: Intended Use
General rules General rules Intended use Oil change This high-pressure cleaner is to be used solely for high-pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents The first oil change should be carried out (e.g. with a foam injector or washing brush). after approximately 50 operating hours, then every year or after 500 operating Environmental, refuse disposal and water protection regulations... -
Page 11: General Rules
General rules General rules Decalcifying Fuel System Calcified heat exchanger use an unnecessary amount of energy because the Your fuel may contain particles of dirt, or impurities or water may get into the tank water can only be heated slowly and the excess pressure valve feeds a part of during refuelling. -
Page 12: Functional Details
Functional details Functional details Adjusting ignition electrodes Heat exchanger The water is forced through a heating coil by the high-pressure pump. The fuel pump sucks the fuel oil from the fuel tank via a fuel filter an and trans- ports it to the injection nozzle. The heat exchanger is heated by a high-pressure fan heater. -
Page 13: Electrical Connection
IEC60364-1. Water supply therm C 11/130, therm C 11/130 T, therm C 13/180, therm C 13/180 T, Please pay attention to the regulations of your waterworks company! therm C 15/150, therm C 15/150 T:... -
Page 14: Motor Protection Switch
Functional details Functional details Water and cleaning system Pressure control valve/safety valve Water can be connected at mains pressure to the high-pressure pump. The pressure control valve/safety valve protects the high-pressure cleaner from A float valve in the water tank regulates the water inlet. Then, the water is sucked a build up of excess pressure, and is designed not to permit an excess pressure by the high-pressure pump from the water tank and supplied to the lance under to be selected for operation. -
Page 15: Putting Into Operation
Functional details Putting into operation Safety shutdown Install the mains cable holders with the screws. If the high-pressure cleaner is accidentally not turned off after use or the trigger gun with safety catch is not used for 20 minutes, the high-pressure cleaner auto- matically changes into safety state by deactivation. - Page 16 Putting into operation Putting into operation Prior to insertion, check plug coupling connection of lance for Neither set up or operate the therm-C-series in rooms where there cleanliness (sand, dirt ..) and use clear water to clean, if necessary. is a risk of fire or explosion nor put it into puddles. Do not use the Impurities may damage the sealing in the plug coupling.
-
Page 17: Usage As A Cold Water High-Pressure Cleaner
Putting into operation Putting into operation 16. Adjust operating pressureinfinitely 12. For getting access to the interior fitting of the high-pressure cleaner, loosen using the rotary handle. The maximum screws at the covers. Remove caps pressure is factory-set. carefully. Close caps properly prior to starting the washing procedure. -
Page 18: Putting Into Operation
Putting into operation Notes Usage as a hot water high-pressure cleaner Detergent valve must be closed. Set desired temperature at the thermostat. (Min. temperature 40 °C) Switch on high-pressure cleaner with opened safety trigger gun. Bleeding of the high-pressure cleaner: Pull and release trigger of safety trigger gun several times. -
Page 19: Applying Additives
Applying additives Taking out of operation Suction of additives Switch off the high-pressure cleaner Due to the water tank fitted to the therm-C-series it is now possible to directly 2. Cut off the water supply suck the detergent into the high-pressure pump thus reducing output loss Open the safety trigger gun catch briefly until the pressure is released and increasing the efficiency considerably. -
Page 20: Particular Rules, Directives And Inspections
Particular rules, directives and inspections Care and Maintenance Inspections performed by Kränzle The machine must be disconnected from the power supply when servi- cing work is being carried out. The main switch should be in position "0" - Measurement of earth line resistance and the plug out of the socket. -
Page 21: Small Repairs - Do It Yourself
Small repairs - do it yourself Small repairs - do it yourself Problem Problem No water from nozzle although the high-pressure cleaner is running. No water from nozzle although the high-pressure cleaner is running. The stainless steel pressure gauge shows full pressure. The stainless steel pressure gauge shows full pressure. - Page 22 Small repairs - do it yourself Small repairs - do it yourself Problem Problem After closing the safety trigger gun the high-pressure cleaner After closing the safety trigger gun the high-pressure cleaner keeps switching on and off. keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure.
- Page 23 Small repairs - do it yourself Small repairs - do it yourself Summary of additional causes of malfunction Oil drops from the transmission Check/replace oil seals. Check plunger and plunger guides. Problem Possible cause High-pressure cleaner start/stop Water supply High-pressure cleaner Check return body and O-ring in does not switch off unloader of the valve housing.
-
Page 24: The Control Board
Small repairs - do it yourself Small repairs - do it yourself The control board Problem Possible cause The control board is equipped with two LEDs for trouble shooting. Heating (burner) LED D3: Fuel pump/fan operates, Set water temperature is reached. Increase 1. - Page 25 Small repairs - do it yourself Notes Excess temperature High-pressure cleaner turns There is an overpressure sensor on the rear off on its own. of the control cabinet inside the high- pressure cleaner. Red: Overtemperature tripped, let the Überhitzung / Overheating Heißwasserbetrieb erst device cool off, hot-water operation not nach Abkühlung möglich.
-
Page 26: Kränzle Accessories
Kränzle accessories Kränzle accessories Rotating washing brush Stainless steel pipe 1000 mm Brush head ∅ 180 mm Foam lance Nozzle size 3.2 mm 1 litre, with container With plug-in nipple With plug-in nipple Ord. no.: 410507 Ord. no.: 135303 Underbody lance Stainless steel pipe 1000 mm Splash guard... -
Page 27: Eu Declaration Of Conformity
Noise pressure level, typical: therm C 11/130, therm C 11/130 T: 88 dB (A) use the product for the intended purpose – may result in damage occurring therm C 13/180, therm C 13/180 T: 91 dB (A) to the product. -
Page 28: Inspection Reports
Inspection reports Inspection reports High-pressure cleaners for industrial use have to be checked by an expert every Inspection data determined value set value 12 months! Inspection report on annually carried out Labour Safety Inspection High-pressure nozzle (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection Operating pressure ....bar sheet serves as proof for the completion of the retest and must be kept carefully!) Switch off pressure ....bar... -
Page 29: Kränzle Final Report
Kränzle Final report Kränzle Final report High-pressure cleaner (device type): Result of flue gas analysis ..................Steam phase checked Detergent valve checked Start/Stop automatic and re-run delay checked All lines connected Fuel shortage switch checked Hose clamps tight Thermostat function checked Screws all installed and tightened Brake function checked Ignition cable plugged in... - Page 30 Notes Notes...
- Page 31 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales@ kraenzle.com Made Germany www.kraenzle.com...
