Summary of Contents for Kränzle therm-RP 900 AT

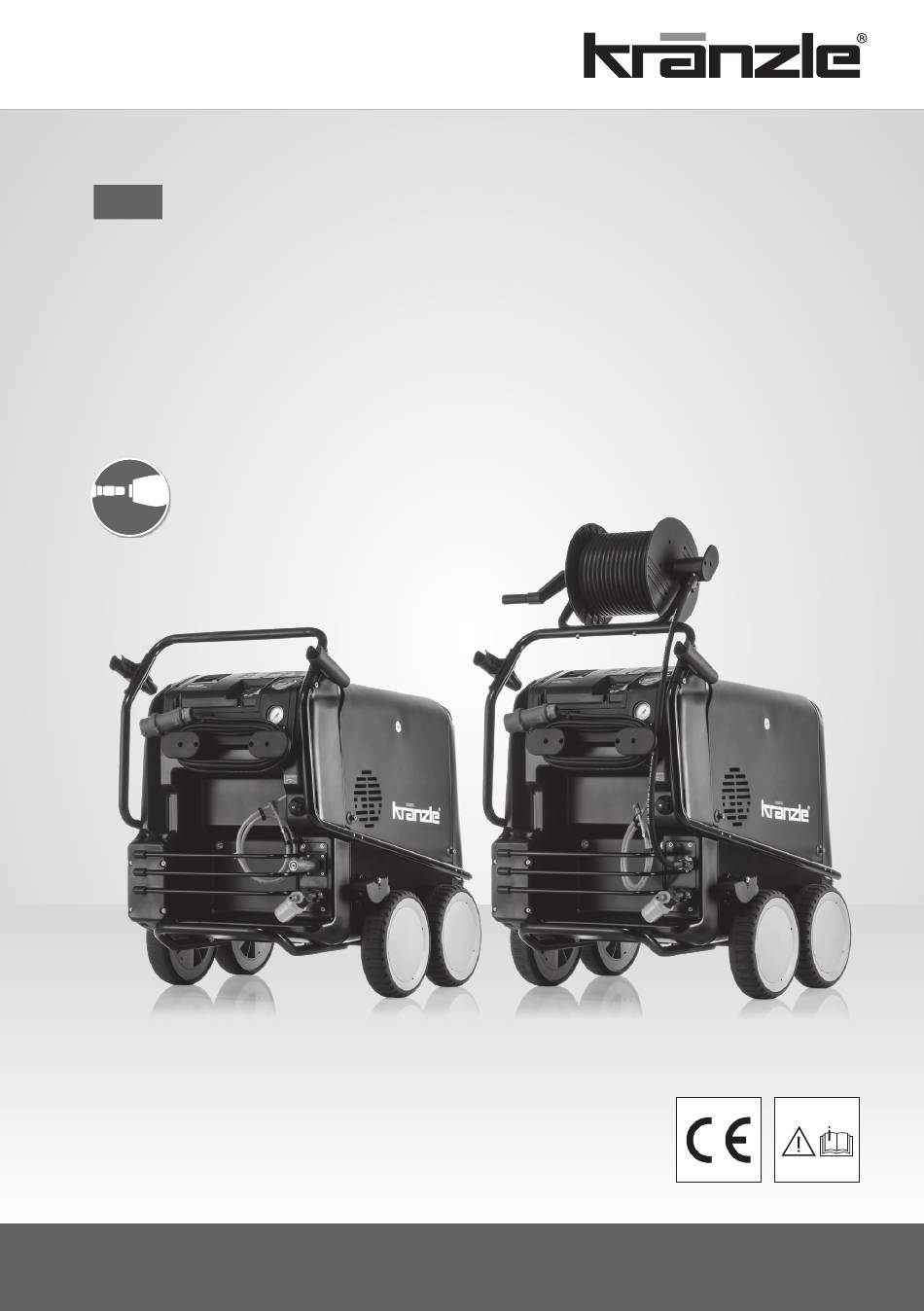

- Page 1 Operating manual Cold and hot water high-pressure cleaner therm-RP 900 T therm-RP 900 AT www.kraenzle.com...
- Page 3 Operating manual Cold and hot water high-pressure cleaner therm-RP 900 T therm-RP 900 AT Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Technical data will be found in the Spare parts list.
-
Page 4: Table Of Contents
Contents Dear customer, we would like to congratulate you on the purchase of your new high-pressure cleaner and thank you for your confidence in our products! Your choice has fallen on an absolute quality product! Kränzle high-pressure cleaners are characterized by their high suitability for everyday use. -
Page 5: Explanatory Symbols
Explanatory symbols Explanatory symbols used in the operating manual Failure to observe this note may entail environmental damage. Note on the use of the high-pressure cleaner that failure to adhere to the instructions may cause excessive wear or total breakdown of the therm-RP-series. Warning! Failure to observe this note may result in serious injuries! Explanatory symbols affixed to the high-pressure cleaner... - Page 6 Explanatory symbols Explanatory symbols used on the control panel Attention: For safety reasons switch off main switch after completing the washing procedure (= supply isolation) Prior to putting the machine into operation make sure that all safety instructions be observed. Prior to putting the machine into operation make sure that all safety instructions be observed.
- Page 7 Explanatory symbols Step 3: Connect to circuit (see technical data). Step 4: Usage as a cold water high-pressure cleaner. Switch on high-pressure cleaner at main switch with opened safety trigger gun. Start with cold water cleaning process. Step 5: Usage as a hot water high-pressure cleaner. Switch on high-pressure cleaner at heater switch with opened safety trigger gun.
-
Page 8: Safety Notes
Safety notes User operating the high-pressure cleaner should wear the necessary protective clothing, i.e. waterproof clothing, rubber boots, safety goggles, ear protection headwear etc. It is prohibited to use the high-pressure cleaner in close vicinity to people lacking suitable protective clothing. If noise exceeds the maximum allowed levels, users and others in the vicinity must wear suitable ear protection. - Page 9 Safety notes - This is prohibited! Replacement of the power supply cables is only permitted by use of an original power supply cable of the manufacturer and must be performed by a qualified electrician. Safety devices serve to protect the user and must never be de-activated or their function bypassed.
- Page 10 Safety notes - This is prohibited! Never allow children or untrained persons to use the high-pressure cleaner or to play with it! Children must be kept under supervision to prevent them from playing with the equipment. Never direct the high-pressure jet at the high- pressure cleaner itself! The high-pressure cleaner may not be placed within reach of the high- pressure jet spray mist!
- Page 11 Safety notes - This is prohibited! Apply the safety catch on the safety trigger gun after each use in order to prevent unintentional spraying! Never direct the high-pressure jet at people or animals! Never direct the high-pressure jet at yourself or other persons, not even to clean clothing or shoes.
-
Page 12: Description Of High-Pressure Cleaner
Description of high-pressure cleaner Design: therm-RP 900 T with hose drum The therm-RP-900 T is a mobile high-pressure cleaner with an advanced arrangement system. Please see construction scheme for more details. 1. Ergonomically shaped handle 2. Holder for trigger gun with safety catch with lance 3. - Page 13 Description of high-pressure cleaner This is what you have purchased: therm-RP 900 T with hose drum 1. Kränzle high-pressure cleaner therm-RP 900 T 2. Trigger gun with safety catch and plug coupling 3. Stainless steel lance with flat jet nozzle and quick release coupling 4.
- Page 14 Description of high-pressure cleaner Design: therm-RP 900 AT with automatic hose reel The therm-RP-900 AT is a mobile high-pressure cleaner with an advanced arrangement system. Please see construction scheme for more details. 1. Ergonomically shaped handle 2. Holder for trigger gun with safety catch with lance 3.
- Page 15 Description of high-pressure cleaner This is what you have purchased: therm-RP 900 AT with automatic hose reel 1. Kränzle high-pressure cleaner therm-RP 900 AT 2. Trigger gun with safety catch and plug coupling 3. Stainless steel lance with flat jet nozzle and quick release coupling 4.
- Page 16 Description of high-pressure cleaner Construction: Operating panel The therm-RP-series provides a clear operating panel. Please see construction scheme for more details. 1. Master switch (appliance ON-OFF) 5. Digital thermostat for adjusting water temperature 2. Heating switch (burner ON/OFF) 6. Pressure gauge (fuel pressure) 3.
- Page 17 Description of high-pressure cleaner Construction: Interior fittings - therm-RP 900 T The devices of the therm-RP-series are cold and hot water high-pressure cleaners. They offer many functions and electronics inside the high-pressure cleaners. Please see construction scheme for more details. 1.
- Page 18 Description of high-pressure cleaner Construction: Interior fittings - therm-RP 900 AT The devices of the therm-RP-series are cold and hot water high-pressure cleaners. They offer many functions and electronics inside the high-pressure cleaners. Please see construction scheme for more details.
- Page 19 Description of high-pressure cleaner...
-
Page 20: General Rules
General rules Intended use This high-pressure cleaner is to be used solely for high-pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents (e.g. with a foam injector or washing brush). Environmental, refuse disposal and water protection regulations must be observed! Inspections The high-pressure cleaner was finally inspected by the company Kränzle... -
Page 21: Oil Change
General rules Oil change The first oil change should be carried out after approximately 50 operating hours, then every year or after 500 operating hours. If the oil turns grey or white, you must change the oil. Remove the large right-hand hood of the high-pressure cleaner. - Page 22 General rules Decalcifying Calcified heat exchanger use an unnecessary amount of energy because the water can only be heated slowly and the excess pressure valve feeds a part of the water back into the high-pressure pump circuit. The calcified heat exchanger is known by the increased pipeline resistance. Check pipeline resistance by disconnecting the lance from the trigger gun with safety catch and switching the high-pressure cleaner on.
-
Page 23: Fuel System
General rules Fuel System Your fuel may contain particles of dirt, or impurities or water may get into the tank during refuelling. To protect the fuel pump the high-pressure cleaner is equipped with a fuel filter. Check it regularly for dirt and exchange if applicable. Check the tank for impurities on a regular basis. -
Page 24: Functional Details
Functional details Thermostat The thermostat controls the spray water tempera- ture. After you switch on the device, "888" appears in both displays for approx. 1 second as a test of the functioning of the displays. The thermostat also monitors the minimum fuel level in the tank ... -
Page 25: Operating Hour Meter
Functional details This means that the temperature increases far above the desired value or falls far below the desired value. The innovative new percent mode now lets the user specify the switching duration of the heater in percent using the "+" and "-" but- tons (Pos. -
Page 26: Adjusting Ignition Electrodes
Functional details Adjusting ignition electrodes For a smooth ignition, the setting of the ignition electrode must be controlled regularly. Excess temperature sensor As an additional safety device the high-pres- sure cleaner is equipped with an excess tem- perature sensor inside the chimney. Should the safety devices as e.g. -
Page 27: Heat Exchanger
Functional details Heat exchanger The water is forced through a heating coil by the high-pressure pump. The fuel pump sucks the fuel oil from the fuel tank via a fuel filter an and trans- ports it to the injection nozzle. The heat exchanger is heated by a high-pressure fan heater. -
Page 28: Water Supply
Functional details Please note: Lack of water Lack of water occurs more often than you probably believe. The more powerful a high- pressure cleaner is the greater is the danger that a lack of water occurs. If there is only an insufficient amount of water available, cavitation (water-gas mixture) arises inside the high-pressure pump, which is normally... -
Page 29: Electrical Connection
Functional details Insufficient quantity of electricity If there are too many collectors in your proximity connected to the network at the same time, the available voltage and the current intensity may decline. Consequently the motor of the high-pressure cleaner does not start or even blows. -
Page 30: Water And Cleaning System
Functional details Water and cleaning system Water can be connected at mains pressure to the high-pressure pump. A float valve in the water tank regulates the water inlet. Then, the water is sucked by the high-pressure pump from the water tank and supplied to the lance under pressure. -
Page 31: Pressure Control Valve/Safety Valve
Functional details Pressure control valve/safety valve The pressure control valve/safety valve protects the high-pressure cleaner from a build up of excess pressure, and is designed not to permit an excess pressure to be selected for operation. The limit nut on the handle is sealed with a spray coating. -
Page 32: Safety Shutdown
Functional details Safety shutdown If the high-pressure cleaner is accidentally not turned off after use or the trigger gun with safety catch is not used for 20 minutes, the high-pressure cleaner auto- matically changes into safety state by deactivation. By operating the main switch once more, the device is activated again. -
Page 33: Putting Into Operation
Putting into operation Install the water inlet filter at the water inlet. Prior to putting into operation fill fuel oil into the fuel tank. (fuel oil EL DIN 51 603 or diesel fuel DIN EN 590). Filling quantity 25 liters. For moving the high-pressure cleaner to the place of use, please release locking break. - Page 34 Alternatively, please also find non-marking high-pressure hoses in our range. therm-RP 900 AT Mount the grey rotating screw connec- tion of the high-pressure hose onto the trigger gun incorporating a safety catch. Afterwards screw together ensuring a snug and pressure-tight fit.
- Page 35 Putting into operation The plug coupling must not be actuated/handled during operation! High risk of injury! Prior to insertion, check plug coupling connection of lance for cleanliness (sand, dirt ..) and use clear water to clean, if necessary. Impurities may damage the sealing in the plug coupling. The high-pressure hose may be extended up to a maximum total length of 40 m.
- Page 36 Putting into operation 11. For getting access to the interior fitting of the high-pressure cleaner, loosen screws at the cover. Remove cap carefully. Close cap properly prior to starting the washing procedure. 12. Each time check oil level at the oil dipstick prior to putting the high- pressure cleaner into operation.
- Page 37 Putting into operation Usage as a cold water high-pressure cleaner Detergent valve must be closed. Switch on high-pressure cleaner with opened trigger gun (trigger pulled). Bleeding of the high-pressure cleaner: Pull and release trigger of trigger gun with safety catch several times. Start with cleaning process.
- Page 38 Putting into operation Usage as a hot water high-pressure cleaner Detergent valve must be closed. Switch on high-pressure cleaner with opened trigger gun (trigger pulled). Bleeding of the high-pressure cleaner: Pull and release trigger of trigger gun with safety catch several times. Set desired temperature at the thermostat.
-
Page 39: Applying Additives
Applying additives Suction of additives Due to the water tank fitted to the therm-RP-series it is now possible to directly suck the detergent into the high-pressure pump thus reducing output loss and increasing the efficiency considerably. Place chemicals filter into container with additives. -
Page 40: Taking Out Of Operation
Taking out of operation Switch off the high-pressure cleaner 2. Cut off the water supply Open the safety trigger gun catch briefly until the pressure is released 4. Apply safety catch on the trigger gun Remove high-pressure hose and safety trigger gun 6. -
Page 41: Particular Rules, Directives And Inspections
Particular rules, directives and inspections Inspections performed by Kränzle - Measurement of earth line resistance - Measurement of voltage and current - Inspection of tension consistency with +/- 1530 V - Pressure check of heating coil at 300 bar - Visual and functional check as per the inspection sheet provided - Exhaust fume analysis (see test strips provided) Guidelines for liquid sprayers The machine conforms with the "Guidelines for liquid sprayers". -
Page 42: Care And Maintenance
Care and Maintenance The machine must be disconnected from the power supply when servicing work is being carried out. The main switch should be in position "0" and the plug out of the socket. Weekly, or after approx. 50 hours of operation Oil level Check the oil level of the high-pressure pump at the oil gauge rod. - Page 43 Notes...
-
Page 44: Small Repairs - Do It Yourself
Small repairs - do it yourself Problem No water from nozzle although the high-pressure cleaner is running. The stainless steel pressure gauge shows full pressure. Cause Most likely the nozzle is blocked. The stainless steel pressure gauge shows full pressure, but from the nozzle comes only little water or no water at all. - Page 45 Small repairs - do it yourself Problem Irregular jet from nozzle. The stainless steel pressure gauge shows low pressure. Cause Most likely the valves are soiled or sticky. The stainless steel pressure gauge shows low pressure despite fully turned up pres- sure regulation.
- Page 46 Small repairs - do it yourself Problem After closing the safety trigger gun the high-pressure cleaner keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure. Possible cause No. 1 Leckage. Having closed the trigger gun with safety catch, the high-pressure cleaner must shut down and the stainless steel pressure gauge must show the permitted deactivation...
- Page 47 Small repairs - do it yourself Problem After closing the safety trigger gun the high-pressure cleaner keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure. Possible cause No. 2 The non-return valve is defective. Proceeding: Switch off the high-pressure cleaner and pull plug from socket.
- Page 48 Small repairs - do it yourself Summary of additional causes of malfunction Problem Possible cause Water supply Water tank runs over Float valve is dirty/defect Water tank does not fill completely Float valve is defect, water inlet filter dirty, water intake too low High-pressure pump does not suck Valves sticky or are dirty, suction hose leaks, detergent valve is open or leaks, Check hose...
- Page 49 Small repairs - do it yourself Oil drops from the transmission Check/replace oil seals. Check plunger and plunger guides. High-pressure cleaner start/stop High-pressure cleaner Check return body and O-ring in does not switch off unloader of the valve housing. Test: Jumper pressure switch Check pressure switch, check micro switch, check cable connections.
- Page 50 Small repairs - do it yourself Displayed malfunctions Display in the field Cause Action Soll Water temperature at heating Operate appliance without chamber outlet above 147 °C heating „Heating OFF“ until the temperature has dropped below 147 °C. Switch main switch „OFF“ and then back „ON“...
- Page 51 Small repairs - do it yourself Problem Possible cause Heating (burner) Fuel pump/fan operates, Set water temperature is reached. Increase but burner does not heat temperature on thermostat. Open trigger gun with safety catch, until temperature drops. Fuel filter/fuel nozzle is dirty. Fuel pump/fan does not operate.
-
Page 52: Kränzle Accessories
Kränzle accessories Rotating washing brush Stainless steel pipe 1000 mm Brush head ∅ 180 mm Nozzle size 3.2 mm With plug-in nipple Ord. no.: 410507 Underbody lance Stainless steel pipe 1000 mm Nozzle system 4007 With anti-twist protection With plug-in nipple Ord. - Page 53 Kränzle accessories Foam lance 1 litre, with container With plug-in nipple Ord. no.: 135303 Splash guard L: 280 mm x W: 190 mm For all washing lances Ord. no.: 132600 Suction hose with suction filter With return valve Hose length 3 m Ord.
-
Page 54: Eu Declaration Of Conformity
We here by declare that the design of therm-RP 900 T the high-pressure cleaners: therm-RP 900 AT Nominal flow: therm-RP 900 T: 900 l/h therm-RP 900 AT: 900 l/h technical specifications Fa. Josef Kränzle GmbH & Co. KG available from: Manfred Bauer Rudolf-Diesel-Str. 20, 89257 Illertissen... -
Page 55: Warranty
Warranty The warranty obligation of Josef Kränzle GmbH & Co. KG towards the dealer from whom you have purchased this Kränzle high-pressure cleaner (= product) applies to material faults only such as material and manufacturing defects. Defects attributable to long and frequent use of the product, typically arising due to the age of the high-pressure cleaner and intensity of its use are defined as normal wear in respect of product components. -
Page 56: Inspection Reports
Inspection reports High-pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Kränzle-test seals: Ord. - Page 57 Inspection reports Inspection data determined value set value High-pressure nozzle Operating pressure ....bar Switch off pressure ....bar Smoke spot number ......acc. to Bacharach scale -value ......% CO Efficiency rating ..... % Protective conductor resistance not exceeded/value Insulation Leakage current Safety trigger gun locked Inspection result (check) The high-pressure cleaner was checked by an expert according to the...
-
Page 58: Kränzle Final Report
Kränzle Final report High-pressure cleaner (device type): ..................All lines connected Hose clamps tight Screws all installed and tightened Ignition cable plugged in Visual check carried out Brake function checked Leak test Water tank filled and checked Water inlet checked for tightness Float valve function checked High-pressure cleaner checked for tightness under pressure... - Page 59 Kränzle Final report Result of flue gas analysis Steam phase checked Detergent valve checked Start/Stop automatic and re-run delay checked Fuel shortage switch checked Thermostat function checked Brake function checked Water inlet temperature in °C 5 6 7 8 9 10 11 12 13 14 15 Water outlet temperature in °C 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90 Fuel pressure in bar...
- Page 60 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
