10.0 JC CAM Software Instruction

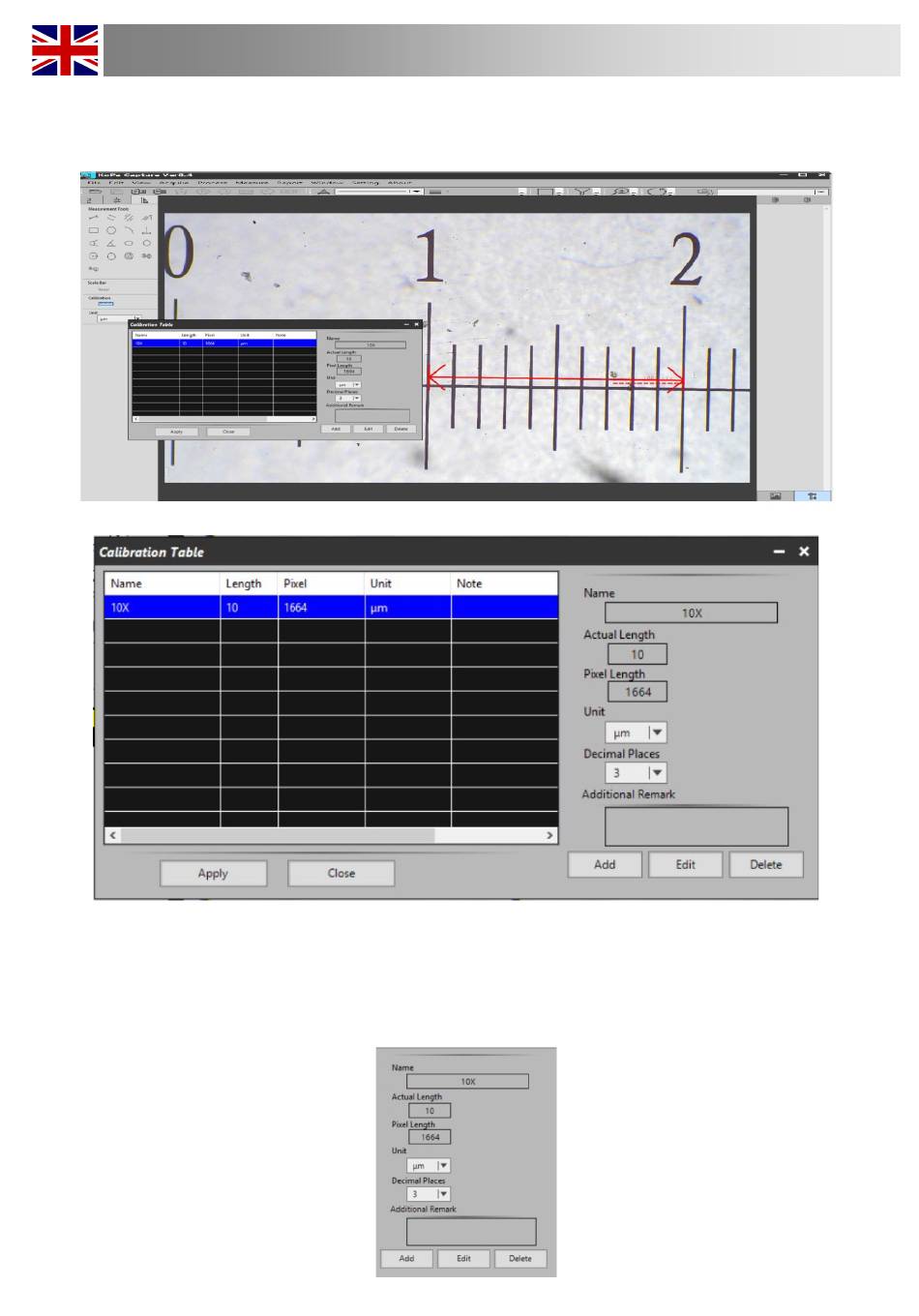

Step 3: Setting scale ruler. Draw a straight line on the scale ruler of benchmark image, pixel value will be
automatically updated at "pixel length" on calibration table. Shown as below figure :
When drawing the straight line, the longer scale length, the more accurate results. For example, 10 scale
lengths accuracy will be better than 1 scale length.
Step 4: Input the actual length and unit of the ruler in the calibration table. As shown in the figure
below:
