JC LAB J-SCOPE BIMC-A03A-W3 Manual page 15

7.0 Connection JC CAM for Windows PC
We have two connection method for you to choose which one suitable.
USB Mode

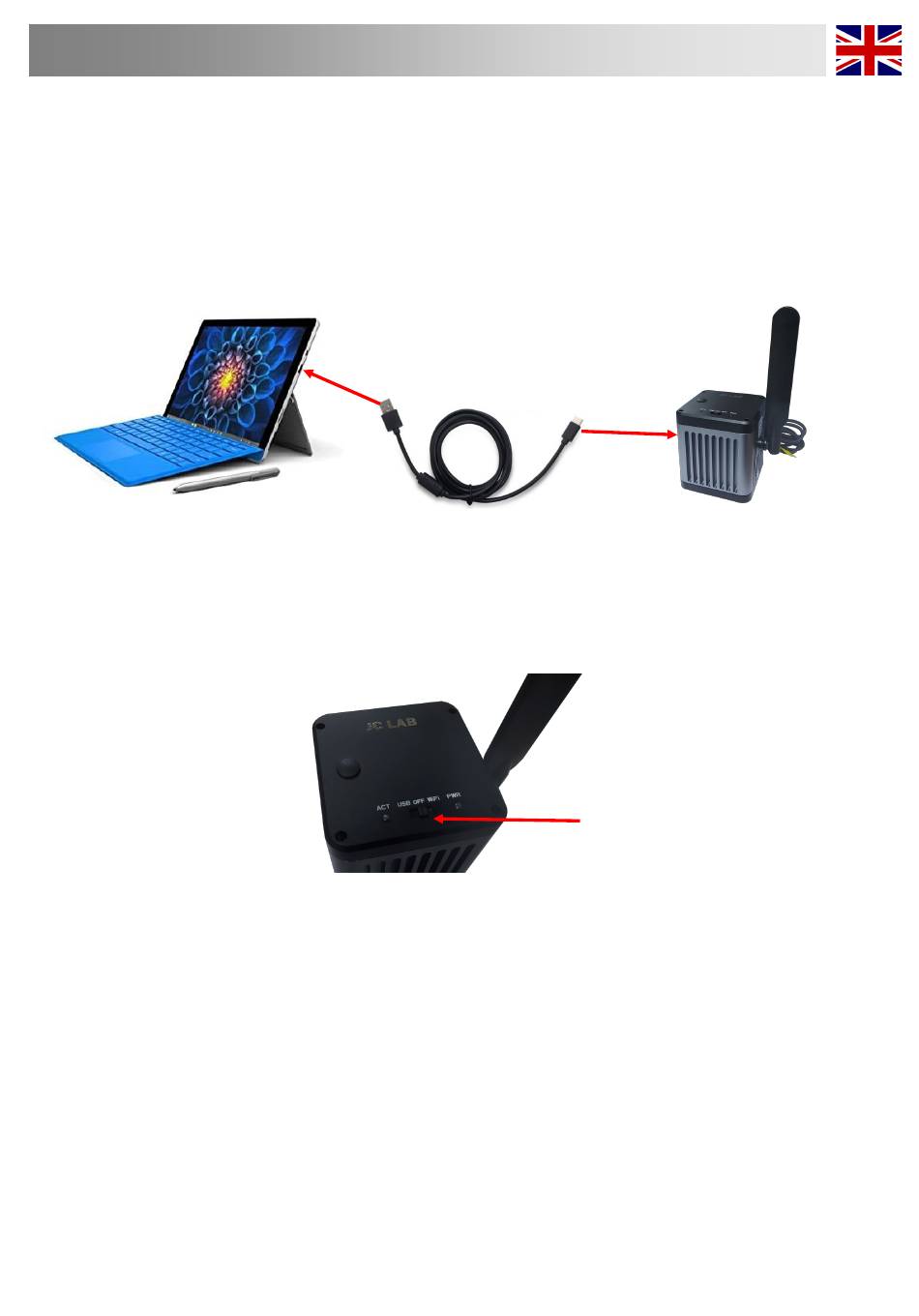

7.1 Connect the USB cable to the USB port of the computer. (if desktop computer,
suggest you insert to USB port (back side of computer).
7.2 Turn the Wi-Fi Digital Camera work mode switch to USB work mode. It may appear
the reminder for installing device's driver when you first use the Wi-Fi Camera Eyepiece
and then system will finish installation automatically.
7.3 Place the WiFi Digital Camera soundly and align the lens to the observation object.
7.4 Execute the JC Cam Install software in your computer to observe your needed
image.
7.5 For more detailed instructions of software, please refer to chapter of JC CAM
Software instruction.
Switch to USB work mode
Page 13
