Summary of Contents for JC LAB BIMC-12A

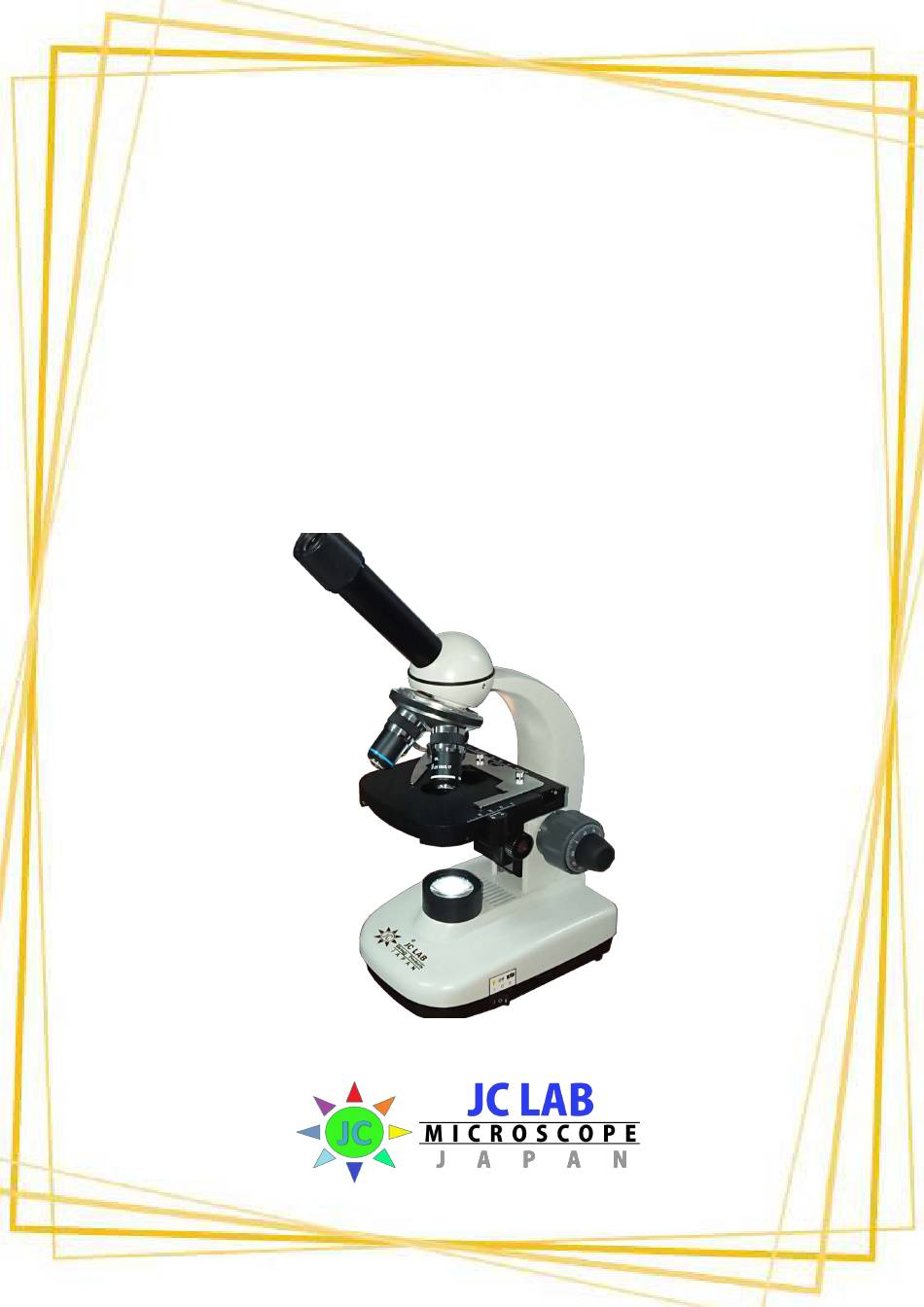

- Page 1 User manual Bimc-12A...
- Page 2 Contents Copyright Page 1 - 3 Microscope at a Glance Page 4 Microscope Accessories Page 5- 6 Working Instruction Page 7-8...
- Page 3 © 2012 by JC LAB Corporation. All rights reserved. Under the copyright law, this manual cannot be reproduced in any form without the prior written permission of JC LAB. No patent liability is assumed, with respect to the use of the information contained herein.
- Page 4 Because Wireless products operate within the guidelines found in radio frequency safety standards and recommendations, JC LAB believes Wireless products is safe for use by consumers. These standards and recommendations reflect the consensus of scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
- Page 5 JC LAB Support If you require any additional help your devices or if you are having problems operating devices, you may need to contact JC LAB for additional technical assistance. Before you call Some problem you experience may be related to software, apps or the operating system so it is importance that you investigate other sources of assistance first.
- Page 6 Microscope at a Glance 3 & 4 16 & 17 5 & 6 7 & 15 11, 12 & 13 1. Monocular Head 11. Power Plug 2. Stand 12. Fuse Box 3. Nosepiece 13. On/Off Switch 4. Objective Lens 14. Viewing adjust 5.
- Page 7 Accessories WiFi Eyepiece for viewing and capture photo/video in the microscope. Page 5...
- Page 8 Accessories Stage Micrometer for Microscope Calibration with NIST certification Lens Cleaning Tissue for slide cleaning Page 6...
- Page 9 Working Instruction Place Slide Place the slide on the mechanical stage. First open the clip, then put the slide into it. And then move it into center. 2) Choosing Objective Lens First, you need to using low power Objective lens to viewing object. From 4x -->...
- Page 10 Working Instruction 4) Turning Viewing Head using your eye to view eyepiece, make sure the eye become comfortable. 5) Adjust Condenser First, using your hand to turn the condenser when the light intensity is too high or the objects is to detail. 6) Turn Off After using the microscope, adjust the light intensity too dark.
