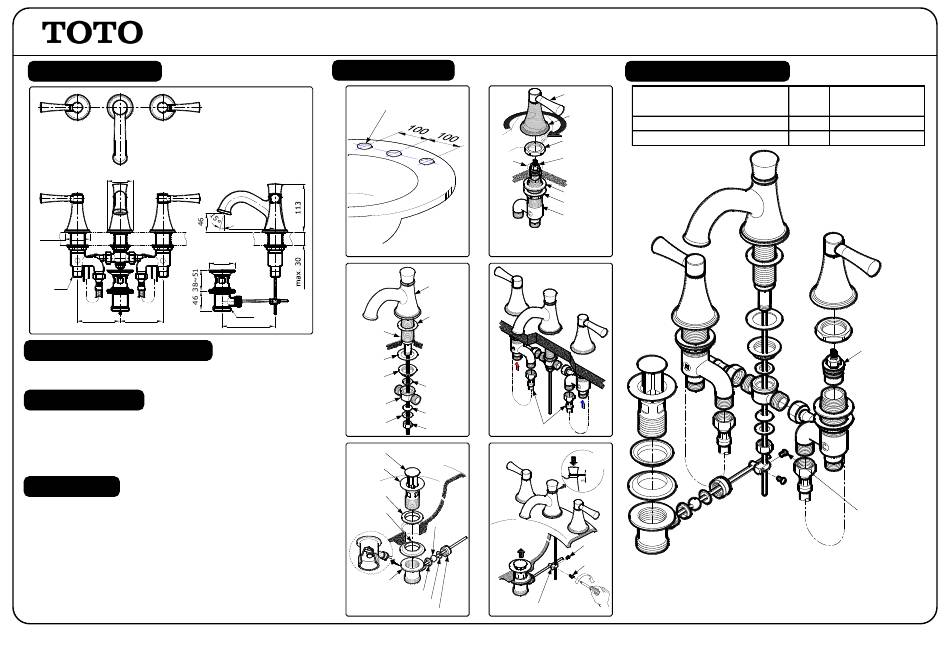

Toto GLORIA TX103LG Quick Start Manual

SPECIFICATIONS
Ø60
Ø60
G½
100 100
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
ATTENTION
1.Don t use abrasive cleaners or solvents on faucets and
fittings.
2. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
S06521Z
INSTALLATION
1.
3 X Ø35
120
Ø60
3.
G1¼
max. 230
Ø35 Hole
Packing
Lock Nut
Joint
Slip
Washer
5.
Plug
Siphon
Packing
Triangle
Packing
Kick Box
Packing
"GLORIA" 8" LEVER HANDLE LAVATORY FAUCET
2.
Handle Set *
Handle
Base * *
Connecting
Nut
Ceramic
Ø35
Head Work
Hole
Packing
Lock Nut
Body
* The red handle for left position and
the blue handle for right position.
**Tighten the handle base by hand
4.
Faucet
Packing
To Hot
Water
Supply
Packing
Packing
Flexible
Setting Nut Hose
6.
Bottom
Position
Pivot
Rod
OPEN
Position
Washer
Pop-up Clip
Nut
W/ 1¼" POP-UP WASTE
TROUBLESHOOTING
PROBLEM
Water leaks around the handle
Plug cannot open and close
To Cold
Water
Supply
Bolt
Bolt
TX103LG
CHECK
SOLUTION
POINT
1 Tighten
2 Tighten
1. CERAMIC
HEAD WO RK
2. BOLT
R4
