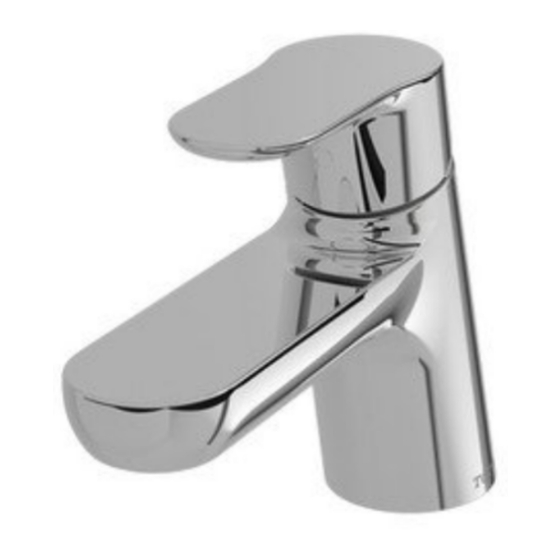

Toto UMI TX109LU Manual

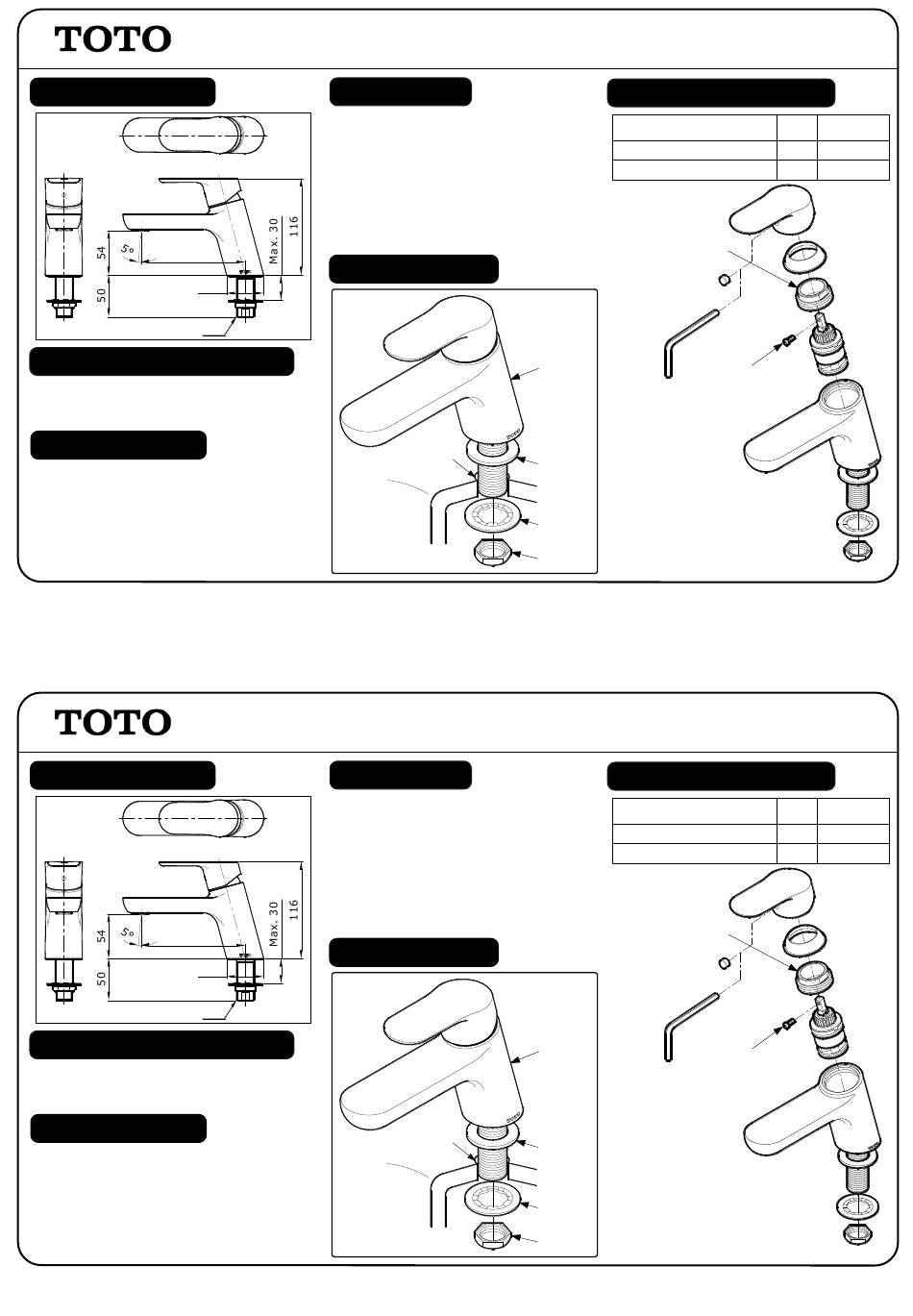

SPECIFICATIONS
125
44
G ½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean
( No Sand, Dirt, Etc.).
MAINTENANCE
Always wipe chrome plated area with dry soft
cloth, and sometimes wipe it with cloth soaked
in mild soap.
S060263R
SPECIFICATIONS
125
44
G ½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean
( No Sand, Dirt, Etc.).
MAINTENANCE
Always wipe chrome plated area with dry soft
cloth, and sometimes wipe it with cloth soaked
in mild soap.
S060263R
"UMI" SINGLE LEVER LAVATORY
ATTENTION
Don't use abrasive cleaning material such
1.
as; detergents containing hydrochloric
acids, thinner, polishing powder, and nylon
brush.
2. As the product model is constantly
updated, the actual product may not look
the same as it shown in the diagram, but
the basic installation principles are the
same.
INSTALLATION
Ø25 Hole
"UMI" SINGLE LEVER LAVATORY
ATTENTION
Don't use abrasive cleaning material such
1.
as; detergents containing hydrochloric
acids, thinner, polishing powder, and nylon
brush.
2. As the product model is constantly
updated, the actual product may not look
the same as it shown in the diagram, but
the basic installation principles are the
same.
INSTALLATION
Ø25 Hole
FAUCET ( COLD ONLY )
TROUBLESHOOTING
PROBLEM
Water leaks around the handle
Handle is Loose
1. CONNECTING
Faucet
Packing
Washer
Lock Nut
FAUCET ( COLD ONLY )
TROUBLESHOOTING
PROBLEM
Water leaks around the handle
Handle is Loose
1. CONNECTING
Faucet
Packing
Washer
Lock Nut
TX109LU
CHECK
SOLUTION
POINT
1 Tighten
2
Tighten
NUT
2. BOLT
R3
TX109LU
CHECK
SOLUTION
POINT
1 Tighten
2 Tighten
NUT
2. BOLT
R3
