AR1337-84LBGA-GEVB
AR1337-84LBGA
Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo3 system. Test points and
jumpers on the board provide access to the clock, I/Os and other
miscellaneous signals.
Features
•
Clock Input
Default – 24 MHz Crystal Oscillator
♦
Optional Demo3 Controlled MClk
♦
•
Two-wire Serial Interface
Selectable Base Address
♦
•
MIPI Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2018
January, 2018 − Rev. 0
Figure 2. Block Diagram of AR1337 Evaluation Board
EVAL BOARD USER'S MANUAL

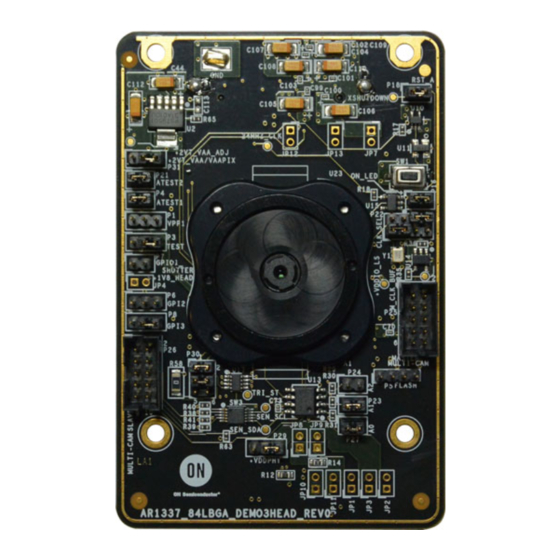

Figure 1. AR1337 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2531/D
