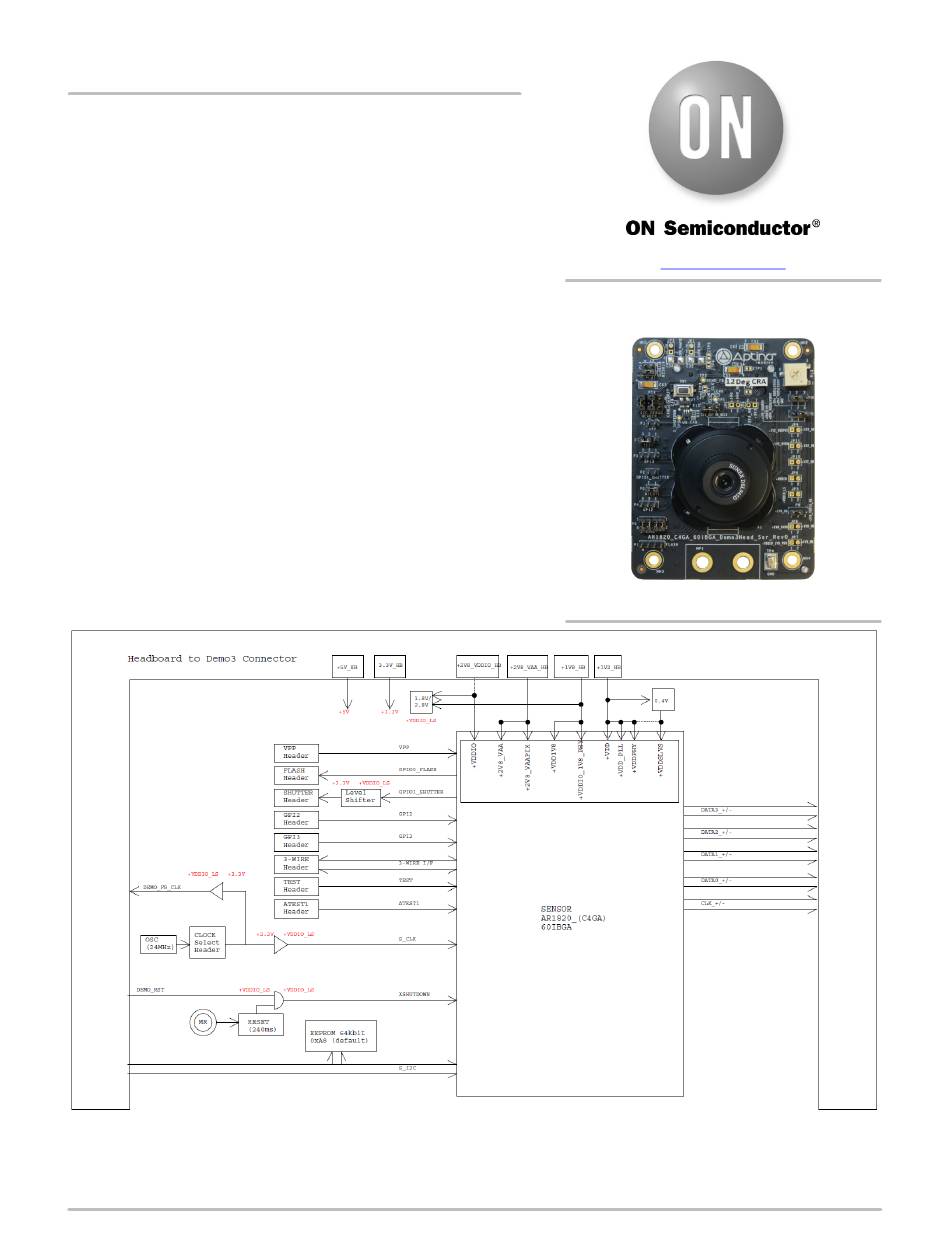

AR1820HSSC12SHQAH3-GEVB
AR1820HS Evaluation
Board User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.

Features

Clock Input
Default – 24 MHz Crystal Oscillator
Optional Demo 3 Controlled MClk
Two-wire Serial Interface
Selectable Base Address
MIPI Interface
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
March, 2016 − Rev. 0
Figure 2. Block Diagram of AR1820HSSC12SHQAH3−GEVB
EVAL BOARD USER'S MANUAL

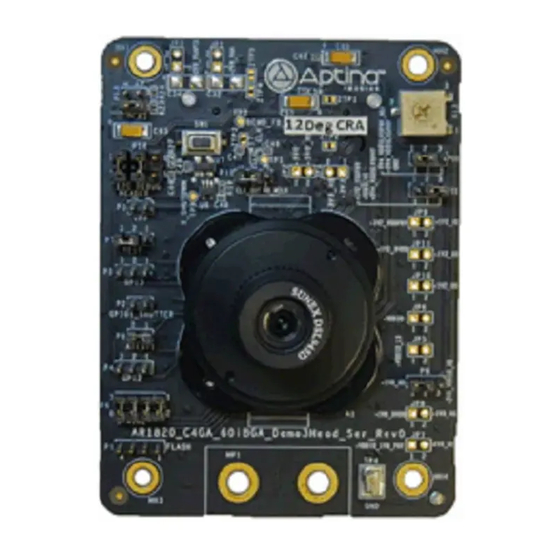

Figure 1. AR1820HS Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2395/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR1820HS and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor AR1820HS

  • Page 1 The evaluation boards are designed to demonstrate the features of EVAL BOARD USER’S MANUAL image sensors products from ON Semiconductor. This headboard is intended to plug directly into the Demo 3 system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 AR1820HSSC12SHQAH3−GEVB Top View EEPROM ADDR Sel P13 CLK_SELECT P12 RESET SW1 +0V4_VDDSLVS P10 C Debug P14 +VDDSLVS P11 +VPP P3 TEST P7 GPI3 P5 SHUTTER P2 ATEST1 P8 GPI2 P4 +VDDIO P9 FLASH P1 Figure 3. Top View of the Board − Default Jumpers Bottom View Baseboard Connector J8 Figure 4.
  • Page 3 AR1820HSSC12SHQAH3−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 When Pushed, 240 ms Reset Signal will be Sent to AR1820 Interfacing to ON Semiconductor Demo 3 Baseboard Table 2. SHORTED JUMPERS FOR POWER The ON Semiconductor Demo 3 baseboard has a similar MEASUREMENT 52-pin connector which mates with J8 of the headboard.
  • Page 5 onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
