AR1331CPSF32SMFAH3-GEVB
AR1331CP Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
Clock Input
Default – 24 MHz Crystal Oscillator
Optional Demo 3 Controlled MClk
Two-wire Serial Interface
Selectable Base Address
Parallel Interface
HiSPi (High Speed Serial Pixel) Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
March, 2016 − Rev. 0

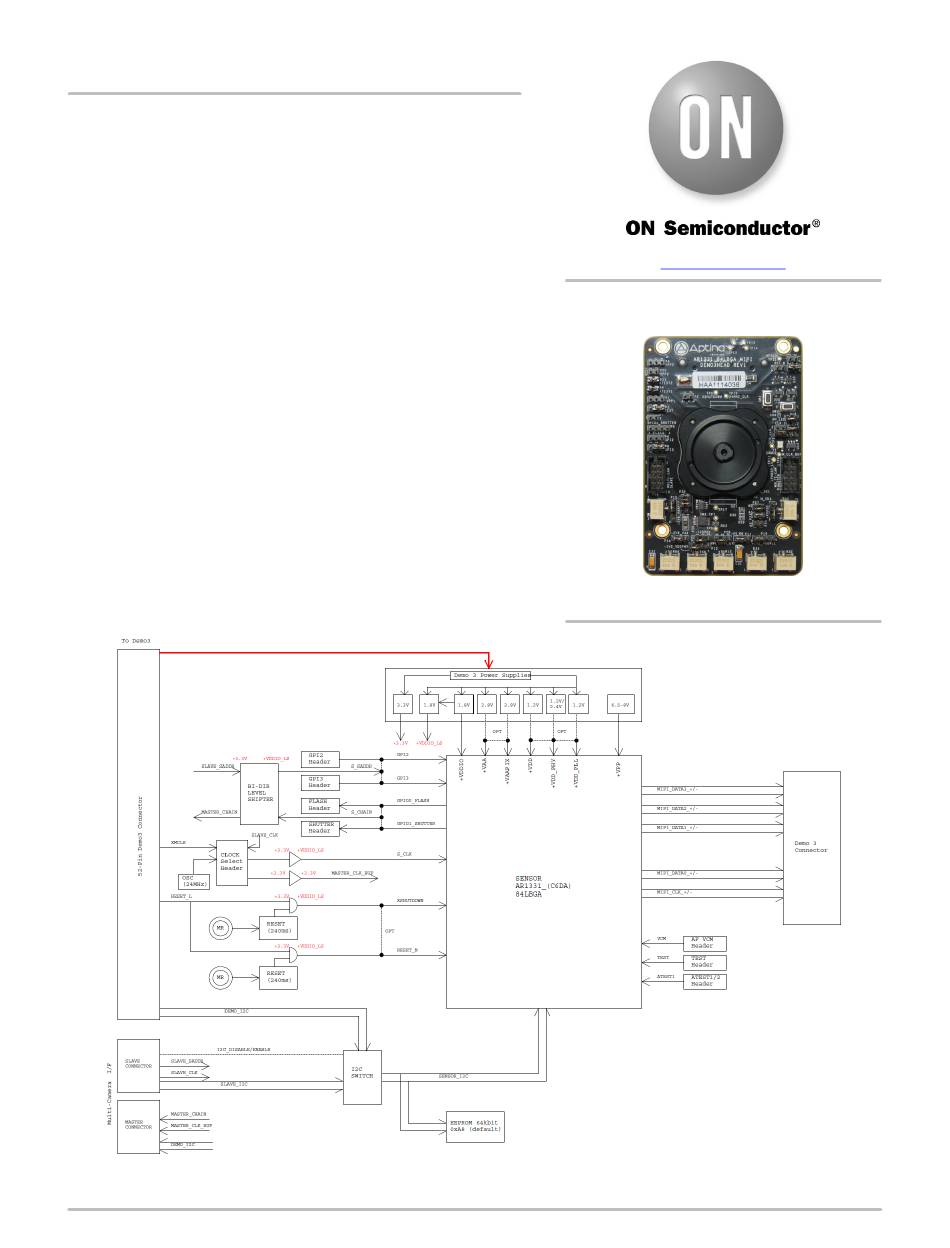

Figure 2. Block Diagram of AR1331CPSF32SMFAH3−GEVB
EVAL BOARD USER'S MANUAL
Figure 1. AR1331CP Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2390/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the AR1331CP and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor AR1331CP

  • Page 1 The evaluation boards are designed to demonstrate the features of EVAL BOARD USER’S MANUAL image sensors products from ON Semiconductor. This headboard is intended to plug directly into the Demo 3 system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 AR1331CPSF32SMFAH3−GEVB Top View +AF_VCM P2 +VPP2 P9 XSHUTDOWN P18 +VPP1_SHORT P20 RESET_N P19 ATEST2 P21 ATEST1 P4 RESET Switch SW2 +VPP1 P1 RESET Switch SW1 TEST P3 ON_LED P16 SHUTTER P7 FLASH P5 CLK_SELECT P22 GPI2 P6 GPI3 P8 EEPROM ADDR Sel C Selection P30 P23, P24, P27 +VDDIO P13...
  • Page 3 AR1331CPSF32SMFAH3−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 Signal will be Sent to AR1331 Interfacing to ON Semiconductor Demo 3 Baseboard The ON Semiconductor Demo 3 baseboard has a similar The four mounting holes secure the baseboard and the 52-pin connector which mates with J8 of the headboard.
  • Page 5: Technical Support
