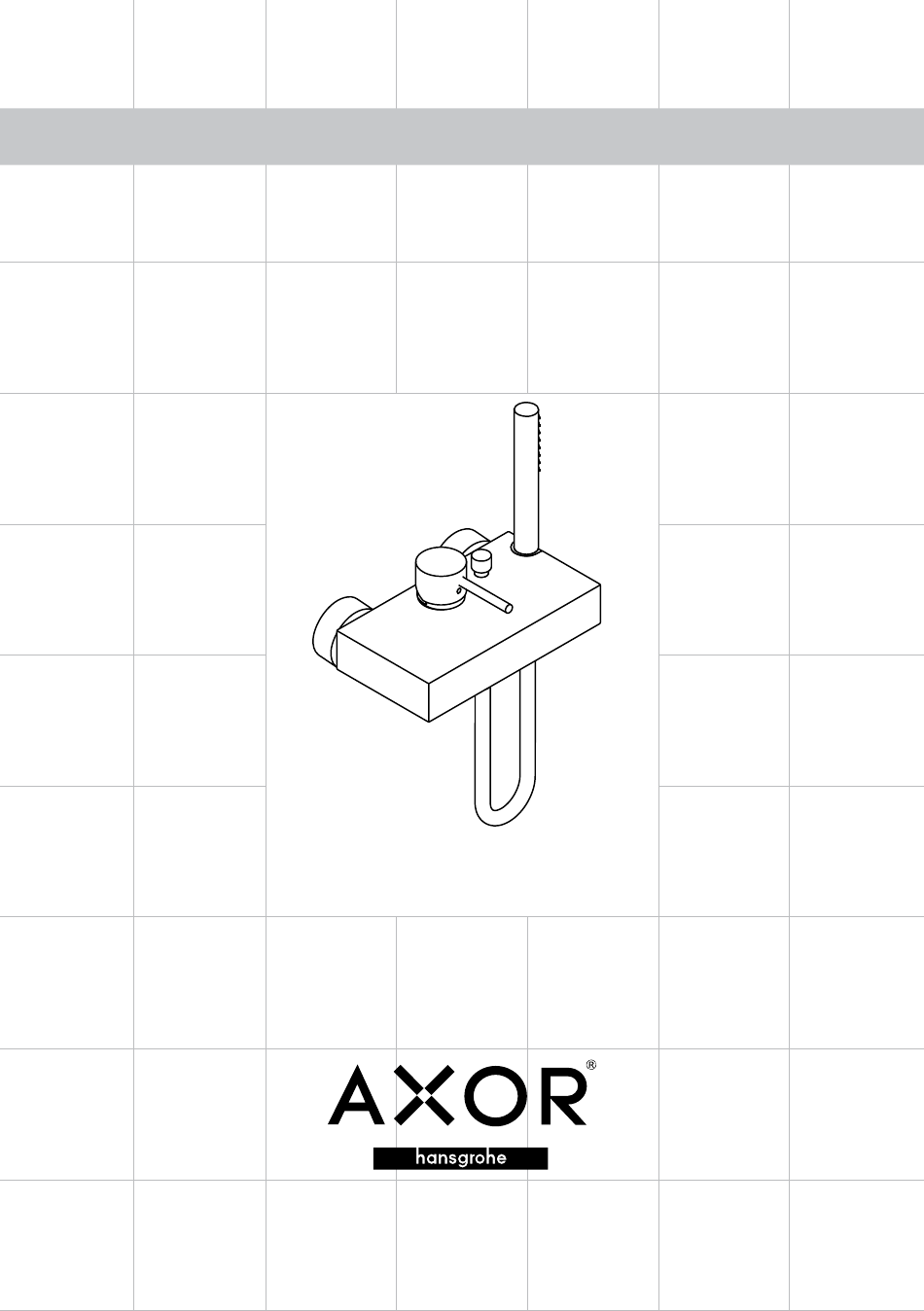

- Page 1 Installation Instructions / Warranty Axor Starck 10402001...
- Page 2 Technical Information / Données techniques / Datos tecnicos Recommended water Pression d’eau recommandée Presión recomendada en servicio 15 - 75 psi pressure Max. water pressure Pression d’eau maximum Presión en servicio max. 145 psi Recommended hot water Température recommandée d'eau Temperatura recomendada del 120�...
-
Page 3: Installation Considerations
Installation Considerations • For best results, Hansgrohe recommends that • Protection against backflow is provided by a this unit be installed by a licensed, professional check valve and by an automatically resetting diverter. plumber. • Please read over these instructions thoroughly •... -
Page 4: Installation
English Rough in This unit requires two ½" NPT female fittings, recessed ⅜" behind the surface of the finished wall. Installation Wrap the threads on the s-unions with Teflon tape. Screw the s-unions into the female fittings. Align the unions so that they are level and are 5⅞" apart on center. -
Page 5: Instalación
Français Español Pièce intérieure Piezas interiores Installez deux raccords femelles fileté NPT de ½ po, Instale dos conexiónes hembras NPT de ½", encastré à ⅜ po à l’intérieur de la surface du mur embutida ⅜" dentro de la superficie del la pared fini. - Page 6 English Position the mixer over the s-unions. Connect the flanges to the unions by rotating the flanges clockwise. Place the hose washer in one end of the hose. Screw this end to the handshower outlet. Place the screen washer in the other end and connect it to the handshower.
- Page 7 Français Español Placez le mélangeur sur les raccords unions en S. Coloque el mezclador sobre las juntas tipo s. Raccordez les brides aux raccords unions en les Conecte las bridas a las juntas rotando las bridas en tournant dans le sens horaire. sentido horario.
- Page 8 English Set the High Temperature Limit Stop (Optional) Lift the handle (1). Remove the screw cover (2). Loosen the handle screw 4 complete turns (). Re- move the handle (4). Remove the flange. Center the cartridge stem. Remove the handle screw (1). Remove the green high temperature limit stop (2).
- Page 9 Français Español Réglage de la butée limite d’eau Fije el tope de límite de alta tem- chaude (étape optionnelle) peratura (opcional) Soulevez la poignée (1). Retirez le cache-vis (2). Levante la manija (1). Retire la tapa de los tornillos Desserrez la vis de la poignée en faisant 4 tours (2).
- Page 10 User Instructions / Instructions de service / Manejo fermé ouvert cerrar abierto Just clean: simply rub over the spray nozzles to remove lime scale. La propreté en toute simplicité: les dépôts formés sur les buses élastiques en silicone s’éliminent par un simple passage de la main.
- Page 11 Replacement Parts / Pièces détachées / Repuestos 1040000 6000 65000 251001 6461000 4140001 6466000 270000 4246000 500000 6467000 7467000 4077000 4074000 222000 check valve clapet anti-retour válvula antirretorno...
- Page 12 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. Cleaning Materials for Faucets and Showers Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when cleaning faucets and showers:...
- Page 13 Nettoyez vos produits de robinetterie et de douche aussi souvent que nécessaire. • Utilisez la quantité de produit nettoyant et respectez la durée recommandée par le fabricant. Ne laissez pas le produit sur les articles de robinetterie plus longtemps que nécessaire. •...
-
Page 14: Limited Lifetime Consumer Warranty
Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 16, and installed in either the United States or Canada. - Page 15 Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from State to State. You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in court against us under the Magnuson-Moss Warranty Act.
- Page 16 Hansgrohe, Inc. • 140 Bluegrass Lakes Parkway • Alpharetta, GA 0004 Tel. 770-60-0 • Fax 770-60-7 www.hansgrohe-usa.com...
