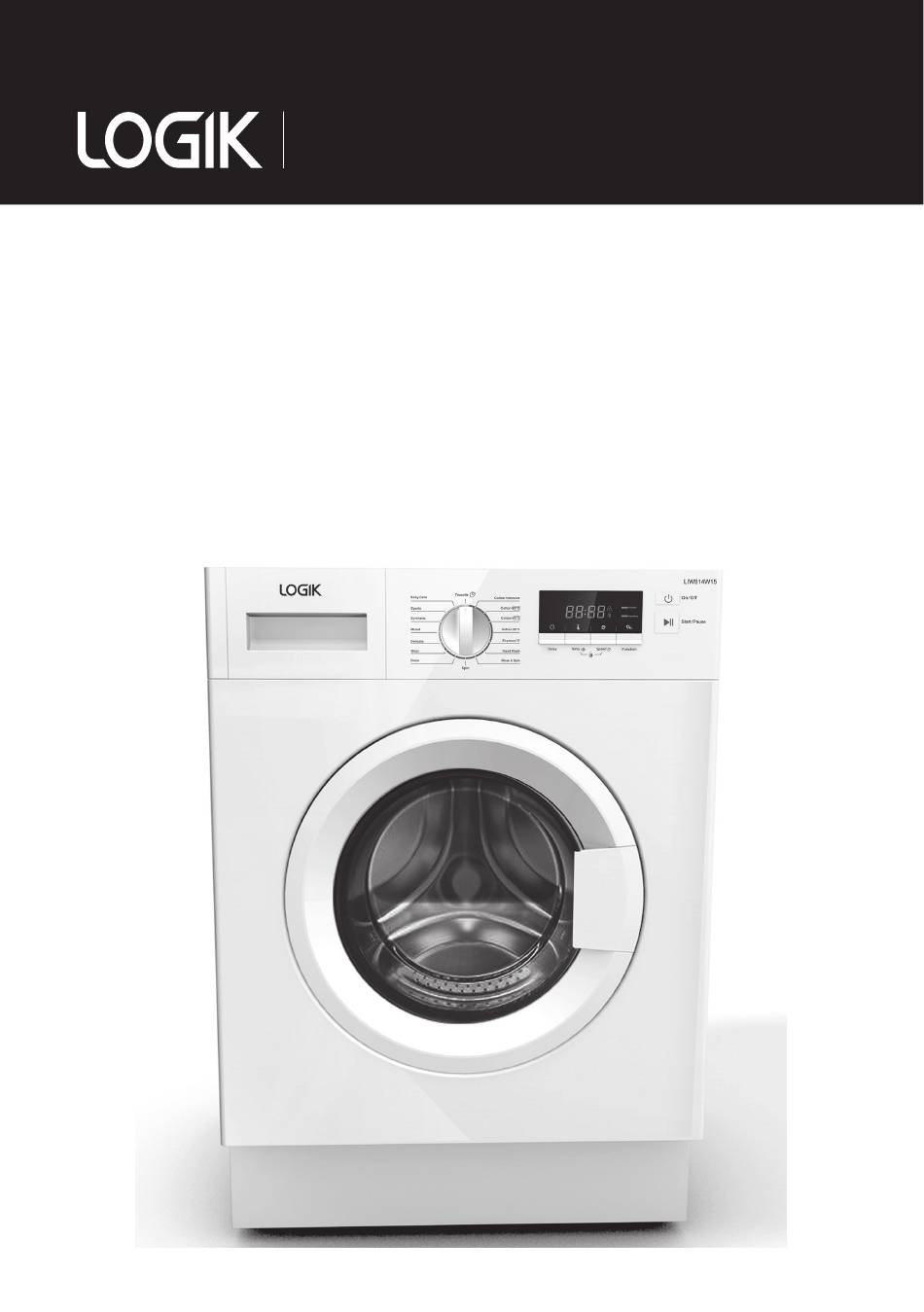

- Page 1 Instruction / Installation Manual 8kg Integrated Washing Machine LIW814W15...
-
Page 2: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 7 Installing Your Washing Machine ....................8 Choosing the Right Location for Your Washing Machine ................8 Moving and Installing ........................9 Removing the Transit Bolts ...........................9 Removing the Polystyrene Foam ........................9 Moving the Washing Machine from One Location to Another ..............9 Hose and Cable Lengths ............................. - Page 3 Maintenance – Cleaning the Washing Machine ............... 24 Cleaning the Drum ..............................24 Cleaning the Exterior of your Washing Machine ..................24 Cleaning the Detergent Drawer ........................24 Siphon Plug ................................24 Cleaning the Door Seal and Window ......................24 Cleaning the Drain Filter .............................
-
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. WARNING! • If you will not be using the washing machine for a while such as when you go on holiday, disconnect the plug from the mains supply and turn off the water supply to the washing machine. - Page 5 Power Source and Cable • Use an independent household dedicated mains socket, rated at 10 Amp 220V to 240V AC. If the washing machine is plugged in with other appliances, it may overheat and cause a fire. • Make sure the mains plug is pushed firmly into the socket. A loose connection may overheat and cause electrical shock or a fire.
- Page 6 • Be careful when draining hot water or any detergent from the drum. • Do not dismantle, repair or modify the washing machine. The washing machine could malfunction and cause a fire or injury. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and...
-
Page 7: Unpacking
Thank you for purchasing your new Logik Washing Machine. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 8: Installing Your Washing Machine
Installation INSTALLATION Installing Your Washing Machine Please read and follow the instructions carefully. • In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician. -
Page 9: Moving And Installing
INSTALLATION Moving and Installing Removing the Transit Bolts Four transit bolts keep the interior of the washing machine in place while it’s being moved. They need to be removed before installation. Use a spanner (not supplied) and follow the instructions detailed below. Don’t run the washing machine without removing the transit bolts, as this can cause excessive vibrations and may damage your machine. -
Page 10: Hose And Cable Lengths
INSTALLATION Hose and Cable Lengths How to connect from the left side How to connect from the right side ~80cm ~130cm ~90cm ~40cm 110 -135cm Levelling the Washing Machine There are levelling feet on the underside. They must be adjusted to make sure the washing machine is level. -
Page 11: Water Drain Hose
INSTALLATION Connecting the Water Supply Hose 1. To prevent leakage from the connection 3/4” 3/4” joints, ensure the rubber washer seals are fitted to each end of the water supply min. 10 mm min. 10 mm hose. Do not use without the seals in Plastic joint place. -
Page 12: Installing Into Kitchen Furniture
INSTALLATION Installing into Kitchen Furniture This appliance is designed to be built into kitchen furniture. Follow the measurement below for correct installation. 580mm 830mm 825mm 17.5mm During installation, make sure the hoses are placed out of the way. This can prevent the hoses from being kinked or trapped. - Page 13 INSTALLATION 2. Decide from which direction the cabinet Door Drill Template Door Drill Template door will open. Door open from left to right Door open from right to left 3. Depending on the direction the cabinet door will open and close, drill holes (hinge Ø 35 mm;...
-
Page 14: Connecting To The Mains Supply
INSTALLATION 7. Fix the cabinet door on the machine. Screw the hinges on the machine using screw B. 8. Close the cabinet door. Spacers on the cabinet door shall attract to the magnets on the machine. Connecting to the Mains Supply For your safety: •... -
Page 15: Product Overview

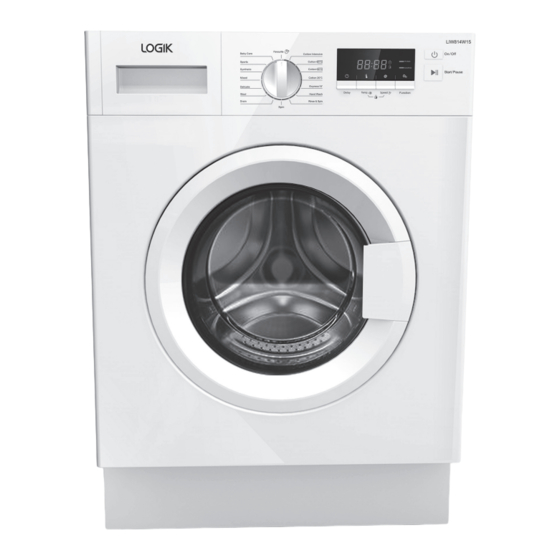

Product Overview The unit Detergent Control Panel Compartment Door Handle Window Drain Filter... -
Page 16: The Control Panel
The Control Panel LED Display • Illuminate the pre-wash and extra rinse lights if selected. • After the wash procedure begins, the remaining washing time will be displayed. • When the child lock function is selected, CHILD LOCKED Power Button Programme Dial icon will be illuminated. -
Page 17: Preparation
Preparation Read the following to understand how best to prepare your laundry for washing. Organising Laundry • Read the washing label on each garment to help you sort your washing into different loads. • Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the correct programme and temperature for each wash. -
Page 18: Adding Detergent And Softener
Adding Detergent and Softener • Add detergent into the appropriate dispenser. • Apply softener before you start washing. Main Wash Main wash Detergent detergent • Apply detergent and softener according to the washing Softener amount, the soiling level, the water hardness in your area Softener and the manufacturer’s instructions of these products. -
Page 19: Before First Use
Before First Use Before washing your clothes for the first time, run a full wash programme first: 1. Connect the machine to the mains power supply and the water supply. 2. Put a small amount of detergent in the detergent drawer. Close the drawer. 3. -
Page 20: Selecting The Programme
Selecting the Programme Here are the available programmes. Temperature can be selected separately for certain programmes. Detergent Box Default Default Time Default Load (kg) Temp. (˚C) (hr) Speed (rpm) Case Case Softener Programme Case Cotton Intensive 2:40 Cotton 60° 1:47 1200 Cotton 40°... -
Page 21: Delay Start The Programme
Here are the additional functions and option settings. Delay Extra rinse Prewash Programme Cotton Intensive Cotton 60° Cotton 40° Cotton 20° Express 15’ Hand Wash Rinse & Spin Spin Drain Baby Care Sports Synthetic Mixed Delicate Wool O Means optional X Means not available Delay Start the Programme 1. -
Page 22: Important Information
Important Information Washing Delicates (Wool and Silk Programmes) These programmes rock the drum gently for best results on delicate laundry. • Silk laundry loads: 2kg or less • Tips for Wool programme: Approximate Weights: - Wool sweater (400g) - Silk blouse / under garment (200g) - Trousers (400g) Adding Delicate Laundry Items to the Drum •... -
Page 23: How To Set The Child Lock
How to Set the Child Lock The Child Lock prevents children from accidentally changing a wash programme. 1. Switch on the washing machine. 2. When the washing machine is in operation, press and hold the Temp and Speed buttons at the same time for 3 seconds to set the child lock. -
Page 24: Maintenance - Cleaning The Washing Machine
Maintenance - Cleaning the Washing Machine Always unplug the washing machine before cleaning. Cleaning the Drum Any rust left inside the drum by metal articles must be removed immediately with chlorine-free detergent. Never use steel wool. Don’t put laundry in the washing machine during drum cleaning. To prevent build-up of detergent residue, it is recommended to wash the appliance without any load or detergent once a month. -
Page 25: Cleaning The Drain Filter
Cleaning the Drain Filter Be careful not to burn yourself while cleaning the drain filter. Water draining from the filter compartment may be hot after a high temperature wash. Before cleaning the drain filter, switch off and unplug the washing machine. 1. -
Page 26: Hints And Tips
Hints and Tips Issues Solutions Buttons don’t work. • Child lock is activated. Deactivate the child lock function. • The washing machine is operating a wash programme. The Programme Dial was turned to a different programme. • Door doesn’t open. •... - Page 27 There’s not much foam. • This can happen if you’ve put powder detergent directly into the drum – you must put it in the detergent drawer. • The amount of foam can vary, depending on the temperature, level and softness of your water. •...
-
Page 28: Questions And Answers
Questions and Answers Issues Reasons Solutions • Check if the door is closed tightly. • Check if power plug is inserted properly. Washing machine cannot • Check if water supply tap is opened. start up Check if button Start/Pause is pressed. •... -
Page 29: Error Codes
Check if the clothes are pinned by the door. Others • Please call the service line if there is any other issue. Specifications Model LIW814W15 Rated Voltage 220 - 240 V~ Rated Frequency 50 Hz Maximum Energy Rated Power Input... -
Page 30: Product Fiche
Product Fiche Brand: Logik Model: LIW814W15 Rated capacity: 8 kg Energy efficiency class: A+++ EU Ecolabel: N/A Energy consumption 196 kWh per year, based on 220 standard washing cycles for cotton programmes set at 60° C and 40° C at full and partial load, and the consumption of the low- power modes. - Page 32 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative DSG Retail Ireland Ltd (259460) 3rd Floor Office Suite, Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-LIW814W15-190902V4...
Need help?
Do you have a question about the LIW814W15 and is the answer not in the manual?
Questions and answers
My machine turns on when I just press the on switch, it is showing a E21 error message and although it seems the machine is working the drum is not moving. My machine is a LOGIK LIW814W15
The E21 error message on the Logik LIW814W15 washing machine indicates a drain problem. To fix this, you should:
- Wash the drain filter.
- Wash and straighten the drain hose.
If the drum is not moving, it might be due to an unbalanced load. If a small load is detected, the washing machine may stop spinning after several attempts. You can try manually setting the spin speed to resolve this issue.
This answer is automatically generated
