WARNING: Failure to posi-
tion the parts in accordance
with these diagrams or failure
to use only parts specifically
approved with this heater may
result in property damage or
personal injury.
CAUTION: After installa-
tion and periodically thereafter,
check to ensure that no yellow
flame comes in contact with any
log. With the heater set to High,
check to see if yellow flames
contact any log. If so, reposi-
tion logs according to the log
installation instructions in this
manual. Yellow flames contact-
ing logs will create soot.

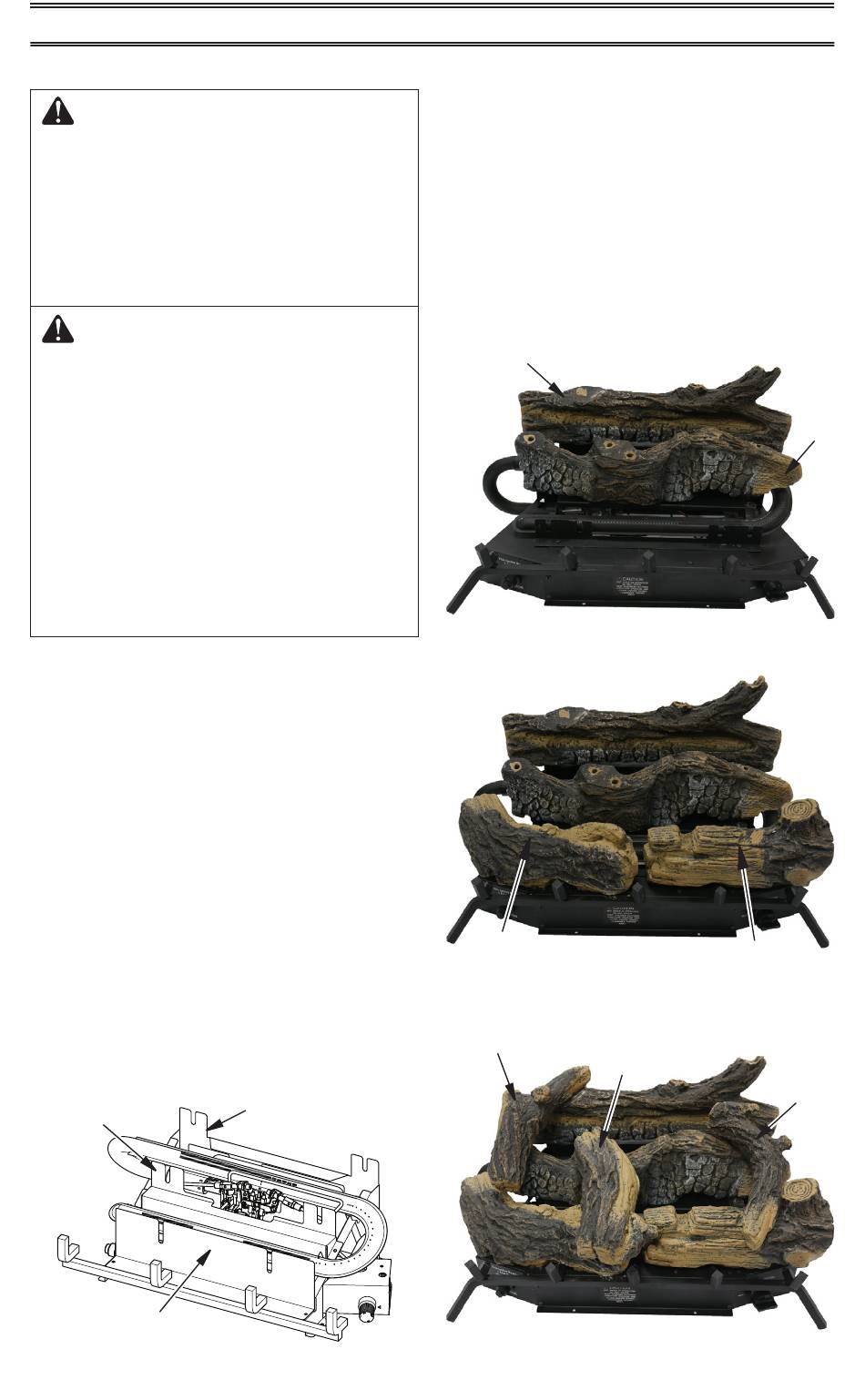

It is very important to install the logs exactly
as instructed. Do not modify logs. Use only
logs supplied with heater.
Each log is marked with a number. This
number will help you to identify the logs when
installing.
After installing logs, add decorative cinders
around the grate base, do not place any
decorative cinders on logs or burner.
1. Insert pins on the back of log #1 into slots
in rear log bracket.
2. Insert pins on the back of log #2 into slots
in mid log bracket.
3. Insert pins on the back of log #3 into slots
in front left log bracket.
4. Insert pins on the back of log #4 into slots
in front right log bracket.
Mid Log
Bracket
Front Log Bracket
Figure 22 - Log Chassis
20
INSTALLATION
INSTALLING LOGS
Rear Log Bracket
www.usaprocom.com
5. Insert pin in the bottom of log #5 in the
recessed hole on log #2, resting the other
end on log #1.
6. Insert pins in the bottom of log #6 in the
recessed holes on log #2, resting the other
end on log #3.
7. Insert pin in the bottom of log #7 in the
recessed hole on log #2, resting the other
end on log #4.
Log #1
Figure 23 - Installing Log #1 and #2
Log #3
Figure 24 - Installing Log #3 and #4
Log #5
Log #6
Figure 25 - Installing Log #5, #6 and #7
Log #2
Log #4
Log #7
