1. Locate red and black wires from solenoid
valve on right side of heater. Connect
wires to receiver, red to red, black to black,
(see Figure 21).

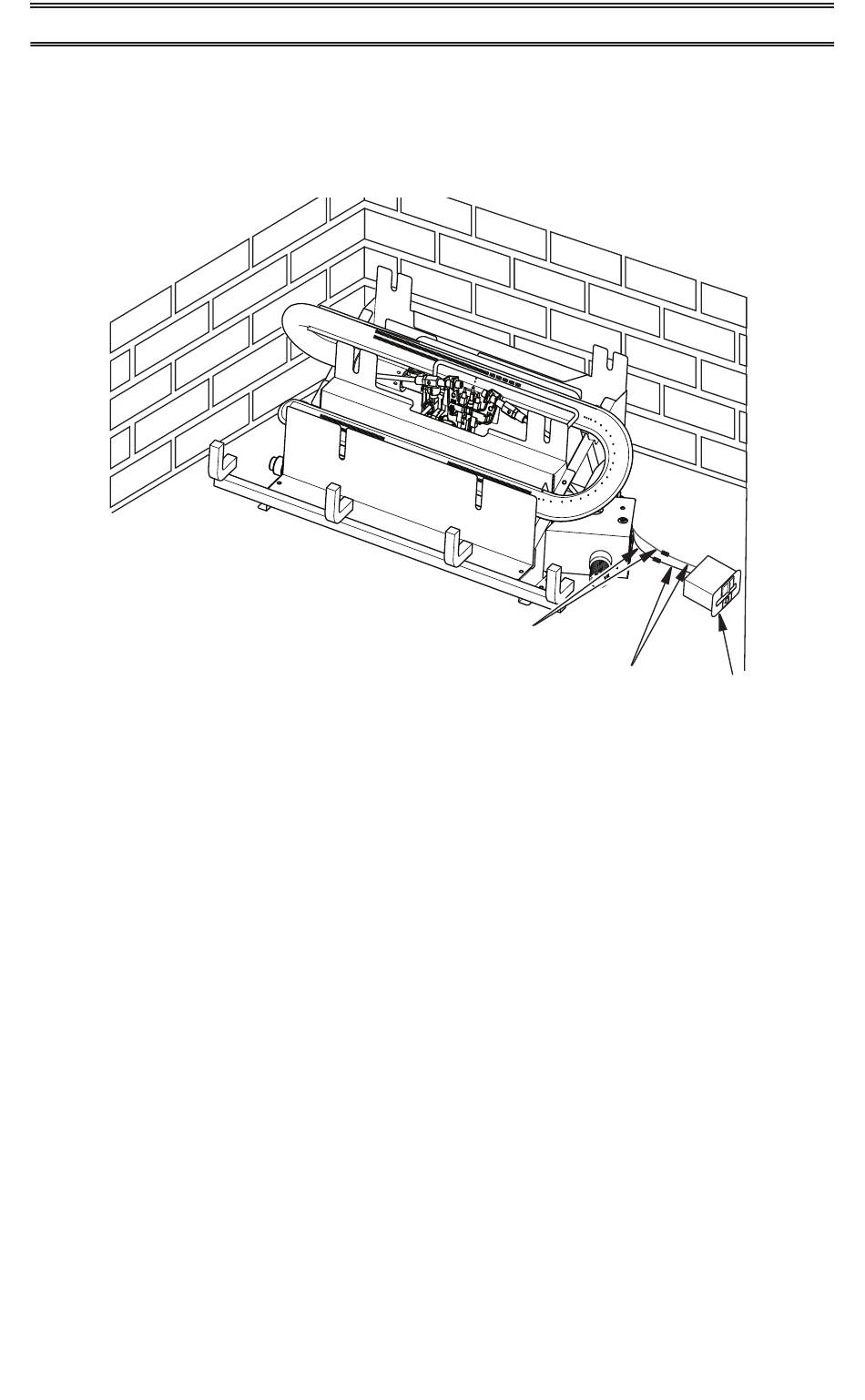

Figure 21 - Attaching Remote Receiver to Solenoid Valve
200240-01C
INSTALLING REMOTE RECEIVER
www.usaprocom.com
2. Place receiver to the side of the log set,
(see Figure 21).
Red and Black
Wires from
Red and Black
Solenoid
Wires from
Valve
Receiver
Receiver
