Keysight U7104E/F/N and U7106E/F/N Series Coaxial Multiport Switches Operating and Service Manual Introduction General Information Key Features This chapter provides you an overview of Keysight U7104E/F/N and U7106E/F/N series coaxial multiport switches.

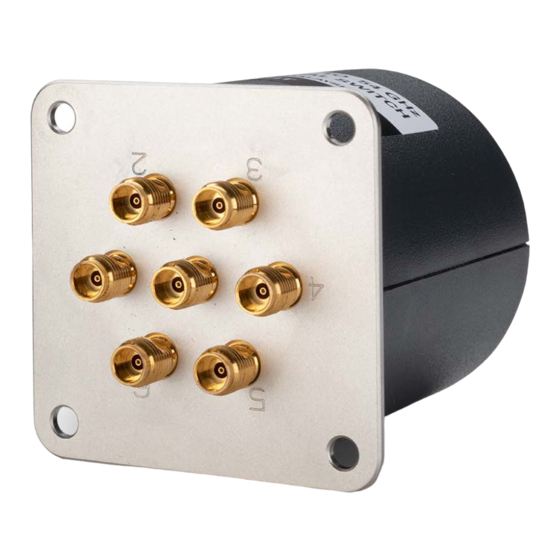

Introduction General Information Keysight U7104E/F/N SP4T, U7106E/F/N SP6T terminated switches provide the life and reliability required for automated test and measurement, signal monitoring and routing applications. These switches can be used in various applications as they are available in multiple frequency ranges, up to 67 GHz.
The longevity of these switches increases system uptime and lowers the cost of ownership by reducing calibration cycles and switch maintenance. Table 1-1 List of Keysight U7104E/F/N and U7106E/F/N coaxial multiport switches Model number Frequency range...
Page 16
Introduction THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK Keysight U7104E/F/N and U7106E/F/N Operating and Service Manual...
Page 17
Keysight U7104E/F/N and U7106E/F/N Series Coaxial Multiport Switches Operating and Service Manual Switch Configuration Driving the Switch Standard Drive (Option 200 and Option 400) TTL Drive (Option 300 and Option 500) Electronic Position Indicators This chapter provides you information on how to drive the switches using standard drive and TTL...
RF path is closed (15 ms), de-select the old RF path “drive” pin while leaving the new RF path “drive” pin selected. The switch circuitry will automatically open the old RF path while leaving the new RF path engaged. Keysight U7104E/F/N and U7106E/F/N Operating and Service Manual...
(to prevent multiple RF path engagement). Ground the “drive” pin which corresponds to the desired RF path. 4 To open all RF paths, ensure that all RF path “drive” pins are disconnected from ground. Then, connect pin 16 to ground. Keysight U7104E/F/N and U7106E/F/N Operating and Service Manual...
RF path engagement). Apply TTL “High” to the “drive” pin which corresponds to the desired RF path. 4 To open all RF paths, ensure that all RF path drive” pins are at TTL “Low”. Then, apply TTL “High” to pin. Keysight U7104E/F/N and U7106E/F/N Operating and Service Manual...
(24 Vdc) be connected to pin 1 and ground connected to pin 15. *Paths 1 and 4 are not connected for U7104E/F/N Figure 2-2 U7104E/F/N and U7106E/F/N Pin configuration for indicator function Keysight U7104E/F/N and U7106E/F/N Operating and Service Manual...
Page 22
Switch Configuration THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK Keysight U7104E/F/N and U7106E/F/N Operating and Service Manual...
Page 23
Keysight U7104E/F/N and U7106E/F/N Series Coaxial Multiport Switches Operating and Service Manual Specifications Environmental Specifications Physical Specifications This chapter provides you the environmental specifications of Keysight U7104E/F/N and U7106E/ F/N series coaxial multiport switches.
Specifications Environmental Specifications Keysight U7104E/F/N and U7106E/F/N series coaxial multiport switches are designed to fully comply with Keysight Technologies’ product operating environmental specifications as shown in the table below. Table 3-1 U7104E/F/N and U7106E/F/N environmental specifications Temperature – Operating -25°C to +75°C –55 °C to +85°C...
Specifications Physical Specifications The table below lists the weight of the Keysight U7104E/F/N and U7106E/F/N series coaxial multiport switches. Model number Weight U7104E/F/N 231 gm (0.509 lbs) U7106E/F/N 235 gm (0.518 lbs) Figure 3-1 Figure 3-2 show the dimensions of the Keysight U7104E/F/N and U7106E/F/N series coaxial multiport switches respectively.
Specifications Figure 3-2 U7106E/F/N product outline Keysight U7104E/F/N and U7106E/F/N Operating and Service Manual...
Page 27
Keysight U7104E/F/N and U7106E/F/N Series Coaxial Multiport Switches Operating and Service Manual Installation and Verification Installation Operating and Service Instructions This chapter provides you installation information and simple verification steps of the switches.
Refer to “Sales and Technical Support” on page 5 for the Keysight office nearest to you. Attach a tag indicating the type of service required, return address, model number, and serial number. Mark the container FRAGILE to insure careful handling.
The network analyzer may be set to sweep over the whole or selected frequency range of the switch to be verified. The S-parameter measurement is the best way to determine if the switch is working properly. Figure 4-1 Connection to perform quick check Keysight U7104E/F/N and U7106E/F/N Operating and Service Manual...
Page 30
Service instructions Adjustment and repair Keysight U7104E/F/N and U7106E/F/N series coaxial multiport switches do not require internal adjustments and are not recommended for repair. Maintenance The connectors, particularly the connector faces, must be kept clean. For instructions on connecting and care of your connectors, refer to the Microwave Connector Care Quick Reference Card (08510-90360).
