- Page 1 Keysight U3900DAQ Switching System Lab Solution Getting Started Guide...
-
Page 2: Notices
MENT OR OF ANY INFORMATION Software. The EULA and the license CON- TAINED HEREIN. SHOULD set forth therein, does not require or KEYSIGHT AND THE USER HAVE A Printed in: permit, among other things, that SEPARATE WRITTEN AGREEMENT Keysight:... - Page 3 The following symbols on the instrument and in the documentation indicate precautions which must be taken to maintain safe operation of the instrument. Caution, risk of danger (refer to this manual for specific Warning or Caution information) Keysight U3900DAQ Switching System Lab Solution Getting Started Guide...
- Page 4 DO NOT MODIFY THE INSTRUMENT Do not install substitute parts or perform any unauthorized modification to the product. Return the product to a Keysight Sales and Service Office for service and repair to ensure that safety features are maintained. DO NOT MEASURE MORE THAN THE RATED VOLTAGE...
- Page 5 Removal of the AC power cord is the disconnect method to remove power from the instrument. Be sure to allow for adequate access to the power cord to permit disconnection from AC power. Use only the Keysight specified power cord for the country of use or one with equivalent ratings.
- Page 6 REM - Identification of basic certification information. Kst - Identification of applicant's information GM16412 - Product identification. This is a Class A instrument suitable for professional use and in electromagnetic environment outside of the home. Keysight U3900DAQ Switching System Lab Solution Getting Started Guide...
- Page 7 CAUTION sign until the indicated conditions are fully understood and met. The NOTE sign denotes important information. It calls attention to a procedure, practice, condition or the like, which is essential to highlight. Safety and Regulatory Information 12 Keysight U3900DAQ Switching System Lab Solution Getting Started Guide...
- Page 8 DAQM905A which is 0 Vpk. Measurement is rated for CAT ‘none’, and terminals are not to be connected directly to mains. Do not use this equipment to measure circuits where transient overvoltages could exceed this level. Keysight U3900DAQ Switching System Lab Solution Getting Started Guide...
- Page 9 Environmental Conditions and General Characteristics Keysight U3900DAQ Switching System Lab Solution is designed for indoor use and in an area with low condensation. Tables below show the general environmental requirements and general characteristics for this instrument. Environmental condition Requirement Operating condition 0 to 55 °C...
- Page 10 Sales and Technical Support To contact Keysight for sales and technical support, refer to the support links on the following Keysight websites: – Product-specific information and support, software and documentation updates – www.keysight.com/us/en/industries/education/teaching-solutions.html – www.keysight.com/find/DAQ970A – Worldwide contact information for repair and service –...
-
Page 11: Table Of Contents
DAQM901A and DAQM903A with Five Twisted Pair Cables ........16 DAQM905A with SMB – SMA Coax Cable ..............17 Sample Application ........................18 Sample Application 1 ....................18 Sample Application 2 ....................19 Keysight U3900DAQ Switching System Lab Solution Getting Started Guide... -
Page 12: Overview

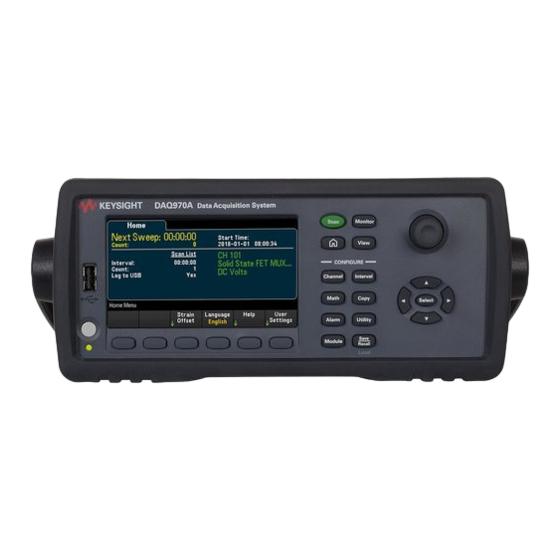

Overview Tools to Support Remote Teaching and Learning U3900DAQ Switching System for Education Lab consist of the DAQ970 data acquisition system (DAQ), this instrument enabling remote switching measurement point on a DUT (device under test), to provide a complete hands-on learning for engineering students to measure different points in a training board circuit. -
Page 13: Hardware Requirements
– U3900DAQ-AC1: U3810-31306. – U3900DAQ-AC2: U3810-31308. For DAQM901A / DAQM903A – Including: U3900DAQ-AC1. Alpha 78025 1.5 m, five twisted pairs, OD 5.26mm, 24 AWG For DAQM905A – Including U3900DAQ-AC2. – Description: SMA (M) Straight Plug to SMB Right Angle Plug on Flexible Cable RG-316/U... - Page 14 – Description: SMA (F) Bulkhead Jack to SMB Right Angle Plug on Flexible Cable RG-316/U (1300 mm) SMB (F) - SMB (F) (optional) – KPN 8120-5028 (975mm) – Description: SMB Right Angle (M) to SMB Right Angle (M) on Flexible Cable (975 mm) Keysight U3900DAQ Switching System Lab Solution Getting Started Guide...
-
Page 15: Module Description
The breadboard area provides the space necessary to insert your own components but there are no circuit board traces here. You must add your own circuitry and signal routing. Keysight U3900DAQ Switching System Lab Solution Getting Started Guide... -
Page 16: Daqm905A Dual 1:4 Rf Multiplexer (50 Ω) Module
This module does not connect to the internal DMM. You can connect your signals directly to the on-board SMB connectors or to the SMB-to-BNC cables provided with the module or with specific accessories based on the application. Keysight U3900DAQ Switching System Lab Solution Getting Started Guide... -
Page 17: Daqm905A With Smb - Sma Coax Cable
DAQM905A with SMB – SMA Coax Cable Keysight U3900DAQ Switching System Lab Solution Getting Started Guide... -
Page 18: Sample Application
Sample Application Sample Application 1 Conventional End to End RF Transceiver Lab Task This lab setup can flexibly be configured with DAQ905A RF multiplexer as web-enabled remote RF lab task. Keysight U3900DAQ Switching System Lab Solution Getting Started Guide... -
Page 19: Sample Application 2
Sample Application 2 Conventional Analog Signal Measurement Lab Task Multiples jumpers / test points / switches can be replaced with DAQ solution. Keysight U3900DAQ Switching System Lab Solution Getting Started Guide... - Page 20 This information is subject to change without notice. © Keysight Technologies 2020 Edition 1, November 2020 Printed in Malaysia *U3900-90001* U3900-90001 www.keysight.com Keysight U3900DAQ Switching System Lab Solution Getting Started Guide...
