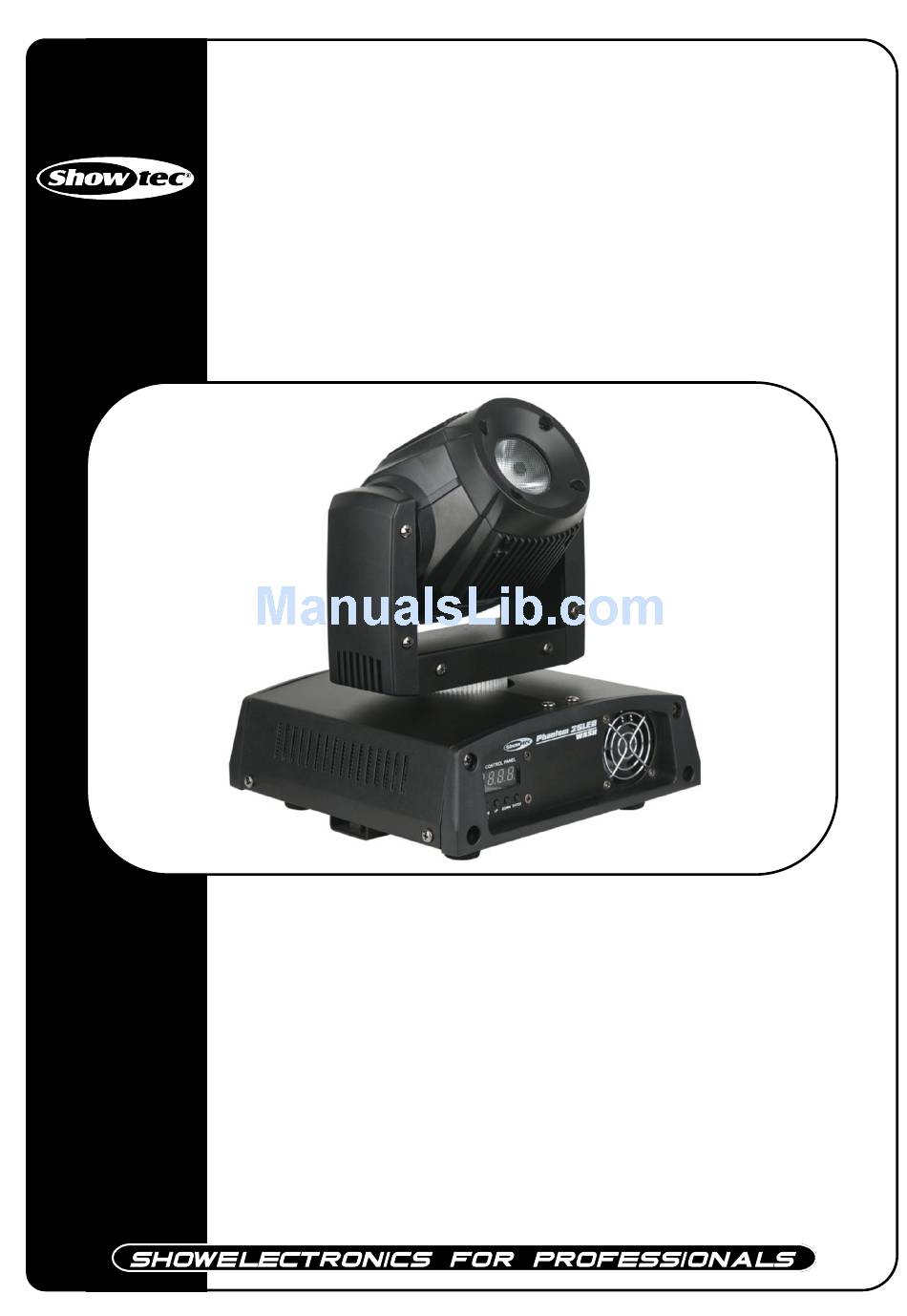

- Page 1 Phantom 25 LED Wash ORDERCODE 40186 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Phantom 25 LED Wash brings excitement to any venue. Whether you want simple plug-&- play action or a sophisticated DMX show, this product provides the effect you need.
-
Page 3: Table Of Contents
Showtec Showtec Phantom 25 LED Wash Product Guide ™ Warning.................…...……………..…………………………….………… Safety-instructions……………………………………………………………………………………………………… Operating Determinations.…………………………………………………………………………………………… Rigging.………………………………………………………………………………………………………………….. Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….……….. Features and Overview ………………………………...….……………….………….……….……….…………… Backside…………………………………………………...…...….……………….…………………...………………. Installation................…...……………………………………………………. Set Up and Operation..............……..…………………………………………… Control Modes…………………………………………………………………………………………………….……. One Phantom (Built-in Programs)…..…………………………….……………….…………..…..………….. One Phantom (Sound Control)…………………………………………..…………………….……..………. Multiple Phantoms (Master/Slave control).………………………………………………..………………... -
Page 4: Warning
Your shipment includes: • Showtec Phantom 25 LED Wash with IEC powercable 0,9m • 1 bracket for truss mounting • Safety eye •... - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 1 meter. •... - Page 7 Mounting a clamp to the underside of the Phantom moving head Improper installation can cause serious damage to people and property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable...
-
Page 8: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 9: Description

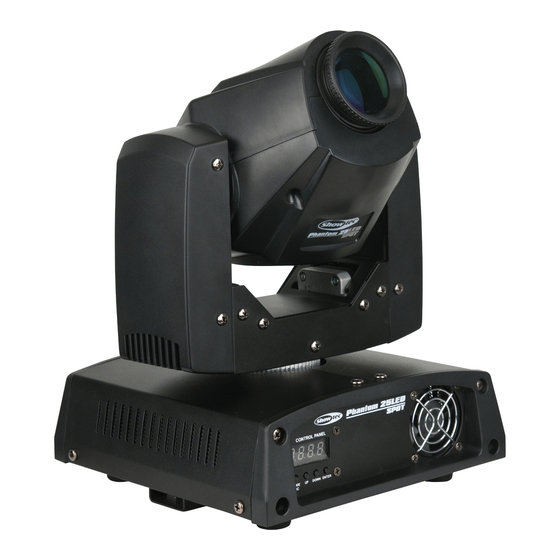

Description of the device Features The Showtec Phantom 25 LED Wash is a moving-head with high output and great effects. • DMX-control via standard DMX-controller • Built-in Automatic Programs + Built-in Sound activated programs • User-selectable Pan & Tilt ranges, 540° / 360° / 180°... -
Page 10: Backside
Backside Fig. 2 IEC power connector Fuse F2A 250V DMX signal connector (IN) 3-pin DMX signal connector (OUT) 3-pin Installation Remove all packing materials from the Phantom 25 LED Wash. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 11: Control Modes
Control Modes There are 4 modes: • Stand-alone (built-in programs) • Sound-controlled • Master/Slave • DMX512 (15 Channels ADVANCED or 6 channel BASIC) One Phantom (Built-in Programs) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. When the Phantom is not connected by a DMX-cable, it functions as a stand-alone device. -
Page 12: Multiple Phantoms (Dmx Control)
Multiple Phantoms (DMX Control) 1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. Always use a safety cable. 3. Use a 3-p XLR cable to connect the Phantoms and other devices. 4. -
Page 13: Fixture Linking
Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.). The Phantom 25 LED Wash can be operated with a controller in control mode or without the controller in stand-alone mode. -
Page 14: Control Panel
Control Panel Fig. 5 A. LCD Display D. Down Button B. MODE/ESC button E. ENTER Button C. Up Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) DMX Addressing The control panel on the front side of the base allows you to assign the DMX fixture address, which is the... -
Page 15: Menu Overview
Menu Overview... -
Page 16: Main Menu Options
Main Menu Options DMX address Built-in Programs Slow/Fast/Sound-control/Remote control/Slave Pan/Reverse Pan Tilt/Reverse Tilt Display/Reverse Display Advanced 15 channels/ Basic 6 channels Pan 540º, 360º, 180º Tilt 270º, 180º, 90º Reset Load factory default settings DMX Addressing With this menu you can set the DMX address. 1) Press Mode/Esc, until the display shows 2) Press Enter to confirm. -
Page 17: Built-In Programs Mode
Built-in Programs Mode You can select 5 different Programs when using the Giant LED. Press MODE until the display shows ,then press the UP / DOWN buttons to select all 5 programs. Built-in Program Slow When the display shows : ,then press ENTER. -
Page 18: Tilt Mode
Tilt Mode When the display shows : , the Tilt is 270º. When you press Up/Down and the display shows , the Pan is 180º. When you press Up/Down and the display shows , the Pan is 90º. Reset When the display shows : and you press ENTER the device will reset. -
Page 19: Dmx Channels
DMX Protocol 15 Channels ( Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 –... - Page 20 Channel 13 – LED Speed 0-255 Color change with from fast to slow Channel 14 – Channel Functions No Function 8-27 Blackout during Pan/Tilt movement 28-147 Disable blackout during Pan/Tilt movement 148-167 Reset Pan 168-187 Reset Tilt 188-207 No Function 208-227 No Function 228-247...
-
Page 21: Channels (Basic)
DMX Protocol 6 Channels ( Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 –... -
Page 22: Channel Settings
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Phantom 25 LED Wash requires almost no maintenance. However, you should keep the unit clean. -
Page 23: Replacing The Fuse
1. Power supply. Check that the unit is plugged into an appropriate power supply. 2. The LEDs. Return the Phantom 25 LED Wash to your Showtec dealer. 3. The fuse. Replace the fuse. See page 21 for replacing the fuse. - Page 24 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...
-
Page 25: Product Specifications
Product Specification Model: Showtec Phantom 25 LED Wash Input Voltage: 100-240 VAC Peak Power 250 Watt; Continuous Power 105 Watt Fuse: F2A / 250V Dimensions: 210x205x255mm (LxWxH) Weight: 3,7 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
