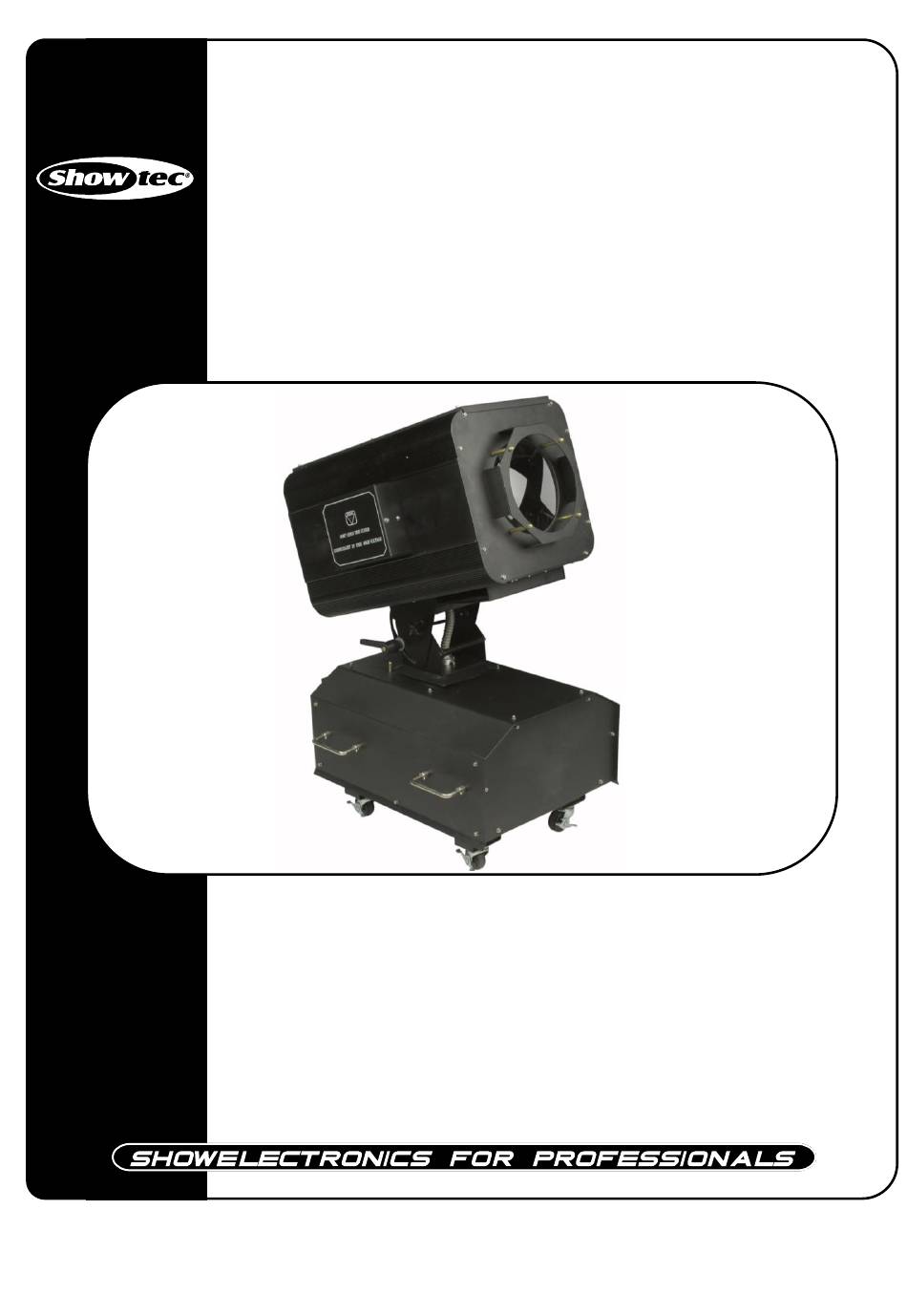

- Page 1 Sky Rose 2500 ORDERCODE 40950...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Sky Rose 2500 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Sky Rose 2500 Product Guide ™ Warning.................…...……………..…………………………….…………. Safety-instructions………………………………………………………………………………………………………. Operating Determinations.…………………………………………………………………………………………… Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….………… Features and Overview ………………………………...….……………….………….……….……….……………. Backside…………………………………………………...…...….……………….…………………...……………….. Installation................…...…………………………………………………..… Installing the Lamp ............…………………………………………………….……… Set Up and Operation..............……..……………………………………………. Maintenance...................………..………….…….……………………..…. Changing the Lamp................…………………….………………...……… Troubleshooting................………………….………………….……………… No Light, No Movement - All Products..........………………….…………………………. -
Page 4: Warning
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
CAUTION ! EYEDAMAGES !. Avoid looking directly into the light source. (meant especially for epileptics) ! OPERATING DETERMINATIONS • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. •... -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description

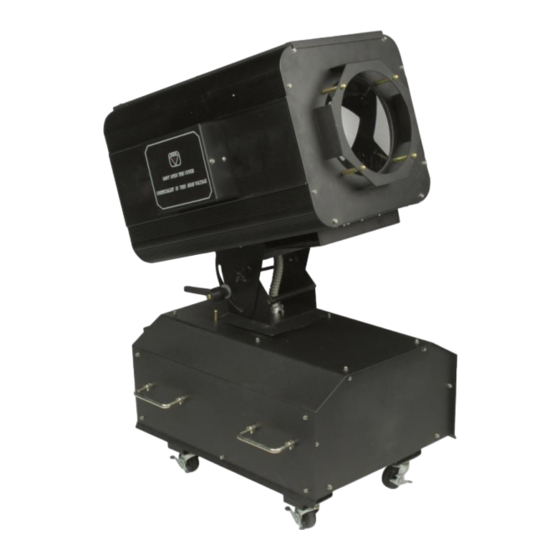

Description of the device Features The Showtec Sky Rose 2500 is an immensely powerful color changer with great effects. • Control the Sky Rose with the included controller • IP-23 Protection degree • Stand-alone control or Master –Slave control • Lamp 2500W not included Note: If the lamp has been turned OFF, let the lamp cool down for 15 minutes, before turning the lamp ON again. -
Page 9: Installation
Installation Installing the Lamp The Showtec Sky Rose 2500 uses the 2500W (ordercode 80903O / 80903P / 80903S) bulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 11: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. When preparing for operation, please lock the 4 wheels to avoid shaking when the head is in motion. -
Page 12: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Sky Rose 2500 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. - Page 13 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Fuse blown. · Return the Sky Rose to your dealer. completely dead. Fixtures reset The controller is not connected.
-
Page 14: Product Specifications
Product Specification Model: Showtec Sky Rose 2500 Voltage: 240V-50Hz (CE) Power: 2500W Driving Current: 38A Working Current: 25A Dimensions: 410 x 640 x 850mm (LxWxH) Flightcase Dimensions: 700 x 515 x 880 mm (LxWxH) Weight: 75 kg Operation and Programming...
