SOMFY Sonesse ULTRA 30 Quick Programming Manual

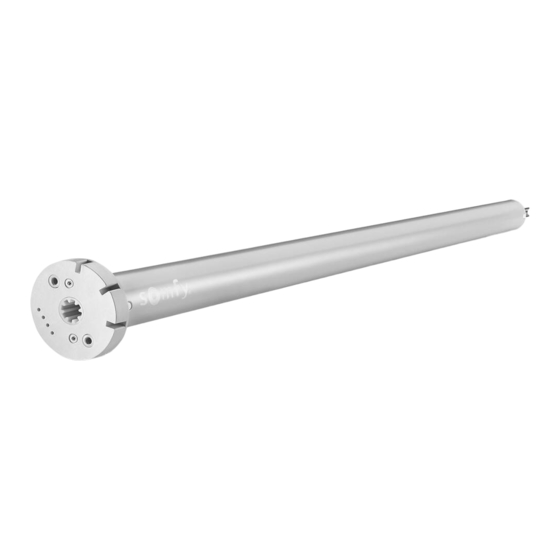

Sonesse® ULTRA 30 Wirefree (Li-Ion) RTS
BEFORE YOU BEGIN: Check if you have a paired remote with the following directions:
1) BRIEFLY PRESS the PROGRAMMING BUTTON on the motor or plug in the charger.
The motor will jog once. (A jog is a brief up and down motion).
2) If a remote was ordered, press a directional button (UP or DOWN) and see if the shade operates. If a multi-channel
remote was ordered, select the channel the shade should be programmed under, then operate the shade.
a) If the shade operates - the shade is already programmed.
b) If the shade does not operate - choose the channel on which you would like to control the shade. PRESS & HOLD
the PROGRAMMING BUTTON on the motor until it jogs once. Then BRIEFLY PRESS the PROGRAMMING BUTTON
on the remote. The shade will jog once. The shade is now programmed.
NOTE: Upper and lower limits are set at the factory. In the event limit setting is required, please follow
steps under Initial Programming and Limit Setting.
INITIAL PROGRAMMING AND LIMIT SETTING
NOTE: Motor will exit programming mode after 2 minutes of inactivity. While in programming mode, the shade only operates when the UP or DOWN buttons are
continuosly pressed. Releasing the buttons stops the shade.
Step 1:
To initiate programming PRESS
& HOLD both the UP and DOWN buttons
at the same time until the shade jogs.
Step 3:
Bring the shade to your desired
upper limit. PRESS & HOLD both the MY/
STOP and DOWN buttons until the shade
begins to move down, then release. Stop the
shade at the desired lower limit, adjust by
pressing the UP or DOWN buttons.
ADJUSTING THE LIMITS IN USER MODE
Step 1:
Move the shade to
the current limit position you
wish to adjust and let it stop.
Adjusting the
upper limit:
Adjusting the
lower limit:
Copyright © Somfy SAS 5/2019
Quick Programming Guide
Step 2:
Check the direction of operation.
Press the DOWN button and confirm the
shade lowers.

Step 4:
PRESS & HOLD the UP
and MY/STOP buttons until the
shade begins to move up.
The shade will stop at the original
upper limit. Adjust if necessary.
Step 2:
PRESS & HOLD both
UP and DOWN buttons
simultaneously until the shade
jogs, then release.
P-0038CBG
If the shade raises instead of closing, change the direction -
PRESS & HOLD the MY/STOP button until the shade jogs.
Confirm correct direction of operation before proceeding.
Step 5: Step 6:
PRESS &
HOLD the MY/STOP PROGRAMMING BUTTON on the back
button until the shade of the control. The shade will jog and will
now operate in user mode. A brief press
jogs to confirm both
limit settings. of the UP or DOWN button will send the
shade to the respective limit.
Step 3:
Adjust to a new
limit position using the
UP or DOWN buttons.
OR
OR
Programming
Button

To finalize BRIEFLY PRESS the
Programming
Button
Step 4:
PRESS & HOLD the
MY/STOP button until the
shade jogs, then release.
Check the new limit.
