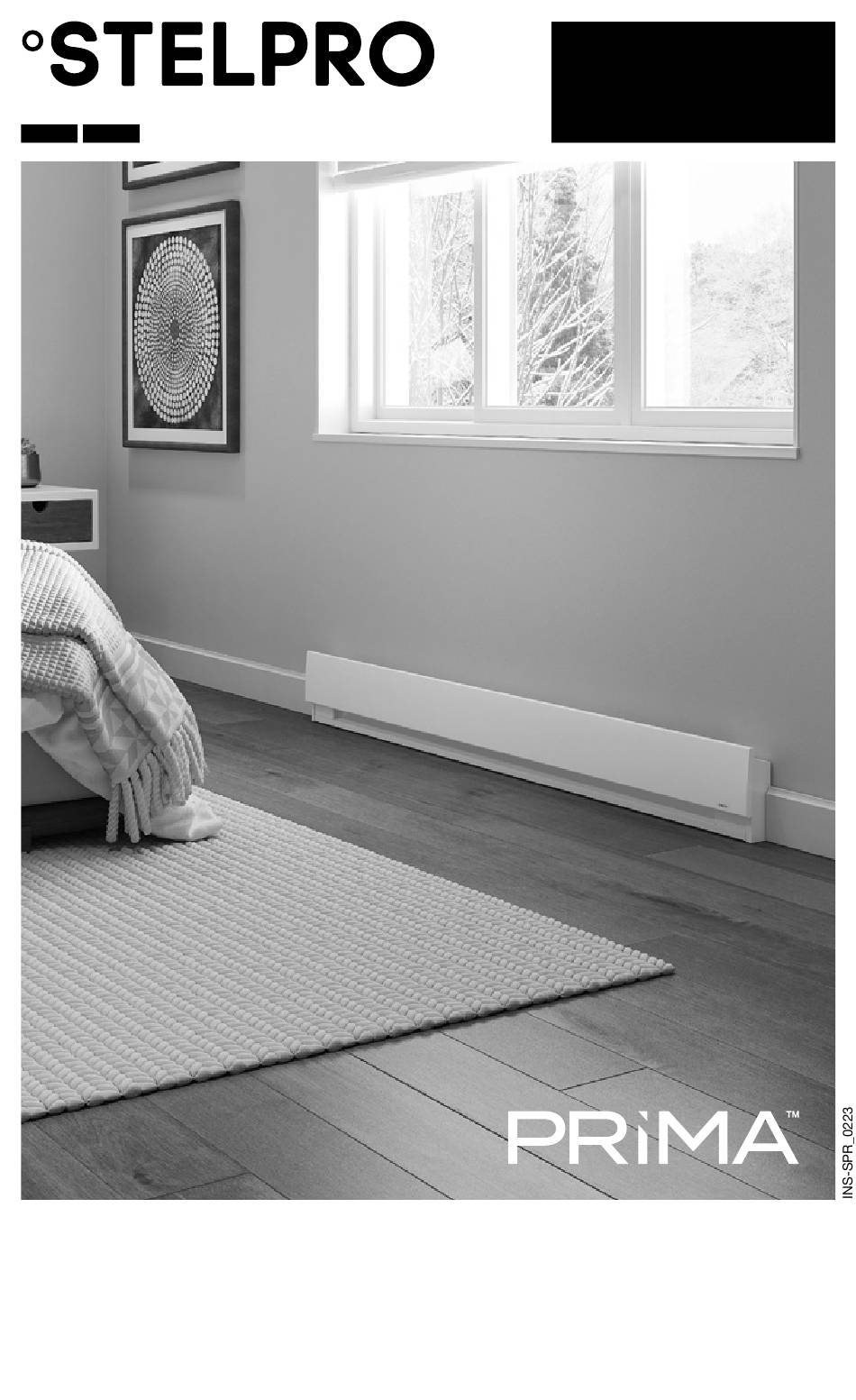

- Page 1 OWNER’S MANUAL SPR ASPR HIGH-END COMPACT BASEBOARD THANK YOU FOR YOUR PURCHASE! NEED ASSISTANCE? CONTACT ºSTELPRO’S CUSTOMER SERVICE. WWW.STELPRO.COM 1-844-STELPRO...
- Page 2 IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before using this heater. 2. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
- Page 3 INSTALLATION WARNINGS 1. Do not install heater in any position other than as shown in this manual. 2. Wiring procedures and connections should be done in accordance with the National Elec- trical Code (NEC) and local codes. 3. To reduce the risk of fire, do not store or use gasoline or other flammable vapors and liquids in the vicinity of the heater.
- Page 4 INSTALLATION – CONTINUED ELECTRICAL CONNECTION WARNING: Turn off the power supply. 1. Open the shipping box [B] and place it in front of the desired location, as shown at the bottom of the page. Leave the baseboard [C] in its box to protect it during installation. 2.
- Page 5 INSTALLATION – CONTINUED WIRING DIAGRAMS Left junction box Right junction box Element (Red wire) ONE BASEBOARD Right Left Element Element junction junction (Red wire) (Red wire) MULTIPLE BASEBOARDS...
- Page 6 1. Take the front panel [N] from the box and center it above the baseboard, making sure to place the °STELPRO logo in the lower righthand corner. 2. Hang the front panel on the top of the baseboard, then pivot it down.
- Page 7 OPERATION AND MAINTENANCE WARNING: The baseboard must be properly installed before it is used. Fins are sharp and may cause cuts; do not touch them. 1. Once a year, or as required, use a damp cloth and non-abrasive dish soap to remove any dust build-up.
- Page 8 (other than that prescribed by °STELPRO) or a use other than that for which the unit was designed; 3) a natural disaster or an event out of °STELPRO’s control, including, but not limited to, hurricanes, tornadoes, earthquakes, terrorist attacks, wars, overvoltage, flooding, water damages, etc.
