user's guide
Ashc series

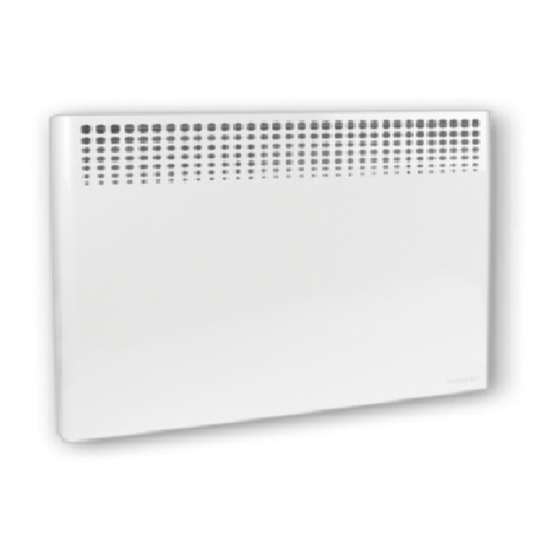

convector
wArning
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future refer-
ence. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product.
This product must be installed by a qualified person and connected by a certified electrician, according to the electrical and building codes effec-
tive in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit's nameplate.
This unit must be grounded.
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative). Use this heater only as described in this
manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. Do not use outdoors.
Recommended heating capacity:
1.25 W/cubic foot (0.03 m³).
It corresponds to 10 W/square foot (0.09 m²) based on a standard ceiling height of 8 feet (2.44 m). The recommended capacity is usually sufficient for nor-
mal heating needs. Please note that the insulation quality of walls and windows are some of the factors that influence heat losses, which modify the required
capacity to heat a room. If needed, refer to a specialist who will be able to calculate these heat losses and optimize the required capacity or consult the "Online
heating calculation" section of the Stelpro Design Web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to
install several units instead of one. For example, 2 X 1000 W rather than 1 X 2000 W.
For further information or to consult this guide online, please visit our website at www.stelpro.com
replacement component list included
important instructions
this unit
complies with
the csa and
ul standards
INSASHC0613
