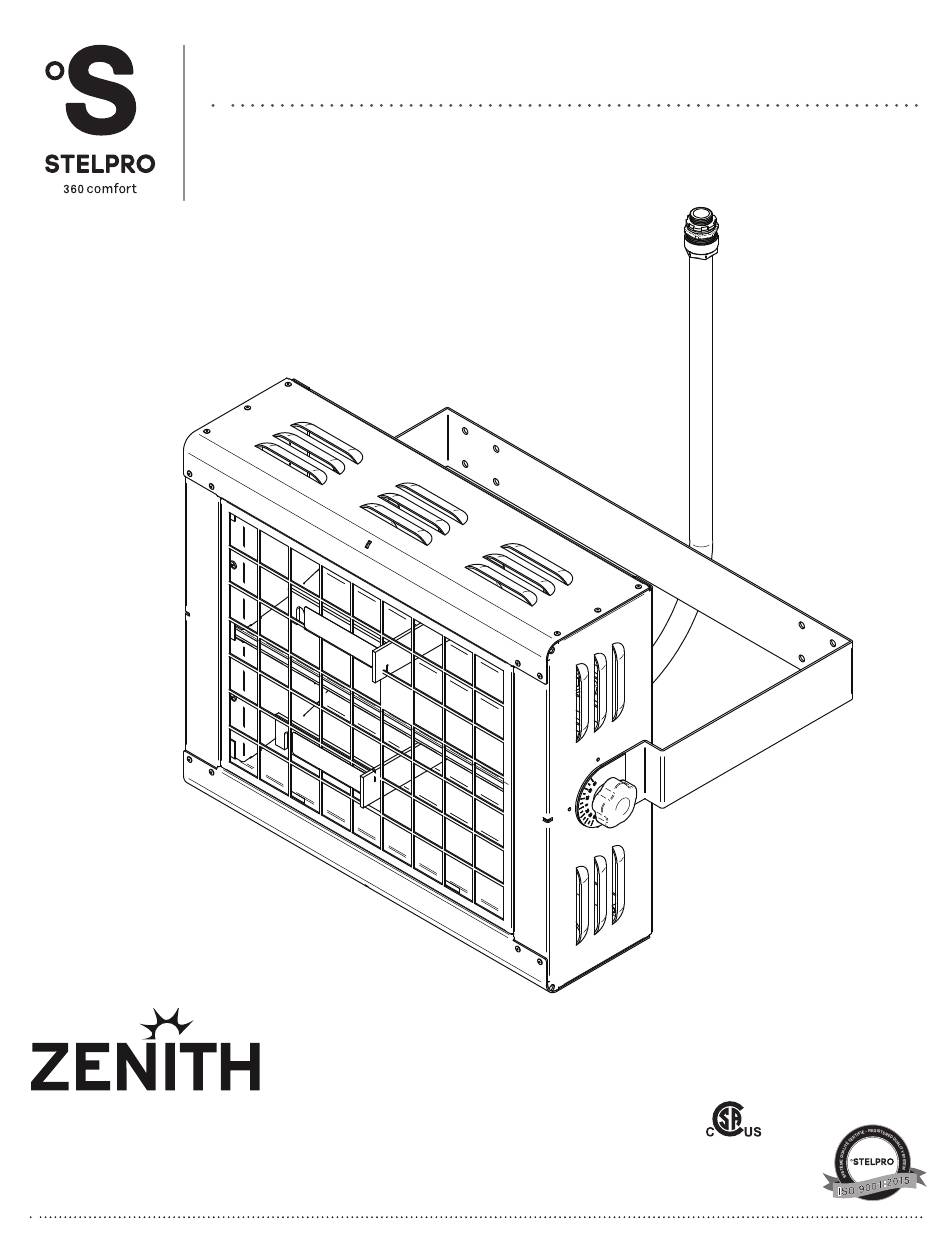

- Page 1 USER’S GUIDE ASIRH SERIES INFRARED RADIATOR HEATER REPLACEMENT COMPONENT LIST INCLUDED RADIATEUR INFRAROUGE INFRARED RADIATOR This unit complies with CSA and UL standards For further information or to consult this guide online, please visit our web site: www.stelpro.com INSASIRH0117...
- Page 2 SPECIFICATIONS IMPORTANT INSTRUCTIONS AVERTISSEMENT Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product.
- Page 3 TECHNICAL DRAWINGS TECHNICAL DRAWINGS 1500 W + 2000 W MODELS 4000 W MODEL 21 1/4" 540mm 12 1/4" 311mm 14 15/16" 380mm 21 5/8" 5 5/8" 550mm 143mm 19" 2 11/16" 483mm 69mm 2 5/8" 66mm 15 7/8" 403mm 7 15/16" 202mm SIDE FRONT...
- Page 4 The 1500 W at 120 V, 2000 W / 1600 W at 240 V / 208 V & 4000 W / 3200 W at 240 V / 208 V units can be controlled by the Stelpro electronic dimmer that is equipped with a timer (not included).
- Page 5 INSTALLATION 4000 W / 3200 W AT 240 V / 208 V & 4200 W AT 347 V UNITS It is very important to respect the clearance from flammable material, as mentioned below. INSTALLATION MURALE INSTALLATION AU PLAFOND WALL INSTALLATION CEILING INSTALLATION minimum minimum...
- Page 6 INSTALLATION, OPERATION & MAINTENANCE REPLACEMENT OF AN INFRARED LAMP Handle carefully; there are sharp aluminum pieces inside. 1. Before installing or replacing an infrared lamp, switch off the appropriate circuit breaker in the electrical service panel. 2. Remove the back cover (1). 3.
- Page 7 REPLACEMENT COMPONENT LIST REPLACEMENT COMPONENT LIST REF. # PART # DESCRIPTION Assembled case for ASIRH2002W* model M-SIRH100ABK Assembled case for ASIRH4002W* model M-SIRH200ABK Assembled case for ASIRH4203W* and ASIRH6002W* model M-SIRH300ABK Back cover with louvers (ASIRH2002W) M-SIRH105ZBK Back cover without louvers (ASIRH2002WR) M-SIRH113ZBK Back cover with louvers (ASIRH4002W) M-SIRH205ZBK...
- Page 8 Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part.
