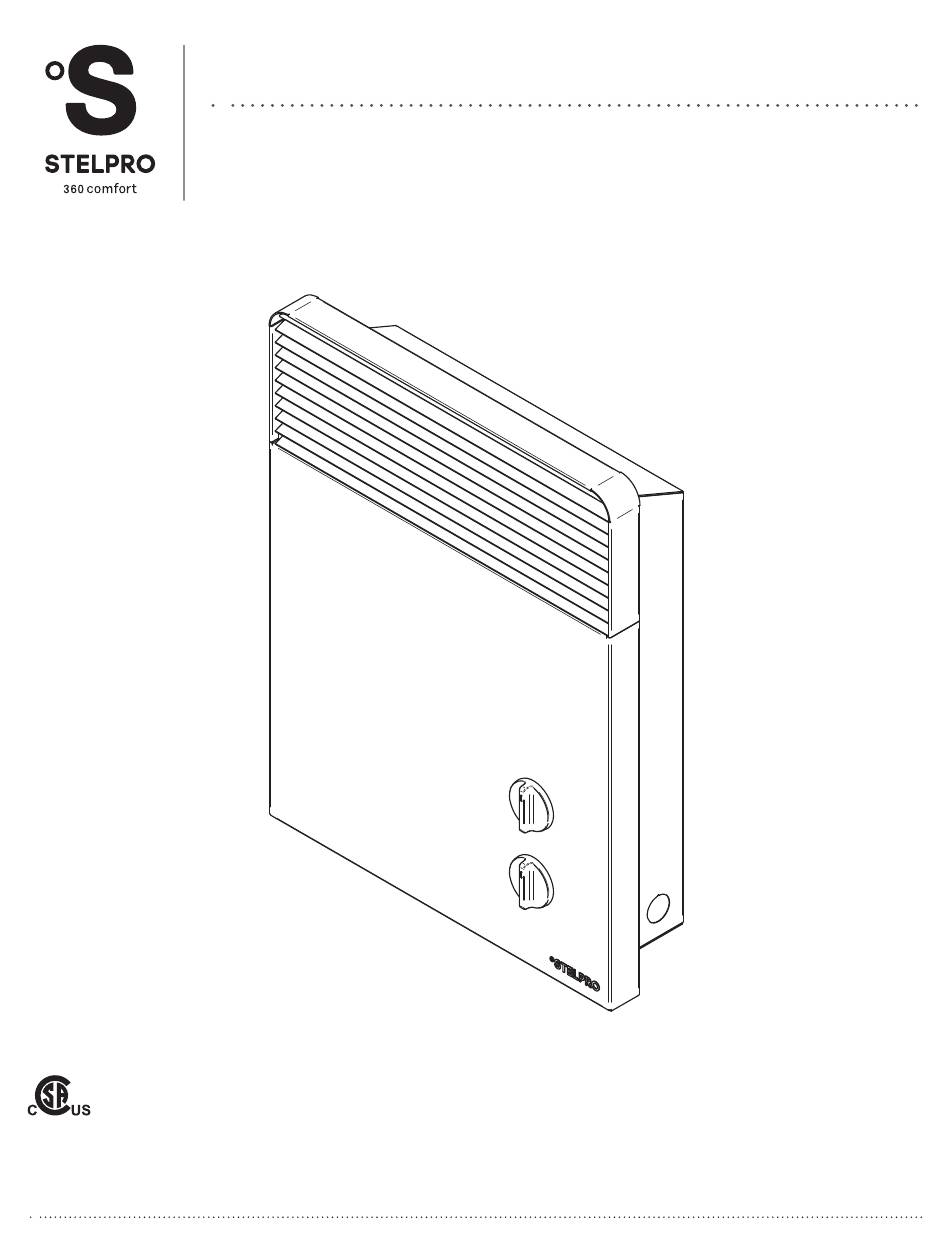

USER'S gUidE
this unit
complies with
the csa and
ul standards
For further information or to consult this guide online, please visit our website at www.stelpro.com
ASiL2030 SERiES
Bathroom fan heater
replacement component list included
DESSIN TECHNIQUE / TECHNICAL DRAWING
05/12/2011
DATE:
DESSINATEUR
A. DESMARAIS
/ DRAFTER:
APPARE IL
SIL2030
/ UNIT:
MIS À JOUR
2013-09-16 PP
UPDATED:
INSASIL20300514
Advertisement
Table of Contents
Related Manuals for Stelpro ASIL2030 Series
Summary of Contents for Stelpro ASIL2030 Series
- Page 1 SIL2030 DATE: / UNIT: this unit MIS À JOUR DESSINATEUR complies with A. DESMARAIS 2013-09-16 PP / DRAFTER: UPDATED: the csa and ul standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSASIL20300514...
- Page 2 If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to install several units instead of one.
- Page 3 SpEcificAtionS, tEchnicAL dRAwingS & inStALLAtion specifications BathRoom Fan heateR VOLTS 240 V WATTS 1000/2000 W WEIGHT 12.1 lb / 4.9 kG DEPTH 4” / 101 MM WIDTH 13 3/8” / 340 MM HEIGHT 17 3/8” / 441 MM technical drawings 13 3/8"...
- Page 4 opERAtion & MAintEnAncE operation Warning: the heater must be properly installed before it is used. thermostat features · Maintains a stable room temperature. · Highest setting offers continuous operation of heater. · Thermostat settings correspond to desired room temperatures and ensure the cycling of the heater. ·...
- Page 5 tRoUbLEShooting & REpLAcEMEnt coMponEnt LiSt trouBleshooting pRoBlem deFectiVe paRt oR paRt to checK • Defective thermostat/timer or wrong thermostat/timer setting • Open circuit breaker or fuse The unit does not work • The thermal protection has been activated • Faulty connections •...
- Page 6 Moreover, it does not cover the cost of disconnection, transport, and installation. The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the discretion of stelpro. Any parts replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty period.
