Summary of Contents for Breezesta SKYLINE SK-0405-48

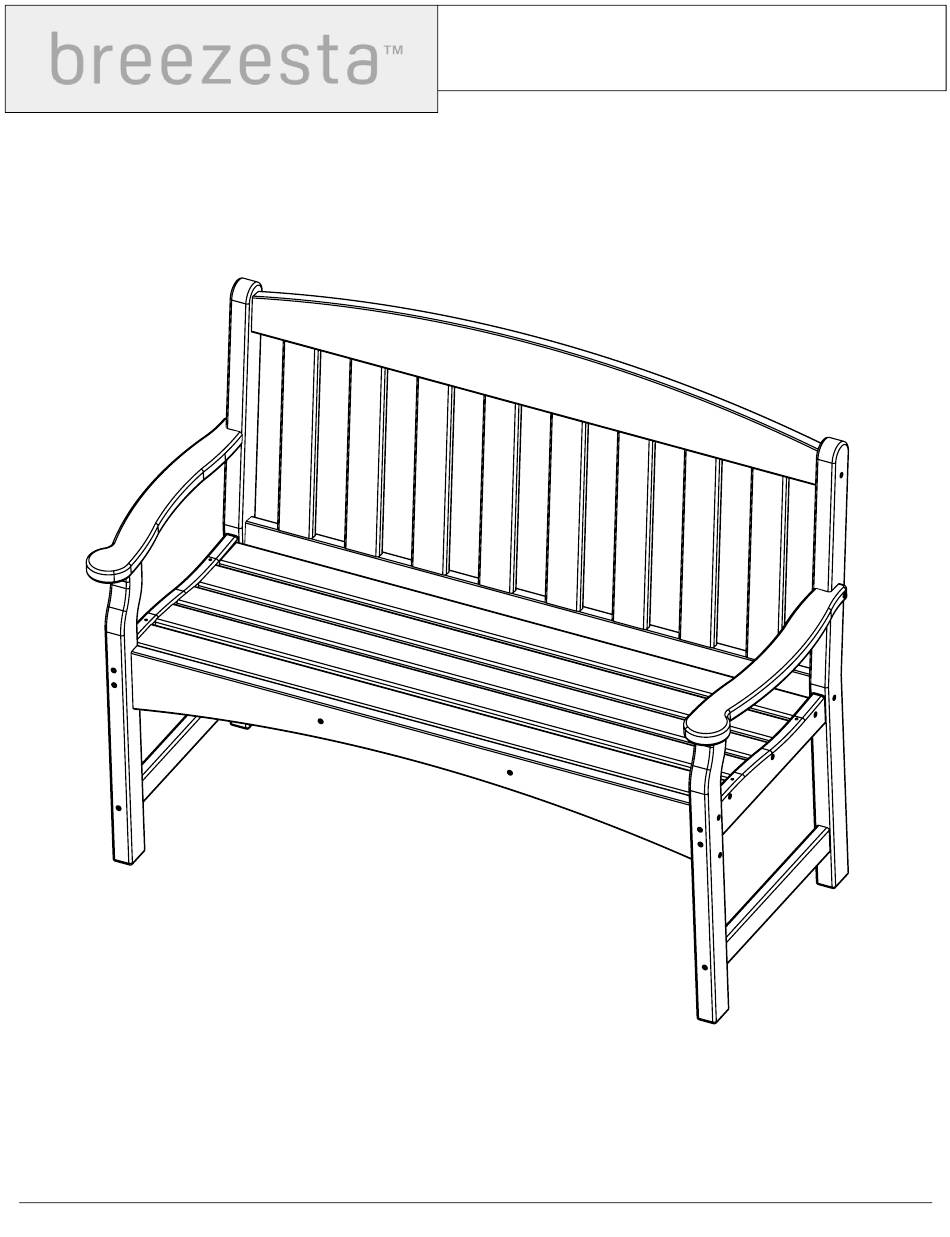

- Page 1 SKYLINE GARDEN BENCH SK-0405-36, SK-0405-48, SK-0405-60 REV00-1/19 SK-0405 Assembly...
- Page 2 PARTS PART DESCRIPTION PART NO. QTY 36" QTY 48" QTY 60" BACK ASSEMBLY SA-00170 BACK ASSEMBLY SA-00171 BACK ASSEMBLY SA-00173 36IN SEAT SLAT SS-33.562 48IN SEAT SLAT SS-45.562 60IN SEAT SLAT SS-57.562 FRONT RAIL 36" PRT-00318 FRONT RAIL 48" SA-00197 FRONT RAIL 60"...
- Page 3 Please read entire instructions before beginning Attach Parts A & C between Parts E & F using Hardware c 36" x 1 48" x 2 60" x 3 36" x 1 48" x 2 60" x 3 Connect Part(s) D to the prevoius assembly as shown 36"...
- Page 4 Mortise Slide one end of Parts B into the mortise as shown & flex it into the mortise on the other end Secure the assembly using 36" x 5 48" x 10 Hardware a & b as shown 60" x 15 SK-0405 Assembly...
