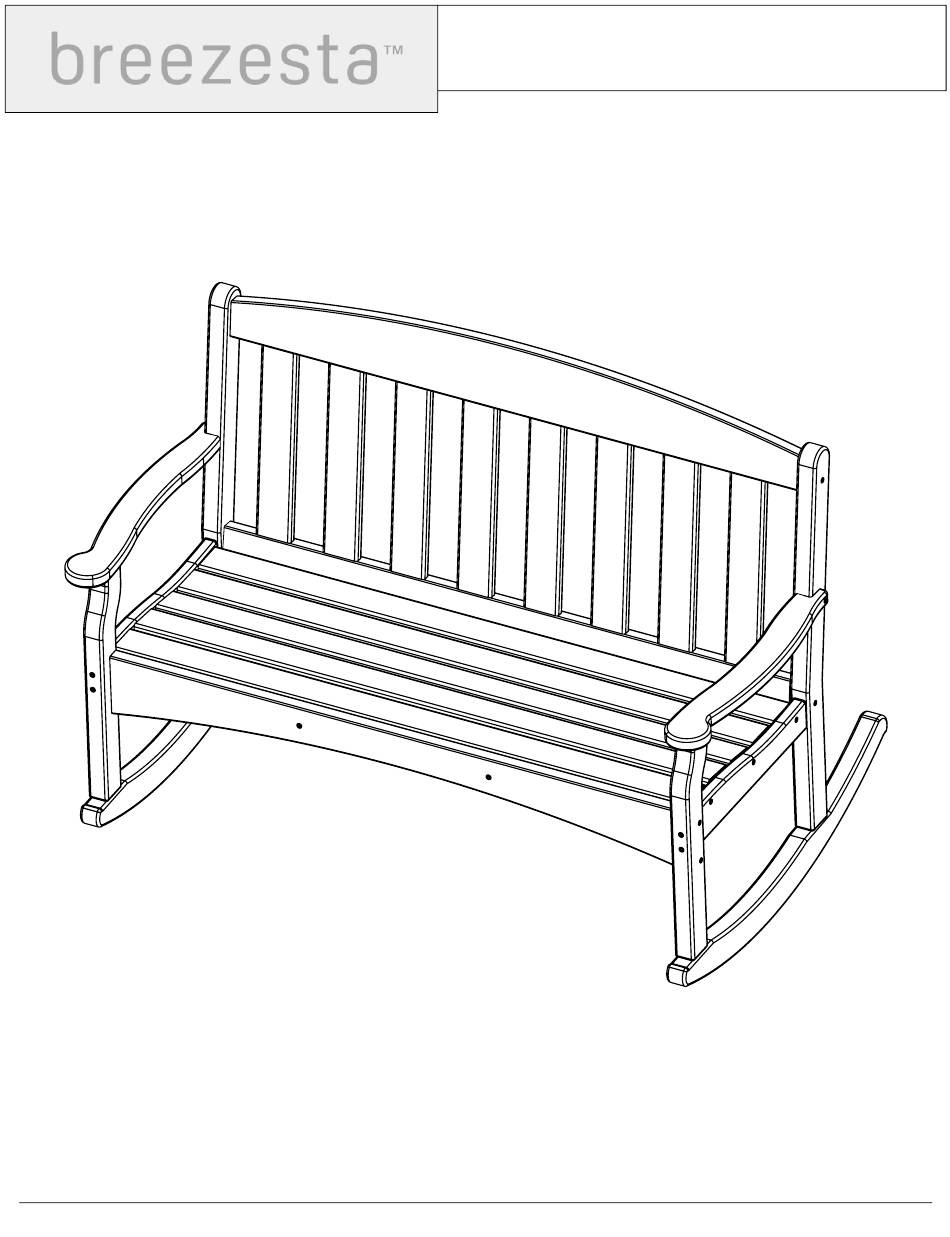

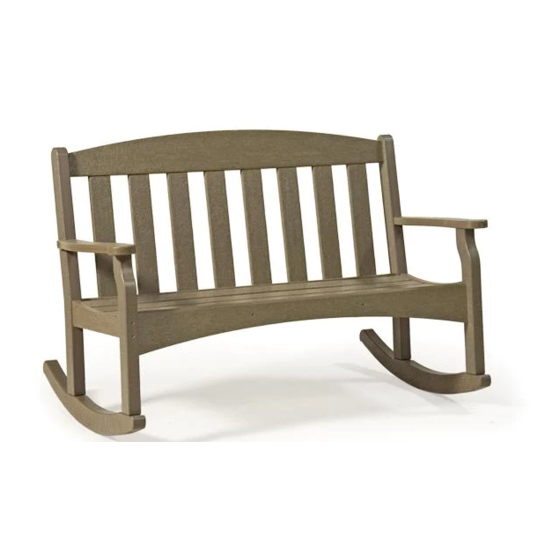

- Page 1 SKYLINE ROCKING BENCH SK-0404-36, SK-0404-48, SK-0404-60 REV00-1/19 SK-0404 Assembly...
- Page 2 QTY 36" QTY 48" QTY 60" #8 X 1-1/2" TORX SCREW H-0000-S815 #8 X 2" TORX SCREW H-0000-S82 #8 X 2-1/2" TORX SCREW H-0000-S825 1/4-10 x 3" LAG H-0000-S103 T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet SK-0404 Assembly...
- Page 3 Parts E & F using Hardware c 36" x 1 48" x 2 60" x 3 36" x 1 48" x 2 60" x 3 Connect Part(s) E to the prevoius assembly as shown 36" x 1 48" x 2 60" x 3 SK-0404 Assembly...
- Page 4 & flex it into the mortise on the other end 36" x 5 48" x 10 60" x 15 Secure the assembly using Hardware a & b as shown Attach Parts D as shown Part D Placement SK-0404 Assembly...
