Summary of Contents for Breezesta SK-0403

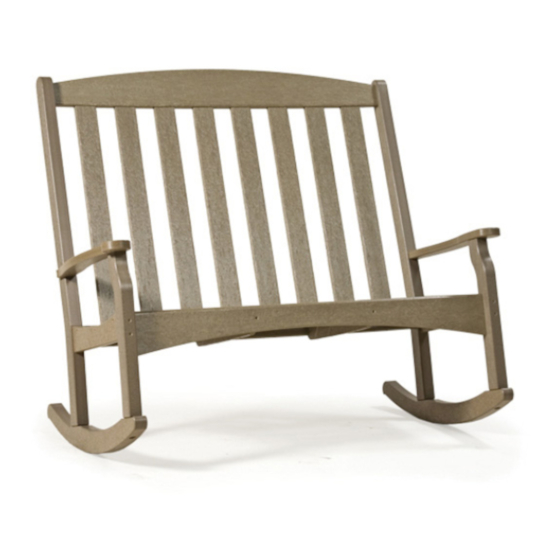

- Page 1 SKYLINE DOUBLE HIGH BACK ROCKER SK-0403 REV01-1/19 SK-0403 Assembly...
- Page 2 DESCRIPTION PART NO. #8 X 1-1/2" TORX SCREW H-0000-S815 #8 X 2" TORX SCREW H-0000-S82 #8 X 2-1/2" TORX SCREW H-0000-S825 1/4"-10 X 3" LAG SCREW H-0000-S103 T20 & T20 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet SK-0403 Assembly...
- Page 3 Please read entire instructions before beginning Attach Parts A & B between Parts D & E using Hardware c Attach Parts C using the same hardware as Step 1 SK-0403 Assembly...
- Page 4 Place one end of the Parts G into the mortise & flex the other into the mortise on the other end Secure Parts G with Hardware a & b Attach Parts F to the previous assemblies using Hardware d SK-0403 Assembly...
