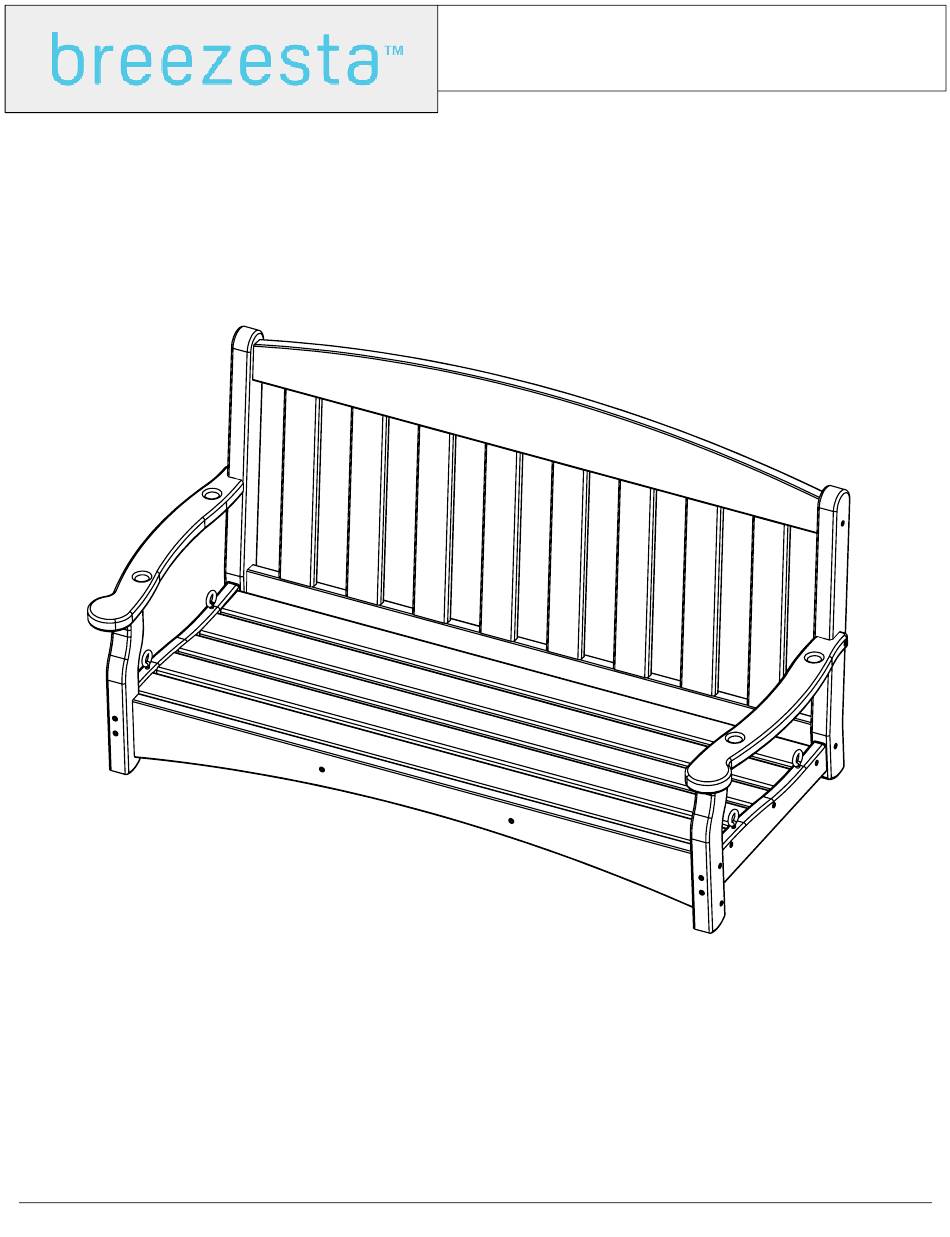

- Page 1 SKYLINE SWINGING BENCH SK-0402-36, SK-0402-48, SK-0402-60 REV01-6/19 SK-0402 Assembly...
- Page 2 PARTS PART DESCRIPTION PART NO. QTY 36" QTY 48" QTY 60" BACK ASSEMBLY SA-00170 BACK ASSEMBLY SA-00171 BACK ASSEMBLY SA-00173 36IN SEAT SLAT SS-33.562 48IN SEAT SLAT SS-45.562 60IN SEAT SLAT SS-57.562 FRONT RAIL 36" PRT-00318 FRONT RAIL 48" SA-00197 FRONT RAIL 60"...
- Page 3 Please read entire instructions before beginning Attach Parts E & F to Parts A & C using Hardware c 36" x 1 48" x 2 60" x 3 Connect Part(s) D to the prevoius assembly as shown 36" x 1 48"...
- Page 4 Mortise Slide one end of Parts B into the mortise as shown & flex it into the mortise on the other end 36" x 5 48" x 10 60" x 15 Secure the assembly using Hardware a & b as shown Install the chain as shown SK-0402 Assembly...
