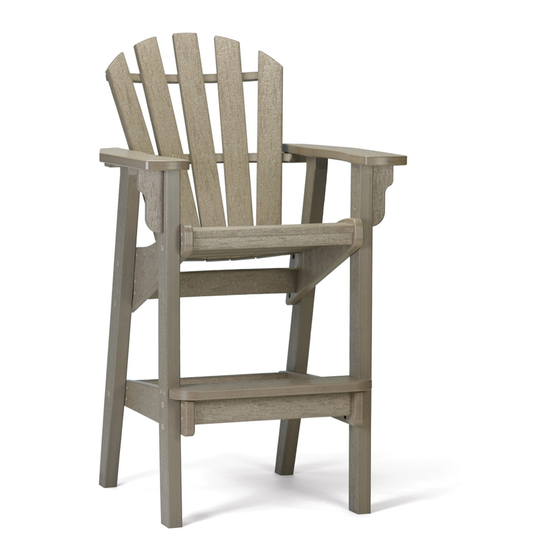

- Page 1 COASTAL BAR CHAIR BH-0905 REV01-4/19 BH-0905 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 2 #8 X 2-1/2" TORX SCREW H-0000-S825 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 DOUBLE SCREW H-0000-DS T20 & T25 TORX BIT H-0000-CTD #8 X 3" TORX SCREW H-0000-S83 Suggested Tools: Drill, Plastic Mallet BH-0905 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 3 Attach Part D to the previous assemblies using Hardware b Repeat Steps 1 & 2 with Parts A, C, F & D Attach Parts H & I to the previous assemblies using Hardware d BH-0905 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 4 Drop Part G into place and secure it with Hardware g as shown Slide part J into place and connect it as shown BH-0905 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
