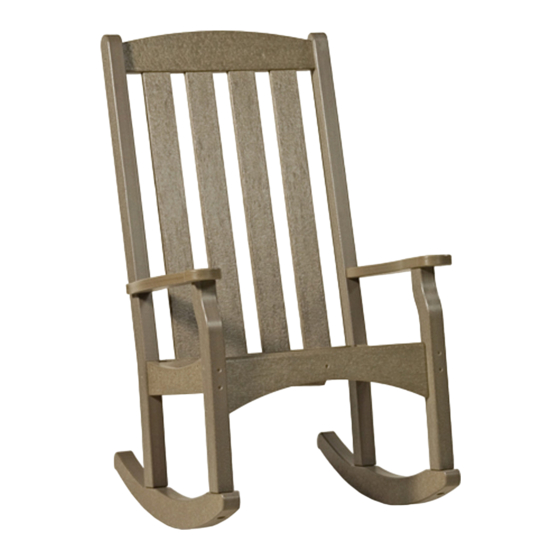

- Page 1 SKYLINE HIGH BACK ROCKER SK-0400 REV00-1/19 SK-0400 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 2 PARTS PART DESCRIPTION PART NO. BACK ASSEMBLY SA-00168 FRONT RAIL PRT-00293 SEAT SUPPORT PRT-00294 LEFT SIDE ASSEMBLY SA-00166 RIGHT SIDE ASSEMBLY SA-00167 ROCKER PRT-00161 STANDARD SEAT SLAT 21.25 SS-20.25 HARDWARE PART DESCRIPTION PART NO. #8 X 1-1/2" TORX SCREW H-0000-S815 #8 X 2"...
- Page 3 Please read entire instructions before beginning Attach Parts A, G, & B to Part D using Hardware a to connect Parts G and Hardware c elsewhere Attack Part E using the same hardware as Step 1 SK-0400 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 4 Connect Part C using Hardware a, b & c Place Parts F as shown to the previous assemblies using Hardware d Part F placement SK-0400 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
