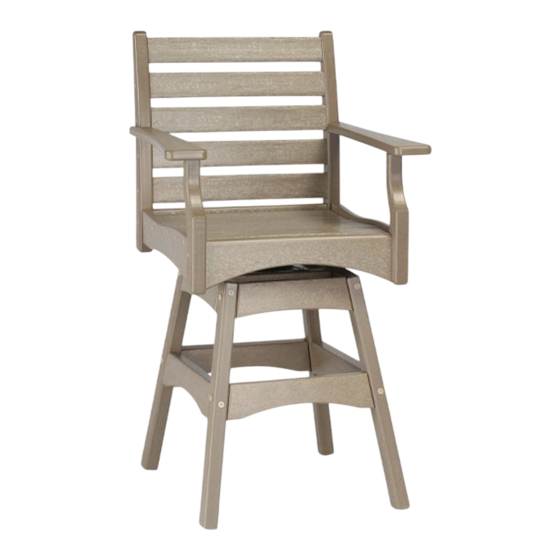

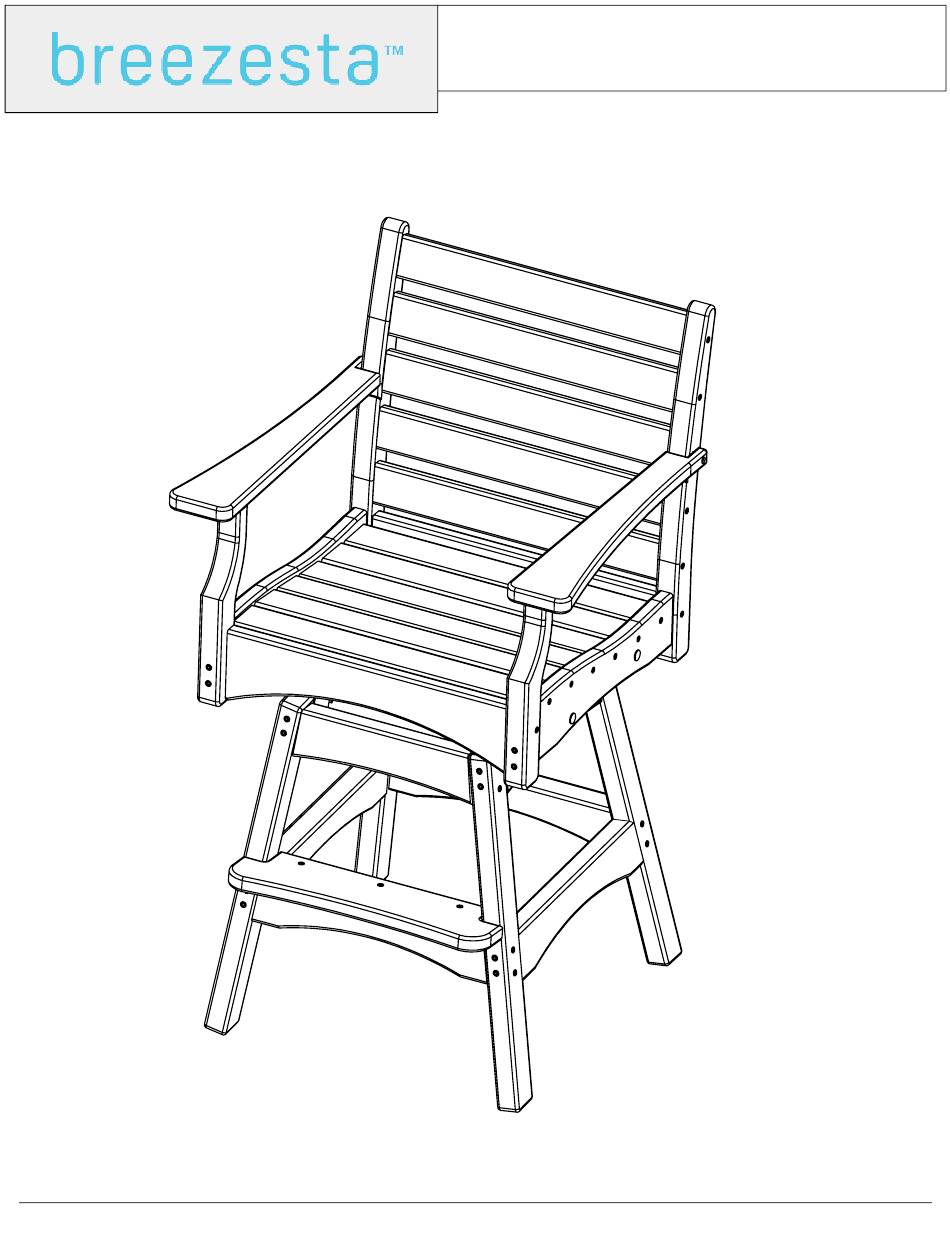

- Page 1 PIEDMONT BAR SWIVEL CHAIR PT-0603 REV03-6/19 PT-0603 Assembly...
- Page 2 PARTS PART DESCRIPTION PART NO. BASE SIDE ASSEMBLY SA-00231 SWIVEL SUPPORT PRT-00411 BASE SPREADER PRT-00410 FOOTREST PRT-00428 BOTTOM BASE SPREADER PRT-00425 SEAT ASSEMBLY SA-00229 LEFT ARM PRT-00417 RIGHT ARM PRT-00418 LEFT FRONT LEG PRT-00415 RIGHT FRONT LEG PRT-00416 FRONT RAIL PRT-00414 BACK ASSEMBLY SA-00227...
- Page 3 Please read entire instructions before beginning Attach Parts C & E to A using Hardware c & repeat for the 2nd side Attach Part D with Hardware b While upside down press, or hammer, Parts B into the grooves & attach them using Hardware d NOTE: Align installed hardware with the...
- Page 4 Connect the previous assemblies to Part K using Hardware b Connect the assembly from Step 7 to Part F using the hardware shown Note: Make sure Step 9 is connected on the front of Part F as shown Side View Attach Part L using the hardware shown Attach hardware j underneath the previous assembly as shown...
