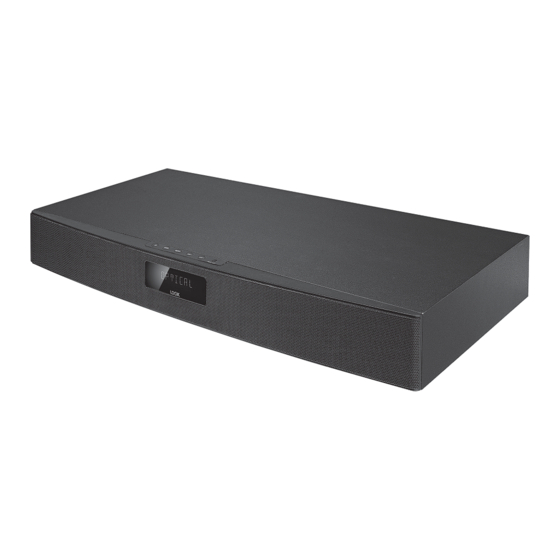

Instruction Manual
Sound Stage
L37SPB14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sound Stage and is the answer not in the manual?

Questions and answers

Related Manuals for Logik Sound Stage

Summary of Contents for Logik Sound Stage

  • Page 1 Instruction Manual Sound Stage L37SPB14...

  • Page 2: Table Of Contents

    Contents Safety Warnings ..........................3 Unpacking ............................5 Product Overview ..........................6 Front View .................................. 6 Top View ..................................6 Rear View ................................... 6 Remote Control ..........................7 Remove the Plastic Strip from the Remote Control ..............7 Battery Replacement for the Remote Control ................8 Remote Control Operation Range ....................9 Placing TV or Vision Device ......................9 Connections ..........................10...

  • Page 3: Safety Warnings

    Safety Warnings Safety • Read all the instructions carefully before using the unit and keep them for future • Always disconnect the unit from the mains reference. supply before connecting/ disconnecting other devices or moving the unit. • Retain the manual. If you pass the unit onto a third party make sure to include this • Unplug the unit from the mains socket manual.
  • Page 4 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

  • Page 5: Unpacking

    Thank you for purchasing your new Logik Sound Stage. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

  • Page 6: Product Overview

    Product Overview Front View 1. Speakers 4. Remote Control Sensor 2. Power Indicator 5. Subwoofer 3. Display Top View SOURCE / PAIR VOL – VOL + MP3 LINK 1 2 3 4 5 6 4. VOL – Button Button 2. SOURCE Button 5.

  • Page 7: Remote Control

    Remote Control SOURCE VOL + PAIR VOL – MUTE 6. EQ Button Button Switch the unit between On and Select the preset equaliser. Standby mode. 7. VOL +/– Buttons 2. SOURCE Button Adjust the volume. Select the input source. 8. PAIR Button 3.

  • Page 8: Battery Replacement For The Remote Control

    Battery Replacement for the Remote Control The remote control requires a CR2025, 3V Lithium battery. 1. Slide and hold the battery release tab in the direction of the arrow. 2. Pull out the battery holder and remove the old battery. 3.

  • Page 9: Remote Control Operation Range

    Remote Control Operation Range • The remote control sensor at the front unit is sensitive to the remote control’s commands up to a maximum of 6 metres away and within a maximum of a 40° arc. • Please note that the operating distance may vary depending on the brightness of the room.

  • Page 10: Connections

    Connections Using the OPTICAL Connection Use an optical cable (not included) to connect the TV’s optical output socket to the unit’s OPTICAL socket. Before inserting the optical cable, remove the OPTICAL socket cover. OPTICAL cable (not included) OPTICAL OPTICAL Rear view of the unit If there is no sound output and the display shows PLEASE CHANGE YOUR SOURCE DEVICE TO PCM MODE UNDER AUDIO OUTPUT SETTING, ensure the audio setting of the input source (e.g.

  • Page 11: Using The Mp3 Link Connection

    Using the MP3 LINK Connection Use the 3.5mm to 3.5mm audio cable to connect the audio device’s headphone socket to the unit’s MP3 LINK socket. SOURCE / PAIR VOL – VOL + MP3 LINK Top view of the unit 3.5mm to 3.5mm audio cable Audio device Connecting to the Mains Supply...

  • Page 12: General Operation

    General Operation When you first connect the unit to the mains socket, the unit will be in Standby mode. The POWER Indicator will light up red. • Press the Button to switch the unit on. The display will show a greeting message HELLO and then the last used mode.

  • Page 13: Bluetooth® Operation

    Bluetooth® Operation You can listen to tracks from a media device if it is connected to the unit via Bluetooth. • The operational range between the main unit and a Bluetooth device is approximately 8 meters. • Before you connect a Bluetooth device to this unit, familiarize yourself with the Bluetooth capabilities of the device.

  • Page 14: Listen To Music From Bluetooth Device

    Listen to Music from Bluetooth Device • If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can listen to the music stored on the device through the player. • If the device also supports Audio Video Remote Control Profile (AVRCP), you can use the player’s remote control to play music stored on the device.

  • Page 15: Specifications

    Problem Solution Loud hum or noise is The plugs and sockets are dirty. Wipe them with a cloth slightly heard. moistened with an appropriate non-abrasive cleaning solution. The remote control • Use the remote control near the unit. does not function. • Point the remote control at the remote control sensor on the unit.
  • Page 16 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.
