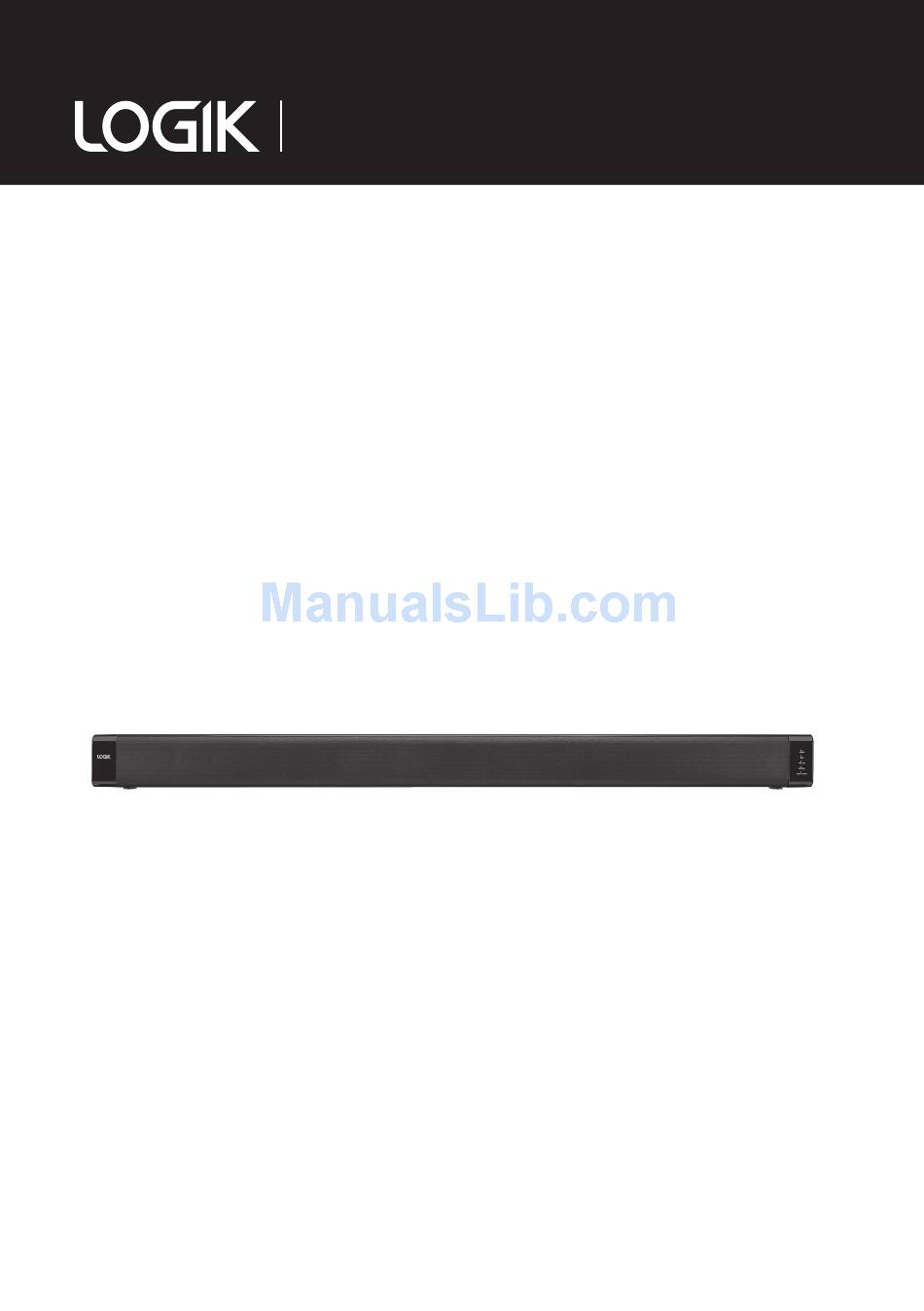

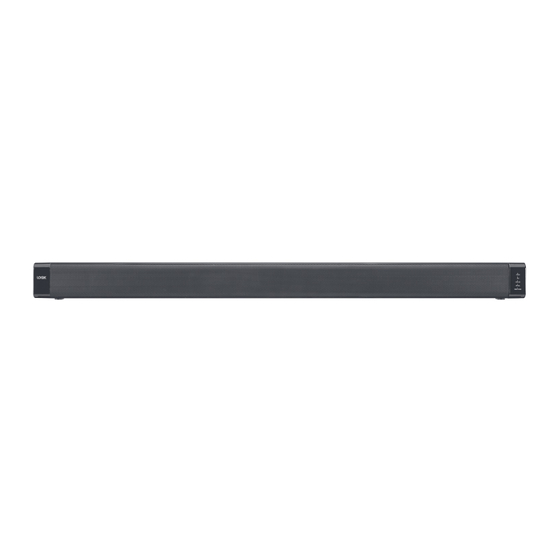

  • Page 1 Instruction Manual Soundbar L32S14...

  • Page 2: Table Of Contents

    Contents Safety Warnings ..........................3 Unpacking ............................5 Product Overview ..........................6 Front View .................................. 6 Side View ..................................6 Rear View ................................... 6 Remote Control ..........................7 Remove the Plastic Strip from the Remote Control ..............7 Battery Replacement for the Remote Control ................8 Remote Control Operation Range ....................9 Wall Mounting ..........................9 Connections ..........................11...

  • Page 3: Safety Warnings

    Safety Warnings Safety • Read all the instructions carefully before using the unit and keep them for future • Always disconnect the unit from the mains reference. supply before connecting/ disconnecting other devices or moving the unit. • Retain the manual. If you pass the unit onto a third party make sure to include this • Unplug the unit from the mains socket manual.
  • Page 4 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

  • Page 5: Unpacking

    Thank you for purchasing your new Logik Soundbar. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

  • Page 6: Product Overview

    Product Overview Front View 3. POWER / AUX / MP3 LINK / OPTICAL/ 1. Speakers MOVIE/MUSIC Indicators 2. Remote Control Sensor Side View Rear View 1. MP3 LINK Socket 1. OPTICAL Socket /SOURCE Button 2. AUX (L/R) Sockets • Switch the unit between On and 3.

  • Page 7: Remote Control

    Remote Control SOURCE VOL + VOL – MUTE 4. SOURCE Button Button Switch the unit between On and Select the input source. Standby. 5. MUTE Button 2. VOL +/– Buttons Silence the unit or restore the sound. Adjust the volume. 3.

  • Page 8: Battery Replacement For The Remote Control

    Battery Replacement for the Remote Control The remote control requires a CR2025, 3V Lithium battery. 1. Slide and hold the battery release tab in the direction of the arrow. 2. Pull out the battery holder and remove the old battery. 3.

  • Page 9: Remote Control Operation Range

    Remote Control Operation Range • The remote control sensor at the front unit is sensitive to the remote control’s commands up to a maximum of 6 metres away and within a maximum of a 40° arc. • Please note that the operating distance may vary depending on the brightness of the room.
  • Page 10 3. Fix two screws (not included) onto the wall. They should be parallel to each other. The distance between the two screws should be 720 mm. 720 mm 4. Leave a 5 mm gap between the wall and the screw’s head. Lift the unit with the attached wall brackets over the heads of the screws and slot into place.

  • Page 11: Connections

    Connections Using the OPTICAL Connection Use an optical cable (not included) to connect the TV’s optical output socket to the unit’s OPTICAL socket. Before inserting the optical cable, remove the OPTICAL socket cover. OPTICAL cable (not included) Rear view of the unit If there is no sound output and the OPTICAL indicator flashes, ensure the audio setting of the input source (e.g.

  • Page 12: Using The Mp3 Link Connection

    Using the MP3 LINK Connection Use the 3.5mm to 3.5mm audio cable to connect the audio device’s headphone socket to the unit’s MP3 LINK socket. 3.5mm to 3.5mm audio cable Audio device Side view of the unit Connecting to the Mains Supply •...

  • Page 13: General Operation

    General Operation When you first connect the unit to the mains socket, the unit will be in Standby. The POWER indicator will light up red. Press /SOURCE on the unit or • on the remote control to switch the unit on. The status indicator of the last used mode will light up.

  • Page 14: Maintenance

    Maintenance Ensure the unit is fully unplugged from the mains socket before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. • Do not spray aerosol at or near the unit.

  • Page 15: Specifications

    Specifications Model L32S14 Mains Supply AC 220-240V ~50/60Hz Power Consumption Speaker Output Power 20Wrms x 2 Net Weight 1.5kg Dimension 806mm (W) x 60mm (D) x 62mm (H) Features and specifications are subject to change without prior notice.
  • Page 16 For advice on where to purchase accessories, please contact the store where you purchased your equipment. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK IB-L32S14-140828V3...
